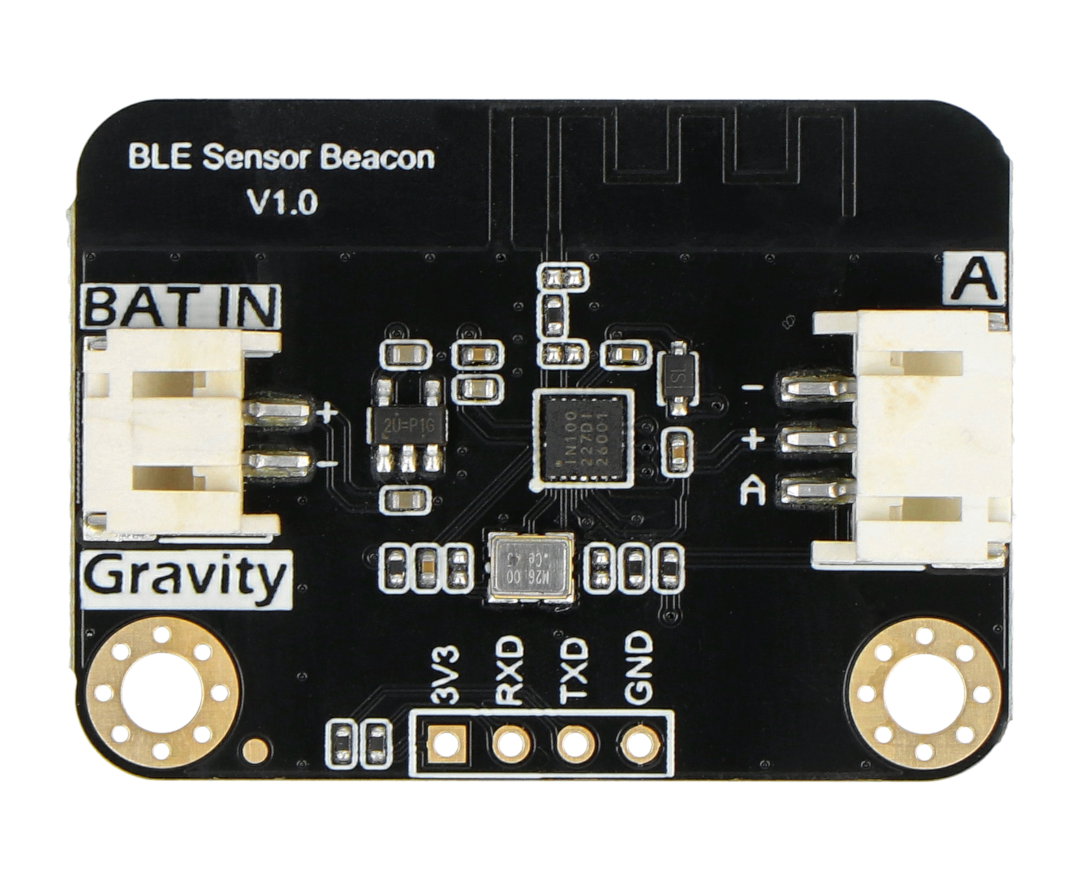

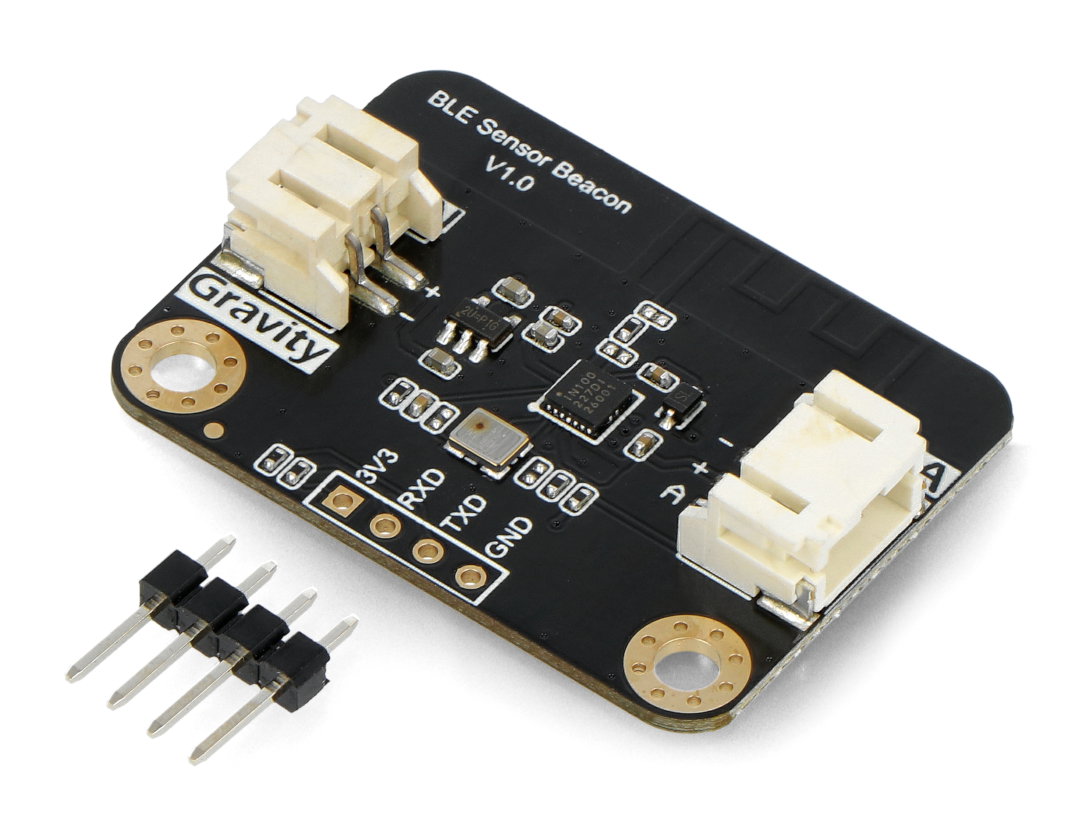

Product description: Gravity - BLE Sensor Beacon - Bluetooth module - 5 pcs. - DFRobot TEL0149
A set of five Beacon BLE modules with a built-in 11-bit analog-to-digital converter . The module reads data from connected sensors and then sends them to a device equipped with Bluetooth, such as a smartphone or tablet. It is compatible with Gravity series sensors . Works with iBeacon, Eddystone and other known protocols. The module supports low-power BLE 5.3 technology. BLE Sensor Beacon can be used in the construction of a smart warehouse, factory or office.
To configure the BLE Sensor Beacon modules, use the USB-TTL 3.3 V converter . The manufacturer provides a detailed user guide .
Gravity - BLE Sensor Beacon - Bluetooth module - 5 pcs. - DFRobot TEL0149.
The set also includes goldpin strips.
Module technical specification
- Manufacturer: DFRobot
- Connector Standard: Gravity
- Operating voltage: 3.3V to 5.5V
- Current consumption: <2mA
- Communication: Bluetooth Low Energy 5.3
- Supported sensors: digital and analog (1.2 V to 3.3 V)
- Dimensions: 27 x 33.5mm
Kit contents
- Gravity - BLE Sensor Beacon - Bluetooth sensor - 5 pieces
- Goldpin strip 1x4 - 5 pieces
