Product description: Step down converter 1.8 V - 5.1 V 18 A 60 W - adjustable - DFRobot DFR1025
The DC-DC converter from DFRobot lowers the input voltage in the range from 9 V to 15 V and allows you to obtain a voltage from 0.6 V to 5.1 V. What's more - the module also increases the output current to 18 A , so it can be used to control a 5 m long RGB WS2812 LED strip or any other system requiring low voltage and high current. The module is also equipped with numerous security functions to ensure stable operation.
Also check the user guide prepared by the manufacturer.

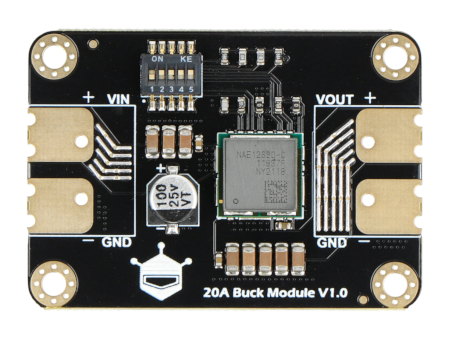

Step down converter 1.8 V - 5.1 V 18 A 60 W - adjustable - DFRobot DFR1025.

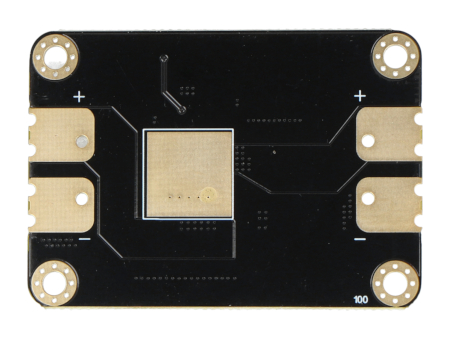

Step down converter 1.8 V - 5.1 V 18 A 60 W from DFRobot.
Security operation
The manufacturer has included numerous safeguards in the board that allow the module to operate stably even at high temperatures. However, the surface temperature of the tile should be monitored and cooled appropriately if the following values are exceeded:
- Surface temperature < 80°C - the converter works stably
- Surface temperature in the range of 80°C to 90°C - recommended to improve heat dissipation
- Surface temperature > 90°C - improvement of heat dissipation is required because overheating protection may block the system operation at any time.
Technical specifications of the module
- Input voltage: 9V to 15V
- Output voltage: 0.6V to 5.1V
- Output current: 18 A
- Output power: 60W
- Conversion efficiency: 92% (typical)
- Built-in protections: short circuit, over current protection and over temperature protection
- Plate dimensions: 52 x 37 mm
Set contents
- Step down converter 1.8 V - 5.1 V 18 A 60 W - adjustable - DFRobot - 1 piece
- Screw connector - 2 pieces
- Aluminum radiator improving cooling - 1 piece

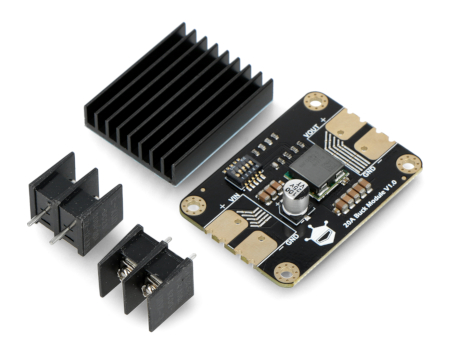

Elements included in the set.
