Product description: S13V25F6 - step-up / step-down converter - 6 V 2.5 A - Pololu 4981
The Pololu S13V25F6 step-up/step-down converter is an advanced electronic device that effectively converts a wide range of input voltages from 2.8 V to 22 V into a stable output voltage of 6 V. Its structure ensures high energy efficiency of 85% to 95% , which is important in battery- powered applications. The converter has compact dimensions, making it ideal for space-constrained applications, and has various protections, such as reverse voltage protection up to 20 V , which increases its operational safety.

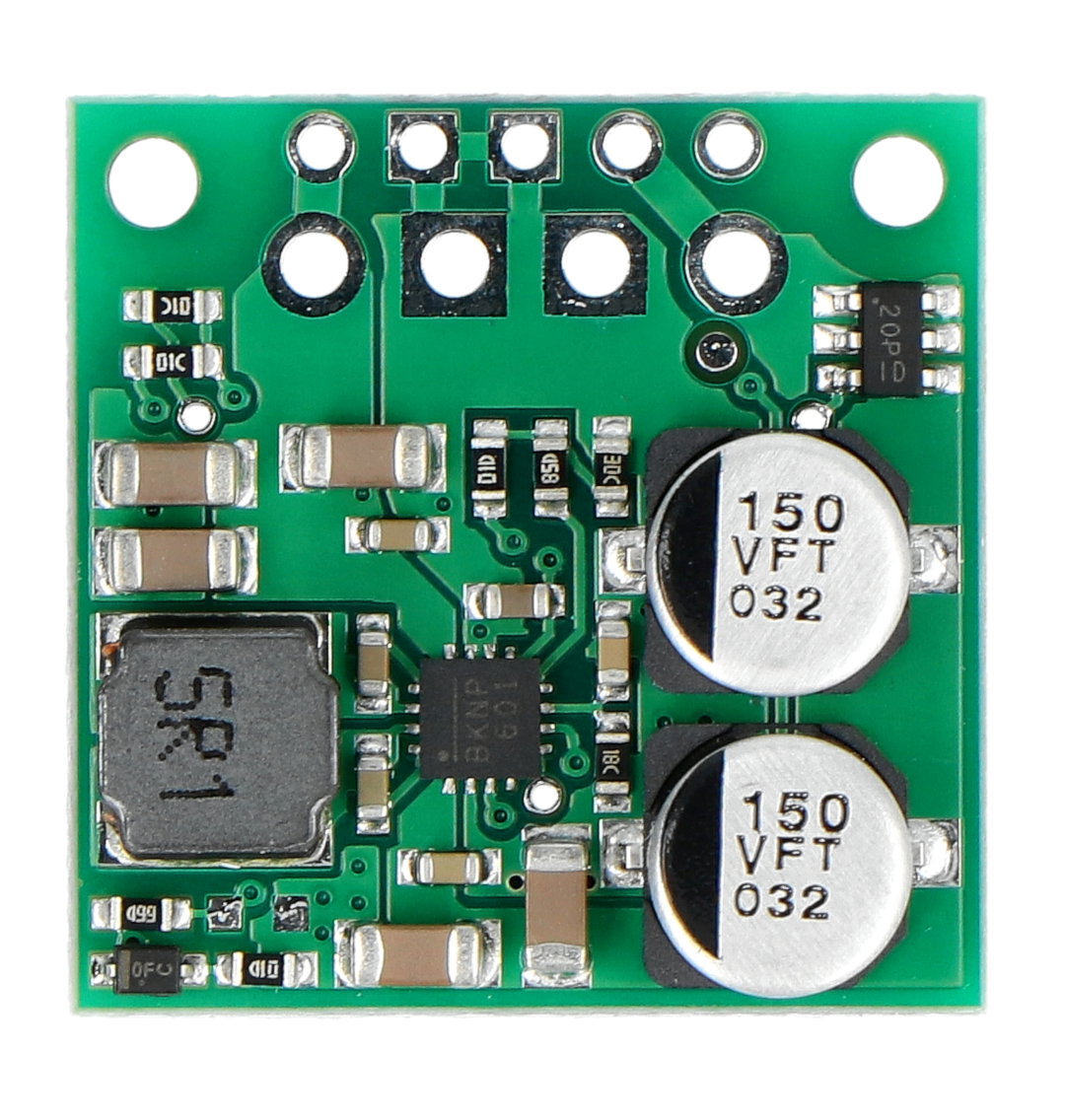

S13V25F6 - step-up / step-down converter - 6 V 2.5 A - Pololu 4981.
The device processes a wide range of input voltage and sets a constant value of 6 V.
Main features of the converter
- Efficiently converts input voltages from 2.8V to 22V to a stable 6V
- It offers typical efficiency of 85% to 95% depending on input voltage and load
- It allows operation with a maximum continuous output current from 1.5 A to 3.5 A
- It has an quiescent current ranging from 10 mA to 20 mA
- Protects against reverse voltage and overload
- Provides a soft-start function that limits the starting current
- Enables entry into a low power state with an idle current of 2 µA to 10 µA per volt
- It has undervoltage and overvoltage protection at the output
- It is characterized by compact dimensions, ideal for applications with limited space
- It ensures stable operation at a constant switching frequency of approximately 500 kHz
Applications of the converter
The Pololu S13V25F6 converter is a universal device used in various electronic systems. It is particularly useful in projects requiring a consistent voltage source despite varying input conditions. Due to its ability to convert both higher and lower input voltages, it is often used in battery-powered devices due to the voltage fluctuations present.
The converter is suitable for applications with unstabilized voltage.

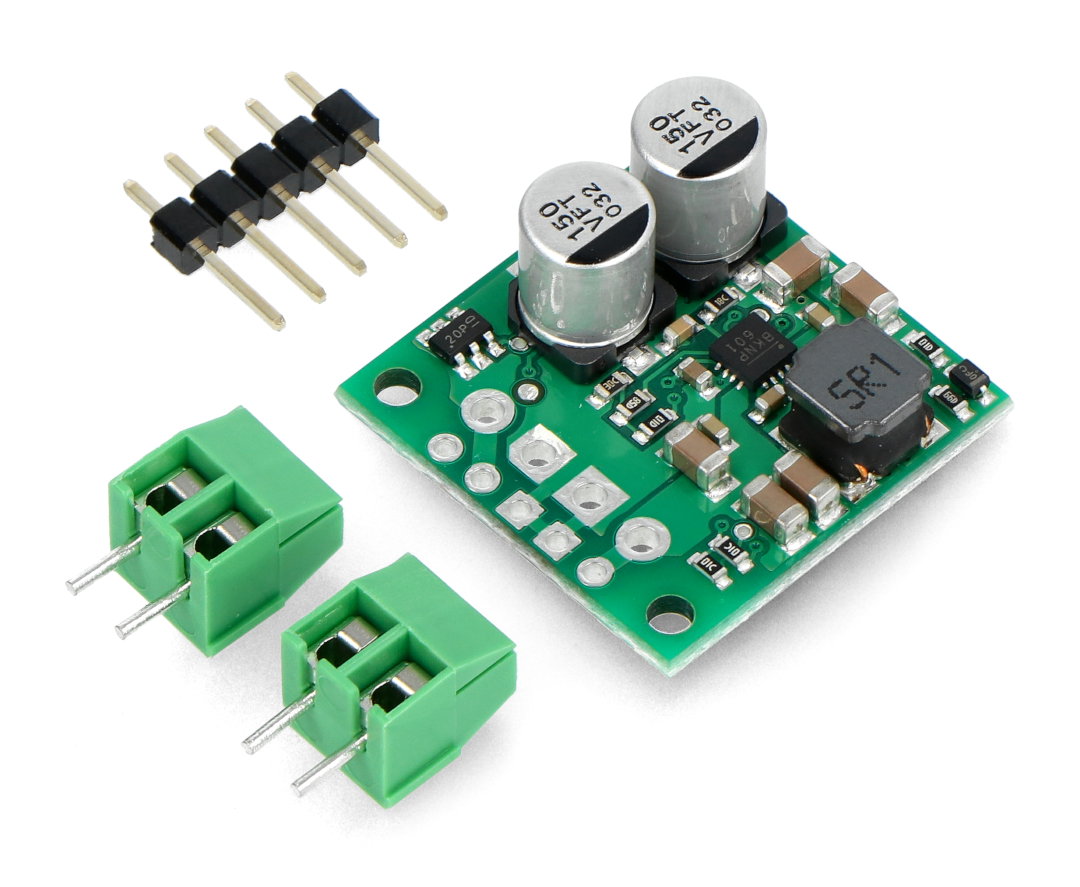

Elements included in the set.
Security available
The device is equipped with reverse voltage protection up to 20 V , which prevents damage caused by incorrect connection. It also has an overheat protection function that automatically turns off the inverter at high temperatures and includes overload protection that protects against excessive current. Built-in protections guarantee a high level of safety and reliability of the converter.

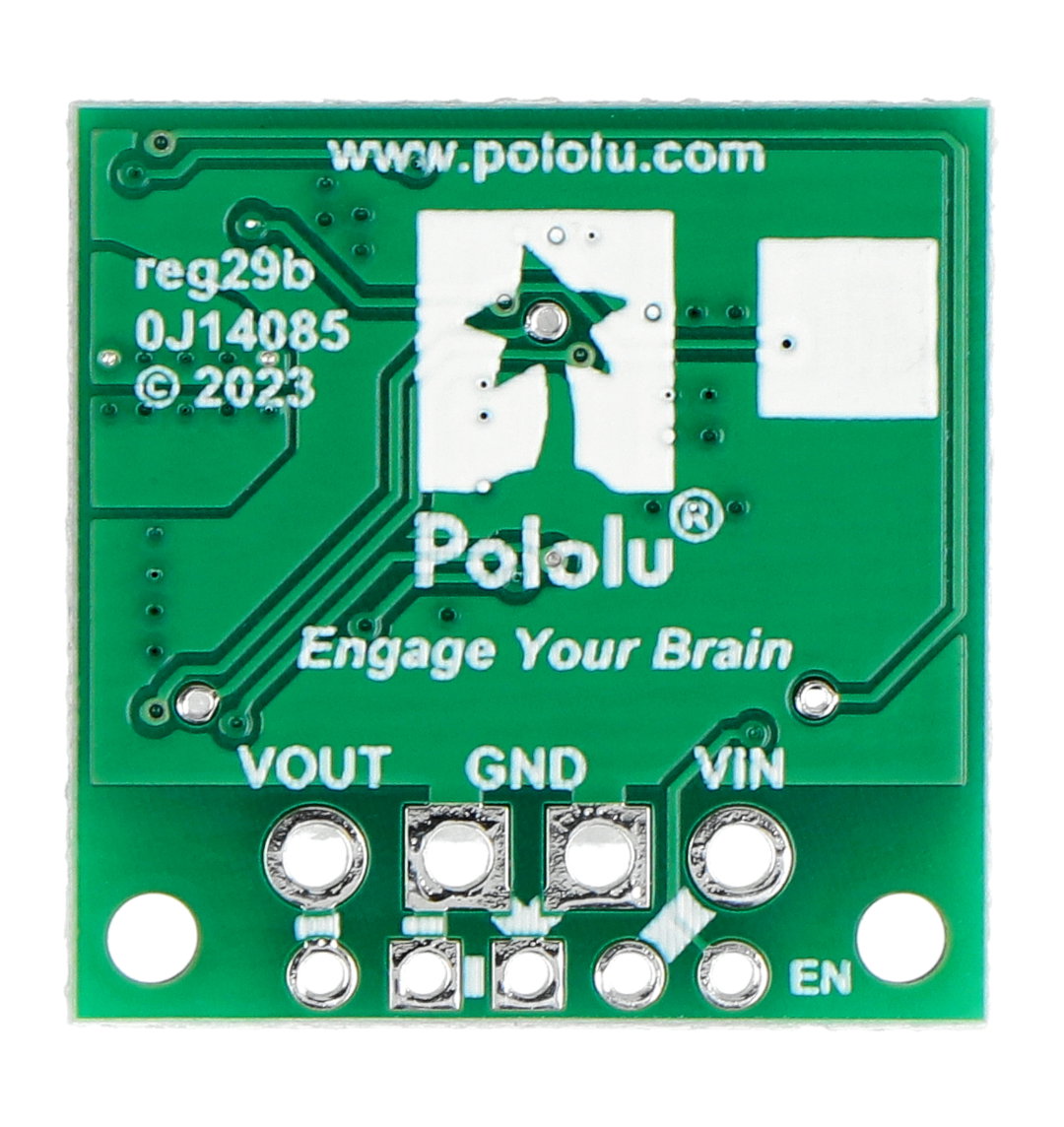

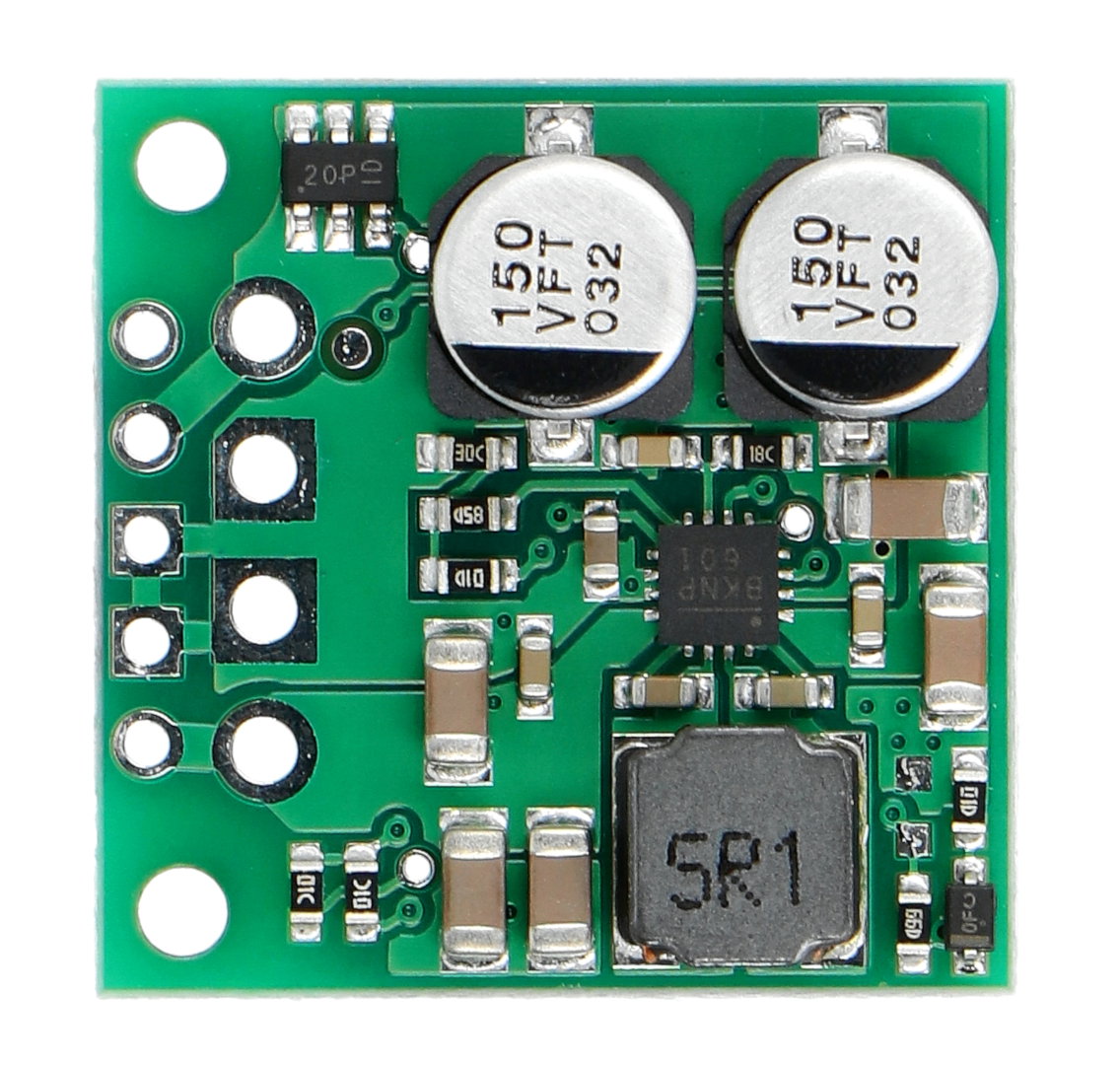

Pinouts of the S13V25F6 converter
The controller has two sets of through holes: five smaller holes placed at 0.1" intervals along the edge of the board (for compatibility with standard breadboards and connectors using a 0.1" spacing between pins) and four larger holes intended for screw terminals with spacing 3.5mm.
- VOUT - output voltage 6 V
- GND - system ground
- VIN - input voltage from 2.8 V to 22 V
- EN - allows you to control the regulator's operation by setting it to low or high
Pinouts of the S13V25F6 converter.
The product has a number of protective measures.
Technical specifications of the S13V25F6 converter
- Device type: step-up / step-down converter
- Input voltage: 2.8V to 22V
- Output voltage: 6V (with an accuracy of 4%)
- Typical maximum continuous output current: 2.5 A
- Maximum continuous output current range: 1.5 A to 3.5 A, depending on input voltage, temperature and other factors
- Maximum output current: 5.1 A
- Quiescent current range: 10 mA to 20 mA (2 µA to 10 µA if the device is turned off)
- Switching frequency: approx. 500 kHz
- System efficiency: 85% to 95%
- Protections: against reverse voltage up to 20V, overload, overvoltage, undervoltage and overheating
- Dimensions: 22.9 x 22.9 x 9.7 mm
