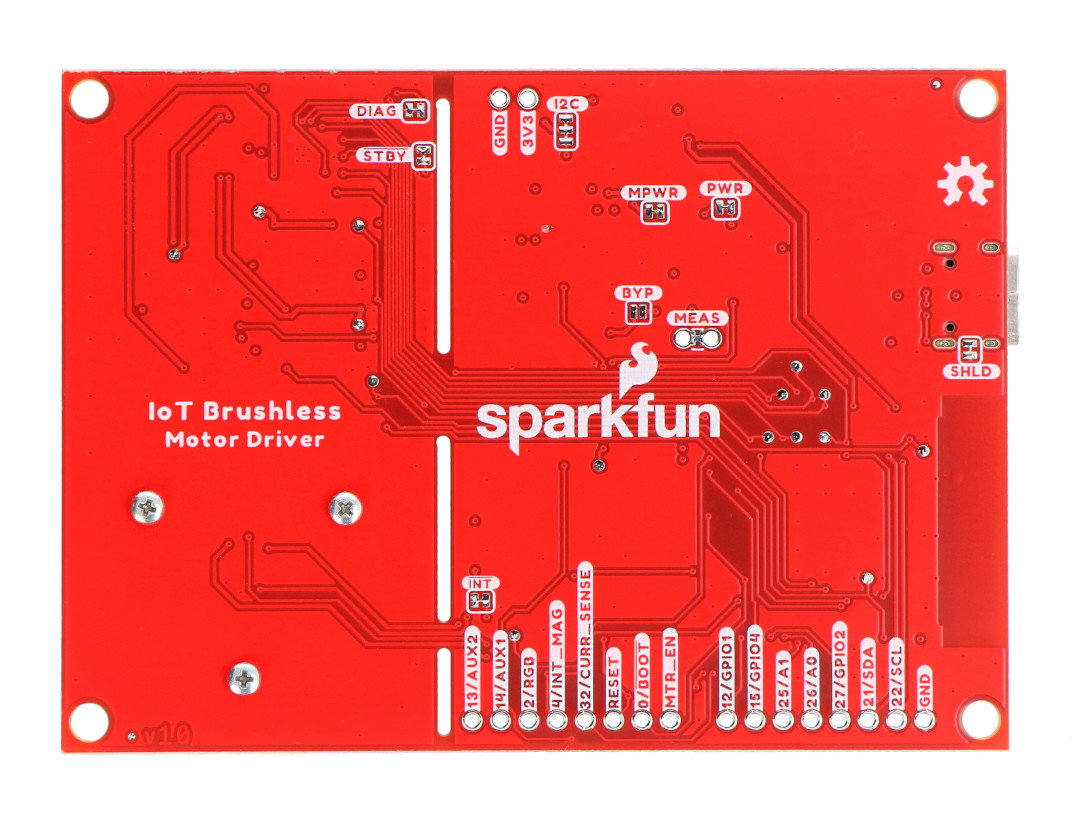

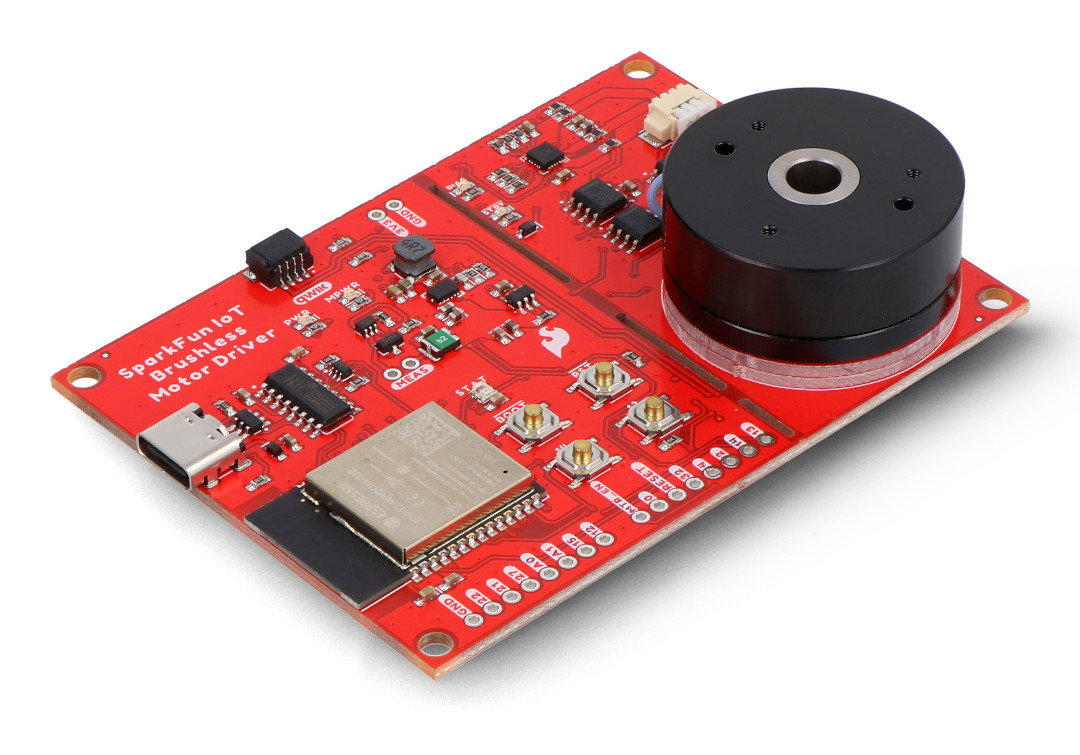

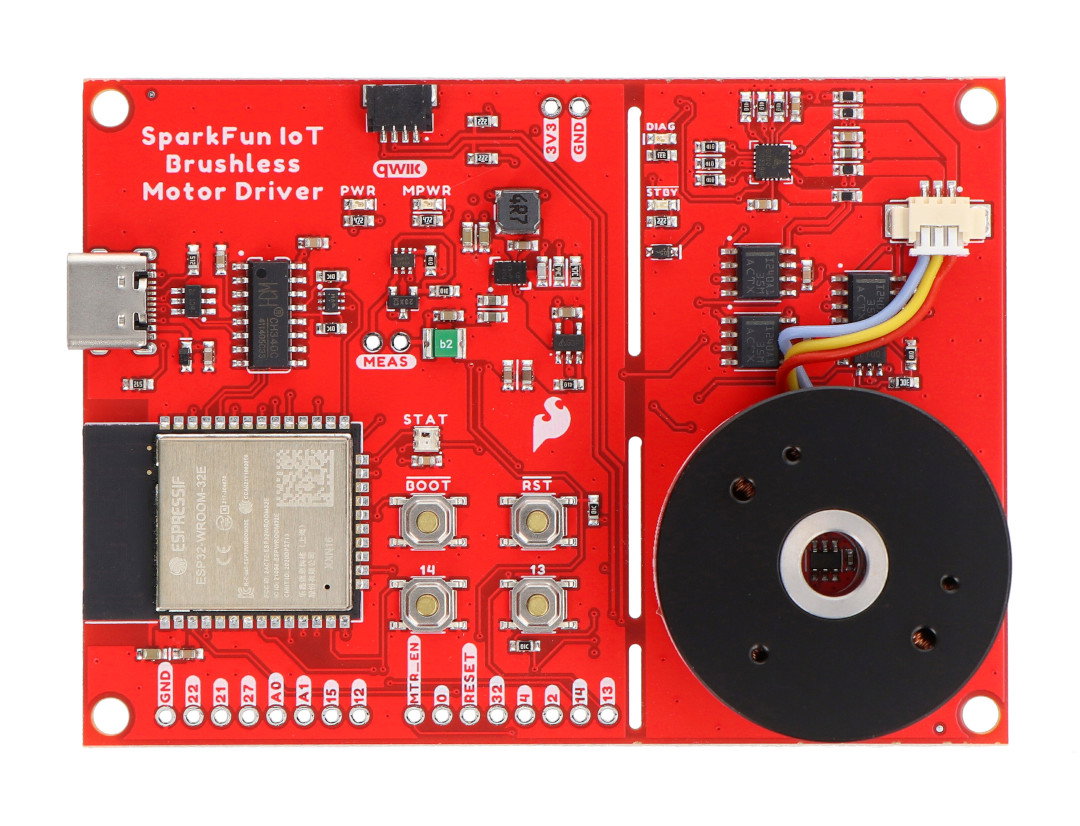

SparkFun IoT Brushless Motor Driver - BLDC motor driver with ESP32 WROOM, TMC6300 - SparkFun ROB-22132
SparkFun IoT Brushless Motor Driver is a controller designed to operate a three-phase BLDC brushless motor. It is equipped with the TMC6300 system from ADI + Trinamic, which allows you to control the engine using the ESP32 WROOM microcontroller built into the board. The maximum current consumption is 2 A (1.4 ARMS).
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: SparkFun IoT Brushless Motor Driver - BLDC motor controller with ESP32 WROOM, TMC6300 - SparkFun ROB-22132
SparkFun IoT Brushless Motor Driver is a controller designed to operate a three-phase BLDC brushless motor . It is equipped with the TMC6300 system from ADI + Trinamic, which allows you to control the engine using the ESP32 WROOM microcontroller built into the board. The maximum current consumption is 2 A (1.4 ARMS). SparkFun IoT Brushless Motor Driver is suitable for various IoT applications such as controlling robots , drones and other high-performance devices.
Before you start working with the module, check the user guide prepared by the manufacturer!
SparkFun IoT Brushless Motor Driver - BLDC motor controller with ESP32 WROOM, TMC6300 - SparkFun ROB-22132.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.
BLDC motor controller from SparkFun.
Special features of the tile
- Equipped with ESP32-WROOM - dual-core 32-bit Xtensa LX6 microcontroller clocked at up to 240 MHz, with 448 kB of ROM and 520 kB of SRAM, as well as 16 MB of built-in SPI Flash memory
- Supports WiFi 802.11 b/g/n 2.4 GHz wireless communication (at speeds up to 150 Mb/s) and Bluetooth, operating in two modes (Bluetooth v4.2 and BLE)
- It has 26 multi-function GPIOs , of which 16 I/O pins are used to communicate with the engine controller
- Features an integrated TMAG5273 Hall effect sensor and INA240A1 current sensor amplifiers that can be used for advanced FOC algorithms or any feedback control loop it implements
- It is equipped with four user buttons, a Qwiic connector and a user-configurable RGB LED
Technical specifications of the module
- Module type: motor controller
- Intended use: for three-phase BLDC brushless motors
- Built-in chip: TMC6300
- Maximum current consumption: 2 A (1.4 ARMS)
- Microcontroller: ESP32-WROOM
- clock speed up to 240 MHz
- 448 KB ROM and 520 KB SRAM
- 16 MB on-board SPI Flash memory
- Cryptographic hardware accelerators: AES, SHA2, ECC, RSA-4096
- Pins: solder pads, Qwiic connector, USB Type C, 3-pin JST connector (for gimbal motor)
- Current sensors
- Current measurement amplifier: INA240
- Operational amplifier: MCP6021
- Operation indicator: RGB WS2812 diode
The soldering pads were placed on one side of the board.
Useful links
- Manufacturer's website: SparkFun ROB-22132
- User Guide
- GitHub repository
- ESP32 technical documentation
- TMC6300 technical documentation
- Technical documentation TMAG5273
- INA240 technical documentation
- WS2812 technical documentation
- FOC Arduino library
- Arduino TMAG5273 library
- System diagram
- EagleCAD files
- Plate dimensions
| Name | Value |
|---|---|
| UC - Microcontroller | ESP32-WROOM-32E |
| UC - Core | Tensilica Xtensa LX6 |
| UC - Flash | 16 MB |
| UC - RAM | 520 kB |
| UC - core | 2. Dual Core |
| UC - Digital pins | 16 |
| UC - freq | 240 MHz |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - Bluetooth | yes |
| Width | 6.3 cm |
| Height | 8.7 cm |
| Depth | 2 cm |
| Weight | 0.068 kg |
