GPS module UBX-G7020-KIT + case - DFrobot
GPS UBX-G7020-KT module has a 56-channel GPS receiver, it operates with a voltage from 3.3 V to 5 V. The update frequency is from 1 Hz to 10 Hz. Communication is via the serial interface (RX, TX).
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
GPS module UBX-G7020-KT communicates through a serial (RX, TX) interface, it has 56-channel receiver, it works with a voltage from 3.3 V to 5 V. The system has a built-in antenna with the sensitivity of -161 dBm. The update frequency is from 1 to 10 Hz. Measurement accuracy reaches even below 2 meters.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
The product is compatible with Arduino The manufacturer providesthe Arduino libraryalong withthe user manual. |
Set includes: GPS module, cable and case.
Specification
- Update frequency: from 1 to 10 Hz
- Current consumption: 30 mA
- 56-channel receiver
- Communication: serial UART interface
- High sensitivity: -161 dBm
- Accuracy
- Autonomous: 2.5 m
- SBAS: below 2 m
- Operating temperature: - 40 to 85 °C
- Cold start: 29 sec
- Warm start: 28 s
- Hot start: 1 sec.
- Module dimensions: 28 x 28 x 8.6 mm
- Case dimensions: 37 x 48 x 16 mm

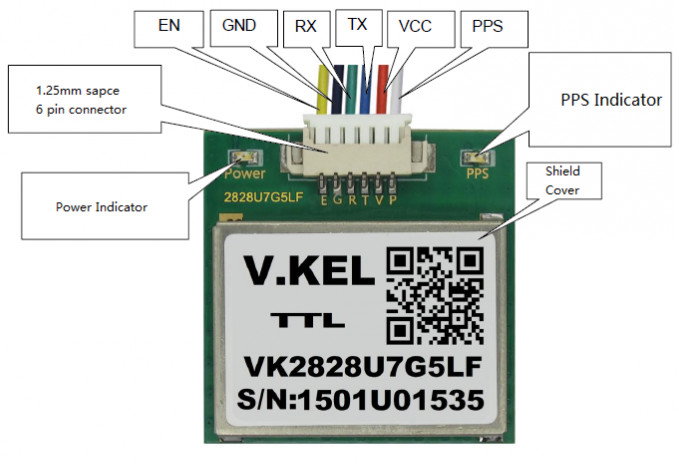

The module connection
| Pin | Description |
|---|---|
| PPS - white wire | Pulse output. |
| VCC - red wire | Powered by 3.3 V to 5 V. |
| TXD - blue wire | UART communication transmitter. |
| RXD - green wire | UART communication receiver . |
| GND - black wire | The ground of the system. |
| EN - yellow wire | The Enbale pin is activated by the high status. |
Useful links
| Name | Value |
|---|---|
| Voltage to | 3.3 V |
| Voltage from | 5.0 V |
| Interface | UART |
| GPS - Refreshing | 1 Hz - 10 Hz |
| GPS - Accuracy | -161 dBm |
| Width | 9 cm |
| Height | 1.7 cm |
| Depth | 5 cm |
| Weight | 0.037 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.
Question: How to change the speed from 9600 to 4800
https://dfimg.dfrobot.com/nobody/wiki/5bb2eeea1dc7fa556999ab50ebebcba3.pdf
