Product description: Motor Driver Carrier Board - 2 x 3 A DC motor controller - extension for UNIHIKER - DFRobot DFR1136
A carrier board that allows you to control two DC motors with a maximum current of 3 A each, designed for the UNIHAKER minicomputer. It uses a connector with an inclined edge to connect the minicomputer, thanks to which the screen will be tilted at an optimal angle to the operator's field of view. The board can be powered in 3 ways via the USB C interface on the UNIHAKER minicomputer, via the USB C interface on the expansion card or via a 2.1 mm DC socket. It has built-in RGB diodes, an infrared receiver and control diodes. Additionally, the board is expanded with 10 3-pin ports and 4 I2C ports (powered by 3.3 V and 5 V). The supported DC motors are controlled by 4 I/O pins. The set includes an angled USB C cable that allows power supply and communication between both the UNIHAKER minicomputer and the carrier board.
The manufacturer has prepared a detailed user guide that makes using the module much easier - check it out!

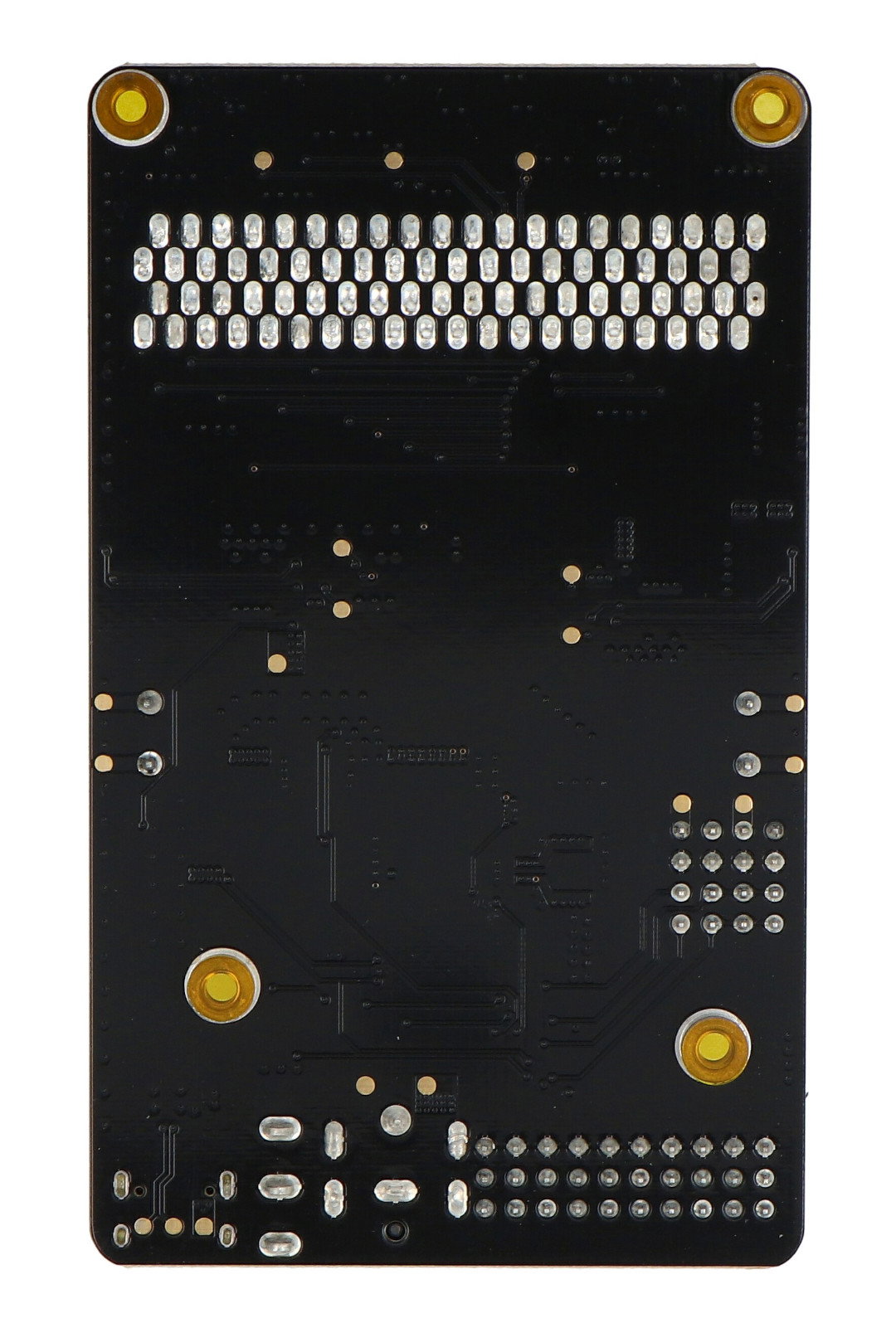

Motor Driver Carrier Board - 2 x 3 A DC motor controller - extension for UNIHIKER - DFRobot DFR1136.
Motor Driver Carrier Board - 2 x 3 A DC motor controller.
Main features of the carrier plate
- Compatible with the UNIHAKER minicomputer - the carrier board is compatible with UNIHAKER connectors, which makes it possible to carry out tests and develop projects
- Supports DC motors : Controls two DC motors, controlled by 4 I/O pins
- Various power ports - can be powered from:
- USB C interface on the UNIHAKER minicomputer
- USB C interface on the carrier board
- 2.1mm DC sockets
- UNIHAKER edge connector - connector with a tilted edge provides the best viewing angle for the screen
- Built-in infrared receiver - additional functions for transmitting, receiving infrared and RGB light
- Easy expansion with additional modules - all spare I/Os have soldered leads, making expansion with additional modules much faster
- I2C bus support - four I2C interfaces (if the carrier board is not powered separately, only indirectly from the UNIHAKER minicomputer, this interface cannot be used)
- The included USB C adapter cable - angled USB C cable, allows direct power supply to the UNIHIKER minicomputer from the carrier board
- The use of LED indicators - built-in power, engine power, engine signal indicators, convenient for debugging

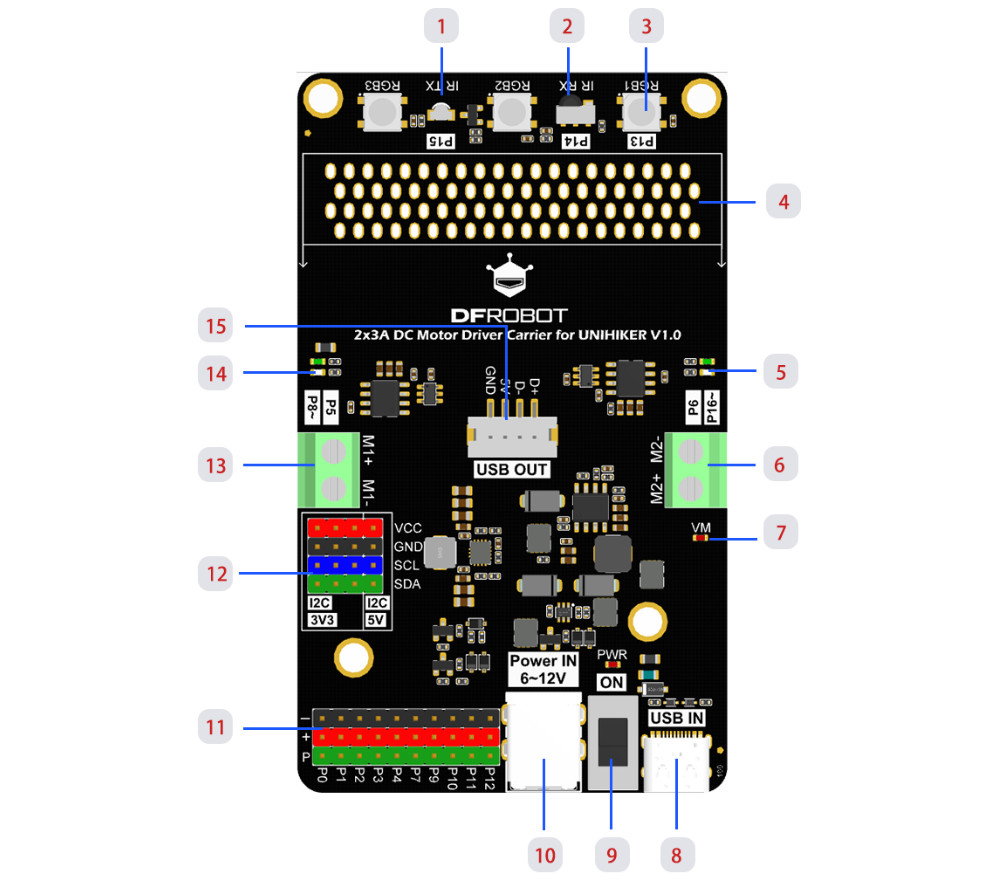

Description of the leads
- Infrared transmission
- Infrared receiver
- RGB LED
- UNIHAKER edge connector
- M2 engine diode
- M2 Engine Interface
- LED VM
- USB Type-C
- Switch
- DC jack 2.1mm
- Digital/Analog Interface
- I2C
- M1 Engine Interface
- M1 engine diode
- USB adapter
Carrier plate leads.

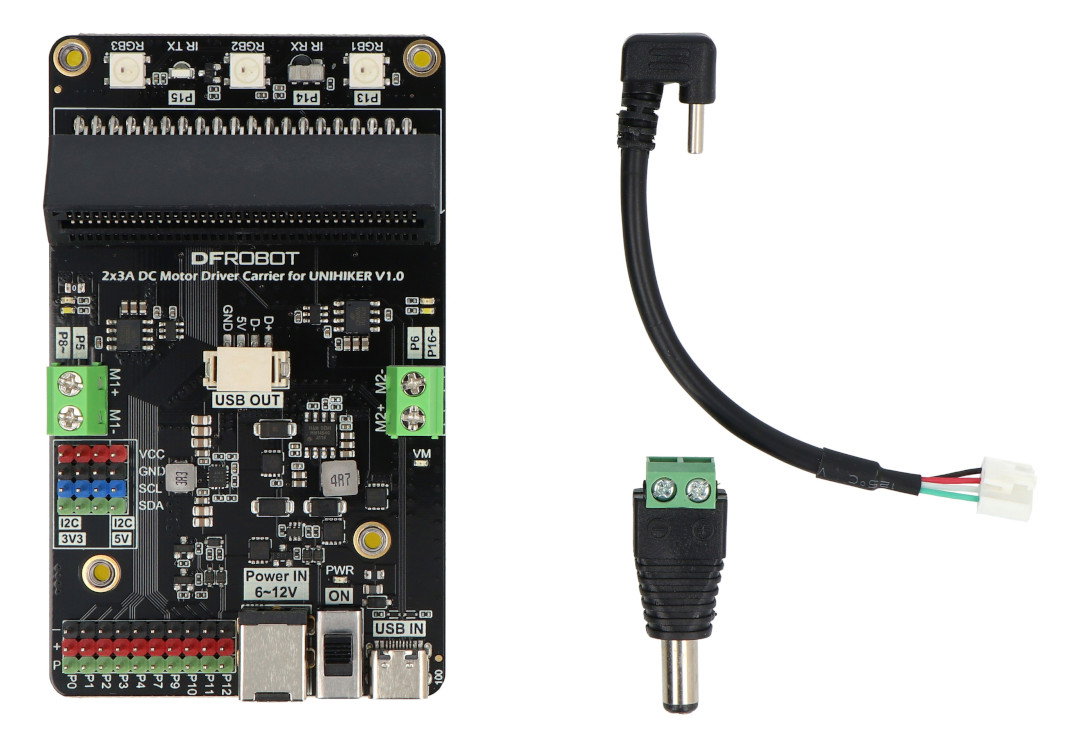

Kit contents.
Technical specification
- Power interface:
- 2.1mm DC socket: 6V to 12V
- USB Type-C: 5V
- Operating voltage: 3.3 V
- I/O expansion connector:
- 3-pin: 10 I/O ports, 3.3V
- 4-pin I2C connector: 3x 3.3V, 1x 5V
- Motor Interface: DC Motor x2
- USB adapter port: 4-pin interface with 2 mm pitch, used to power the UNIHIKER
- Power Switch: Controls power to the USB adapter port and motor drive
- Mounting hole: 4x M3
- Built-in components:
- 3x RGB diode WS2812
- 1x infrared transmitter
- 1x infrared receiver
- Dimensions: 98 x 58.5 mm
- Weight: 70 g
Kit Contents
- 1x Motor Driver Carrier Board - 2 x 3 A DC motor controller - extension for UNIHIKER - DFRobot DFR1136
- 1x U-shaped USB Type-C Cable
- 1x DC Jack 5.5 x 2.1mm with quick connector
