Product description: Automation HAT Mini - frontend for Raspberry Pi - Pimoroni PIM487
Automation HAT Mini is an overlay designed forRaspberry Piminicomputers. The small size of the overlay gives great possibilities inautomation. It features a24 V / 2 A relay,0.96" OLEDdisplay, 0 V to 24 V ADCADS1015analog to digital converter with 3 12-bit channels, three 24 V buffer inputs, three 24 V Sink outputs. The input/output connectors are ona 3.5 mm screw terminal. The overlay is compatible with any 40-pin version of Raspberry Pi.
The manufacturer has prepared aPython libraryanduser guidefor the Automation HAT Mini and Raspberry Pi.

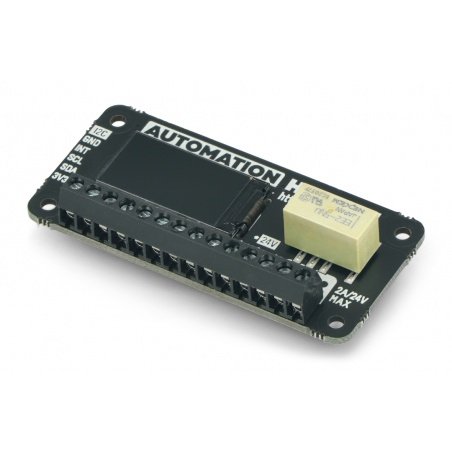

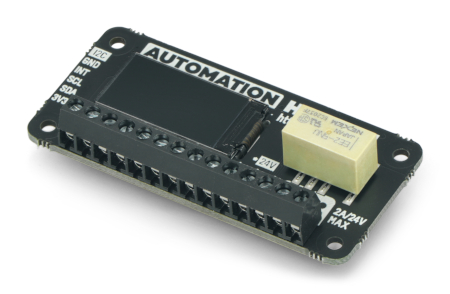

Automation HAT Mini for Raspberry Pi.

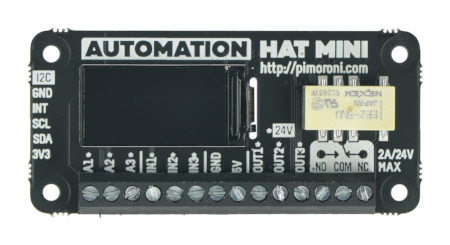

Automation HAT Mini frontend for Raspberry Pi minicomputer.Main features of the Automation HAT Mini
- 0.96" color display (160 x 80 px)
- 24 V / 2 A relay (NC and NO connectors) with high-side connection
- 3x 12-bit ADC from 0 V to 24 V (ADS1015) (accuracy ± 2 %)
- 3x buffer inputs tolerating 24 V
- 3x Sink type outputs tolerating 24 V
- 3.5 mm screw terminal
- Mini HAT format
- Fully assembled (no soldering required)
- Compatible with any 40-pin version of Raspberry Pi
- Prepared by the manufacturer Python library
- Dimensions: 65 x 30 x 16.8 mm
Automation with Automation HAT Mini
All inputs, outputs, and relay on the Automation HAT Mini tolerate24 V; many low-voltage systems in home appliances operate at 12 V or 24 V. Buffer inputs can be used to detect on/off status of appliances or get more detailed with analog inputs that measure input voltage with12-bitaccuracy. The outputs can receive a maximum of500 mAon three channels. For higher current loads, a relay can be used that can tolerate up to 2 A at 24 V. On the bottom of the board there is an additional pinout where you can connect various types ofI2Csensors.Automation HATis also available in our offer.
Automation HAT software
The manufacturer has prepareda Python libraryfor Automation HAT Mini along with examples that will allow you to start working with the overlay. Auser guidewith more details has also been prepared.
Pimoroni Automation HAT Mini.
