Product description: pHAT Stack - pin expander for Raspberry Pi - assembled set - Pimoroni PIM322
pHAT Stack is a versatile tool for electronics enthusiasts who want to make the most of their minicomputer's capabilities. It connects to the Raspberry Pi via a 40-pin cable, offering five additional 40-pin goldpin strips. Allows you to connect 5 pHAT caps or 3 standard HAT caps . The board has 6 pre-soldered goldpin strips, so it is ready for use without the need for soldering . The set includes male GPIO connectors, rubber feet to prevent sliding and metal spacers for stable installation of the overlays. To avoid pin conflicts, it is recommended to check module compatibility usingpinout.xyz or the pHAT Stack configurator . Thanks to this, you can create advanced projects, such as miniature game consoles, weather stations, or alarm clocks with displays and controls.
The manufacturer has prepared a user's guide to help you start working with the pHAT Stack plate.
pHAT Stack - pin expander for Raspberry Pi - assembled set - Pimoroni PIM322.

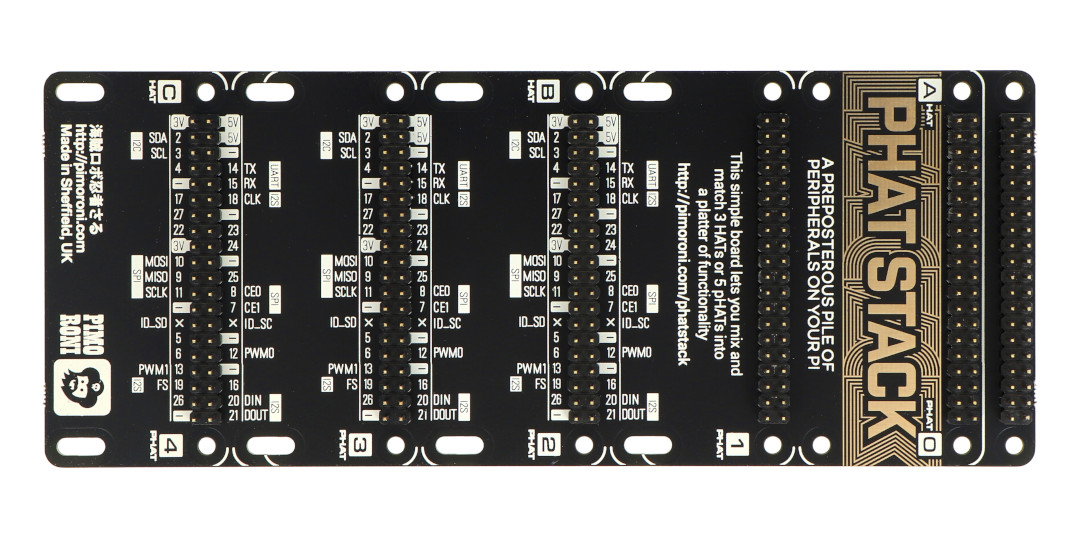

The pHAT Stack allows you to connect 5 pHAT caps or 3 standard HAT caps.
Special features of pHAT Stack
- Versatility : ability to connect up to 5 pHATs or 3 standard HATs.
- Ease of assembly : the kit contains all the necessary assembly elements, and the goldpin strips are already pre-soldered.
- Stability : rubber feet and metal spacers ensure a stable and secure connection.
- Security : the manufacturer provides tips on avoiding pin conflicts, and the pinouts are carefully described.
- Flexibility : Ideal for both temporary and permanent installations.
- Possibilities : a wide range of designs, from miniature game consoles, through weather stations, to alarm clocks with displays and controls.
Applications of the pHAT Stack
pHAT Stack is an extremely versatile tool that can be used in many creative projects with Raspberry Pi. Example applications include:
- Miniature game consoles : A variety of pHATs add display and interaction features.
- Weather stations : measurement modules and displays for monitoring and presenting environmental data.
- Alarm clocks : time displays and control functions, with the ability to add speakers and touch interfaces.
- IoT projects : control and monitoring of various devices and sensors.
- Data display systems : use of pHATs such as Four Letter pHAT and Scroll pHAT HD to present real-time information.
Thanks to its flexibility and ease of assembly, pHAT Stack is an ideal solution for both beginners and advanced users, allowing them to experiment and develop electronic projects.

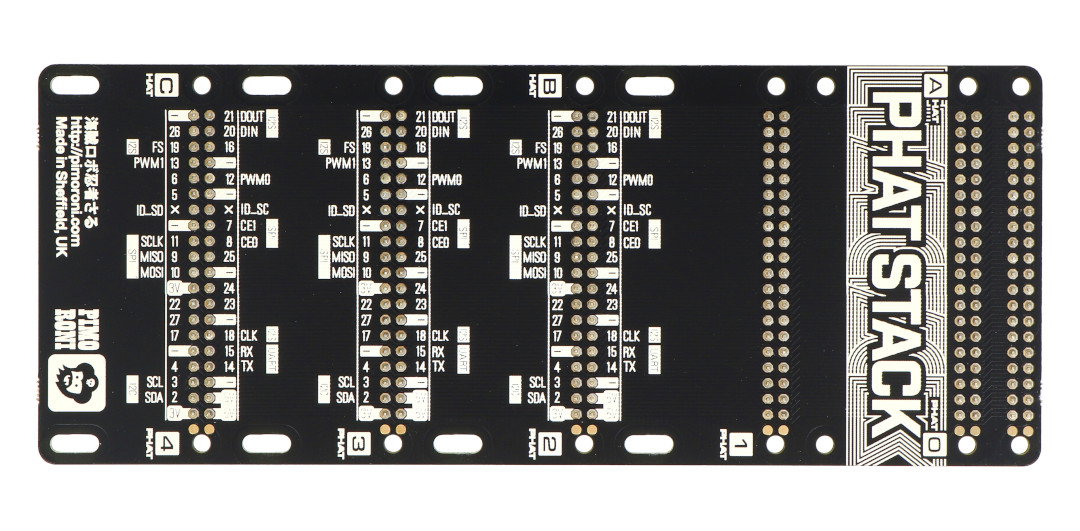

The board has 6 pre-soldered goldpin strips.
Elements included in the set.
Technical specifications of the Pimoroni PIM322 pin expander
- Connectors: 6x 2 x 20 male GPIO connectors (pre-soldered)
- Mounting holes: M2.5 for HAT and pHAT overlays
- GPIO cable: 40-pin
- Board dimensions: 162 x 65 x 1.75 mm

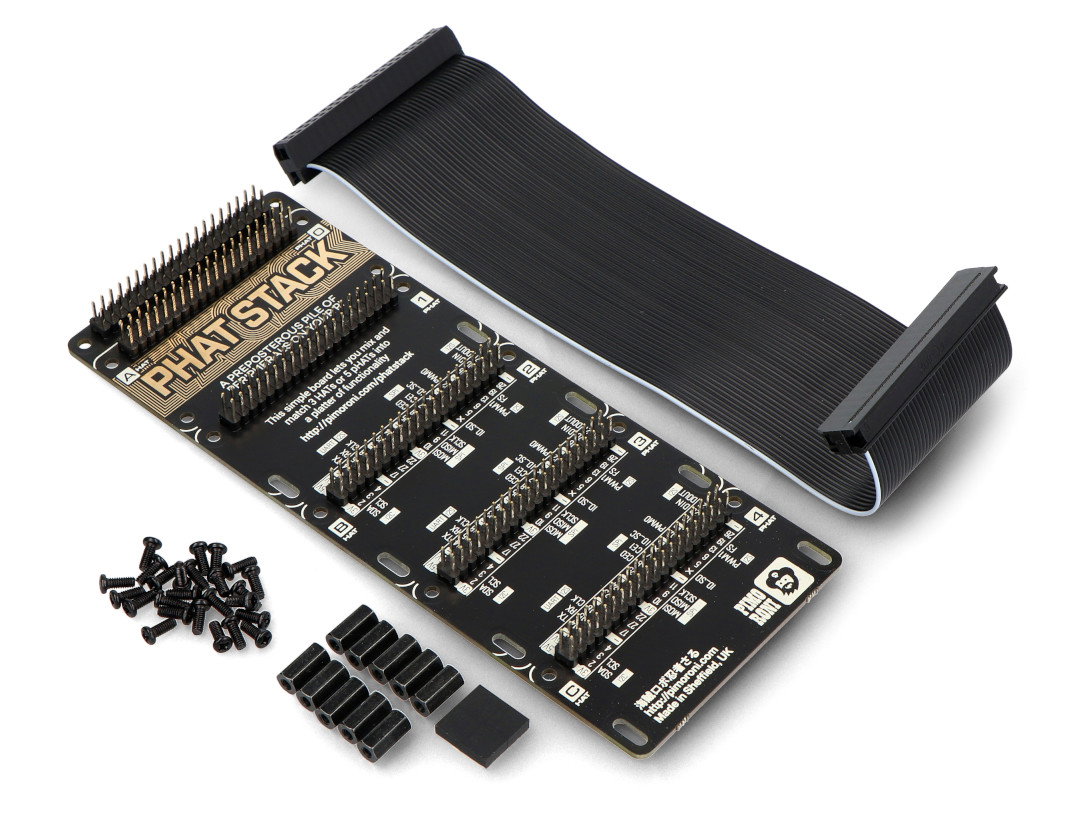

Set contents
- pHAT Stack Plate
- 6x 2 x 20 pin male GPIO connectors (pre-soldered)
- 10x black brass spacers
- 4x rubber, non-slip feet
- 40 pin black GPIO ribbon cable
