- New
Product description: Rectifier diode 1N5408 - 10 pcs.
The 1N5408 rectifier diode is a semiconductor component used to convert AC to DC in power and high-voltage systems. It is characterized by a maximum reverse voltage of up to 1000 V and an average forward current of 3 A. This diode is also capable of conducting a short-term peak surge current of 200 A , making it resistant to current surges. It is often used in half-wave and full-wave rectifiers and as a protective element in circuits to prevent reverse polarity problems.
Also check out other types of rectifier diodes available in our offer.

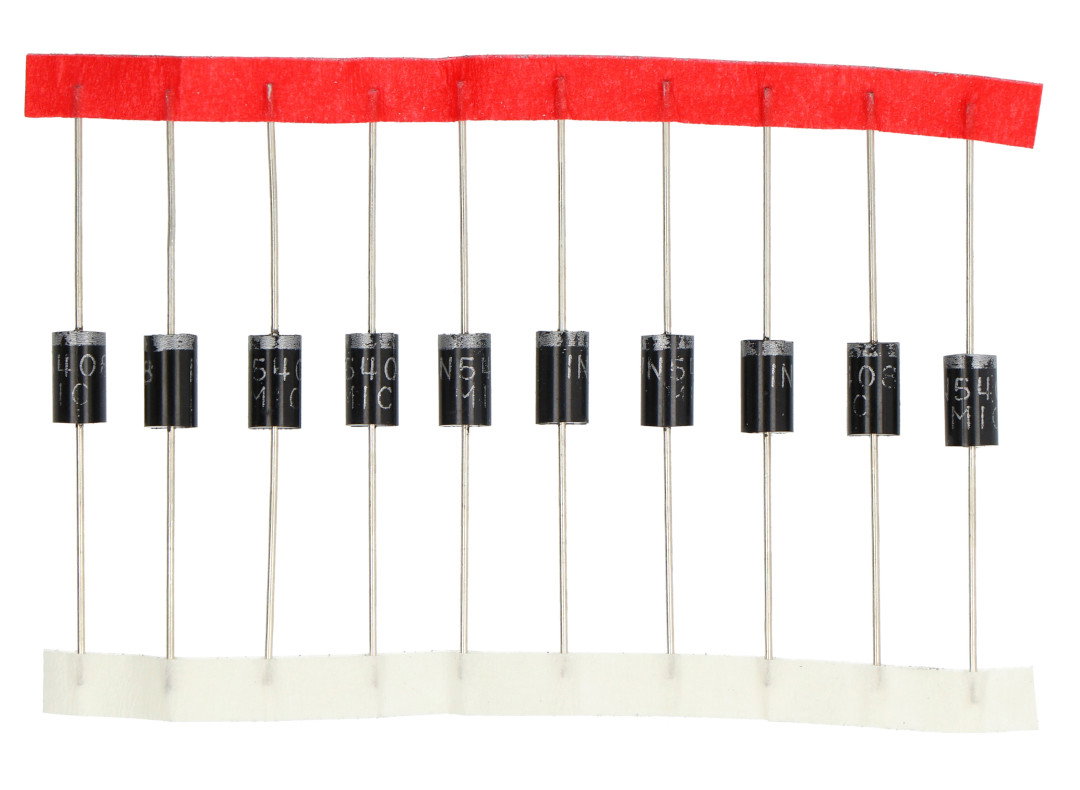

Rectifier diode 1N5408 - 10 pcs.
Items included in the set.
1N5408 Rectifier Diode Specification
- Type: rectifier diode
- Maximum Reverse Voltage (VRRM): 1000 V
- Maximum Blocking Voltage (VDC): 1000 V
- Average forward current (IF): 3 A
- Surge current (IFSM): 200 A
- Reverse Leakage Current (IR): 50 µA at 1000 V
- Forward Voltage Drop (VF): 1 V at 3 A
- Operating temperature range: -65°C to 150°C
- Housing: DO-201AD
Items are sold in sets of 10.
