Description

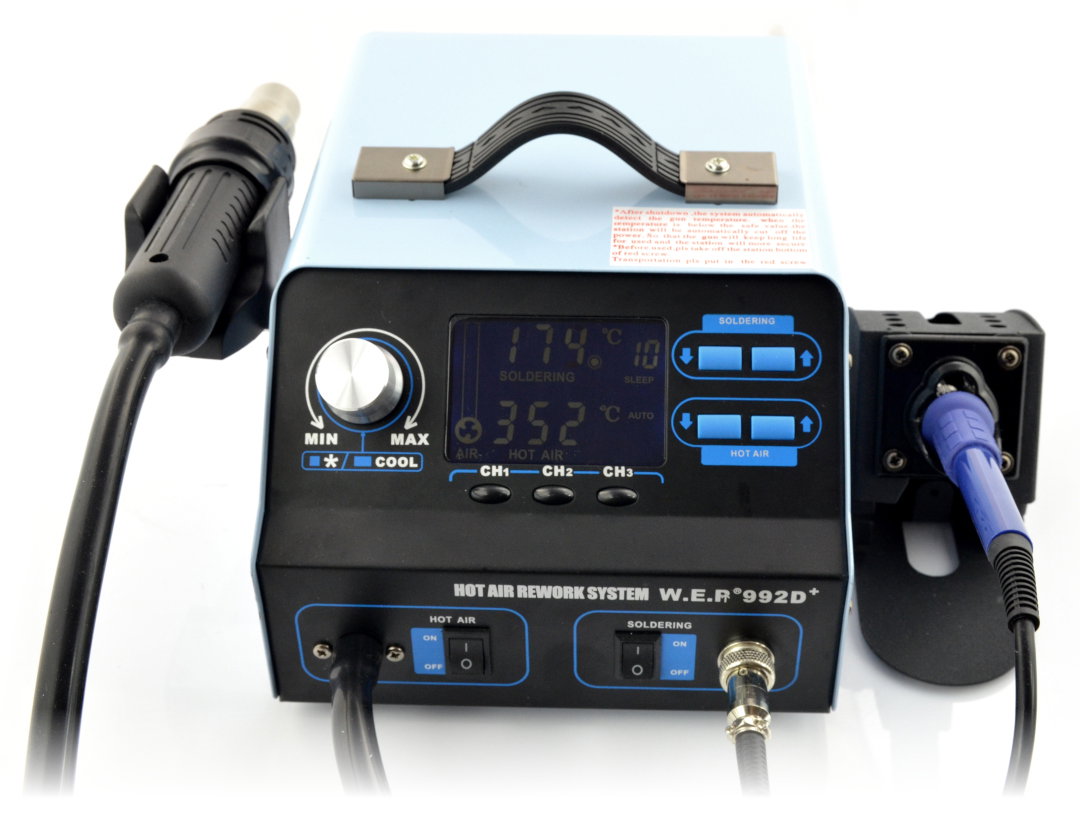

WEP 992D+ is soldering station with hot air iron and tip-base soldering iron 75 W. The device has a microcontroller PID, which checks the performance and adjusts it to the preset values.
Among other models 992DA+ it is characterized by:
- 3 programme of work- station has the ability to memorize 3 of the work programme for hot air and the soldering iron. Depending on type of works (Assembly or disassembly), you need to install the appropriate program.
- The operation of the hot air in automatic and manual mode:
- automatic- when you put down the iron, the system will turn off the heat and cool down the iron to a safe temperature
- manual- when you put down the iron, the system further heats up a heating element. Before finishing it is recommended to go to auto mode.
- The function of temperature correction depending on external parameters
- Mode C/Fthe ability to change the units in which temperature is displayed.
- Sleep function of soldering iron - if the iron is not used the given time interval (0 - 99 minutes), the system switches to sleep mode, that is cooled to a temperature of 200 °C, which ensures long service life of the device.
- Tip-based solderin iron with a fast heating element has a stable temperature, which is electrostatically safe.
Specification
- Voltage: 220 - 240 V / 50 Hz (network)
- Power consumption: 720 W
- The station is controlled through a microcontroller that provides high stability
- The device has a PID controller
- Compact design with large and clear LCD display
- Soldering Iron Hotair:
- Blowing air through the compressor inside the station
- Smooth adjustment of temperature in the range
- Adjustable temperature hot air from 100 °C to 480 °C
- Temperature stability: +/-1 °C
- LCD display showing actual power supply
- Operation mode manual / automatic
- Protection before reaching the high temperature and inform the alarm
- Cable length of the tion: up to 90 cm
- Soldering Iron Tip-based
- Adjustable temperature soldering tip: 200 °C to 480 °C
- Temperature stability: +/- 1 °C
- Peak power of soldering iron: from 72 to 75 W
- The resistance to grounding: up to 2 Ω
- Capacity in relation to protective earth: up to 2 mV
- The system is ESD safe
- Cable length of the iron: up to 100 cm
- Sleep mode: enabled after idle operation 0-99 minutes
Includes:
- Station WEP 992D+ ND
- Stand for the hotair iron
- Set of nozzles:
- round 2.5 mm
- round with a diameter of 4.4 mm
- round with a diameter 6 mm
- round with a diameter of 9 mm
- square 12x12 mm
- Stand for tip-based iron along with a cleaning sponge
- Soldering iron 908B with T-B tip
- A gripper for lifting circuits
- Power cable
|
