Cytron Maker Uno RP2040 - Arduino compatible

Index: CTN-24882 EAN: 5904422385729
The Maker Uno RP2040 from Cytron is an advanced development board that combines the popular Arduino Uno form factor with the power of the Raspberry Pi RP2040 microcontroller. It has 26 digital pins , 3 analog inputs, and 16 PWM channels. Additionally, the board offers 6 Grove ports for connecting sensors, 4 dedicated servo ports , and a programmable buzzer and buttons. It supports programming in CircuitPython, MicroPython, and the Arduino IDE, making it ideal for learning and creating projects.
Cytron Maker Uno RP2040 - Arduino compatible
€16.50
€13.41 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Cytron

Product Description: Cytron Maker Uno RP2040 - Arduino Compatible

Maker Uno RP2040 from Cytron is a modern development board combining the classic Arduino Uno form factor with the powerful Raspberry Pi RP2040 microcontroller. Equipped with a dual-core Arm Cortex-M0+ processor, it offers high performance and versatility, ideal for education and advanced hobby projects. It has 26 digital pins , 3 analog inputs and a 12-bit ADC converter, which enables precise measurements and control. Thanks to the large Flash memory (2 MB) and support for CircuitPython, MicroPython and Arduino IDE, this board allows for flexible project creation. It has been equipped with many conveniences from the Maker series , such as built-in LEDs , programmable buzzer, buttons, as well as Grove ports and dedicated ports for servo mechanisms. Ideal for beginners and advanced users.

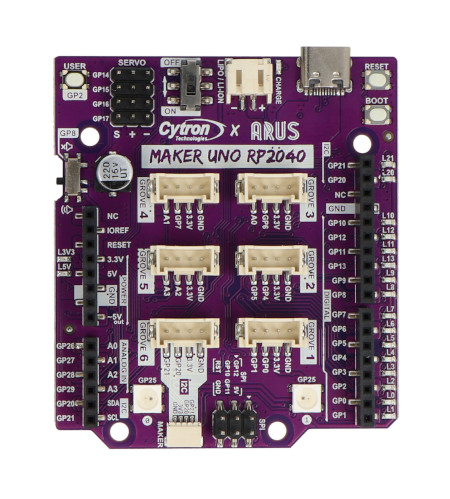

Cytron Maker Uno RP2040 - Arduino compatible

Cytron Maker Uno RP2040 - Arduino compatible.

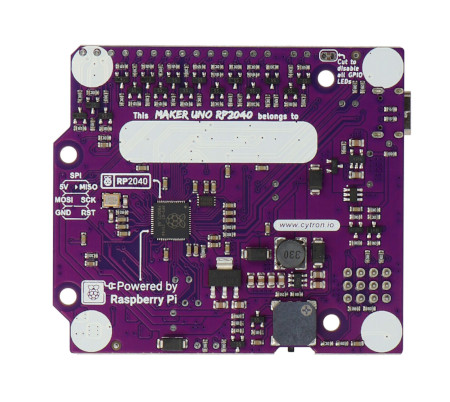

Cytron Maker Uno RP2040 - Arduino compatible

Board with Raspberry Pi RP2040 microcontroller.

Special Features of Maker Uno RP2040

  • Dual-core Arm Cortex-M0+ processor (RP2040).
  • CircuitPython, MicroPython and Arduino IDE support.
  • 16 PWM channels, 2 I2C, 2 SPI and 2 UART controllers.
  • 16 LED indicators for GPIO, programmable buzzer and buttons.
  • 6 Grove ports, 4 servo ports.
  • Support for Li-Pol / Li-Ion batteries with built-in protection.

To run the board, connect it to your computer using a USB cable, install your chosen development environment and select the Maker Uno RP2040 board in the Arduino IDE.

Arrangement of components on the board

  1. User button
  2. Buzzer
  3. Power LED
  4. Grove Connectors
  5. Maker Connector
  6. SPI connector
  7. RGB LEDs
  8. LED indicators for GPIO pins
  9. Boot button
  10. Reset button
  11. USB Type-C connector
  12. Charging LED
  13. Battery connector
  14. On/off switch
  15. Servo connectors
  16. GPIO connectors
Component layout on the Cytron Maker Uno RP2040 board

Arrangement of elements.

Servo Integration

The board enables easy integration with servos thanks to its dedicated four servo ports . These ports provide a stable connection without the need for additional cables, and their power depends on the board's selected power source .

Power supply for the board

Maker Uno RP2040 can be powered via USB Type-C (5V) or by a single-cell Li-Pol / Li-Ion battery . The board has a built-in charging circuit with overcharge and discharge protection.

Technical specification

  • Processor: Raspberry Pi RP2040, Arm Cortex-M0+, dual-core
  • RAM: 264 KB
  • Flash Memory: 2MB
  • Interfaces: 2x I2C, 2x SPI, 2x UART
  • GPIO Ports: 20
  • USB connector: USB Type-C
  • Power supply: USB (5V) or Li-Pol / Li-Ion battery
  • Supported languages: CircuitPython, MicroPython, Arduino IDE
  • Dimensions: 69.4 x 60.69 mm (compatible with Arduino Uno)

Contents of the set

  • 1x Maker Uno RP2040 Board
  • 1x Set of silicone feet (pack of 4)
  • 4x Grove Cables to Female Connector
Maker Uno vs Maker Uno RP2040 Specifications and Comparison
Model Maker Uno Maker Uno RP2040
Microcontroller ATmega328P RP2040
Architecture 8-bit AVR 32-bit ARM Cortex-M0+
Clock frequency 16MHz 133MHz
Flash memory 32 KB 2MB
RAM 2KB 264KB
Number of GPIO pins 14 30
Interfaces UART, I2C, SPI UART, I2C, SPI, USB
Operating voltage 5V 3.3V
USB port microUSB USB Type-C
Dimensions 75x54mm 69.4 x 60.96mm

Voltage to 3.7 V
Voltage from 5.0 V
Voltage nominal 3.3 V
Voltage output from 3.3 V
Output voltage to 3.3 V
Nominal output voltage 3.3 V
UC - Microcontroller RP2040
UC - Core ARM Cortex-M0+
UC - Flash 2 MB
UC - RAM 264 kB
UC - core 2. Dual Core
UC - Digital pins 26
UC - analog in 3
UC - freq 133 MHz
UC - A/C 12-bit
Package width 8 cm
Package height 7 cm
Package depth 3 cm
Package weight 0.056 kg
