Product description: PCF8574 - GPIO pins expander - I2C - STEMMA QT / Qwiic - Adafruit 5545
A lead expander by Adafruit equipped with the PCF8574 chip. It has 8 analog I / O GPIO pins , thanks to which it increases the design possibilities of the modules used. It communicates via the I2C bus, has 3 configurable interface addresses. The expander supply voltage is in the range from 3 V to 5 V DC . There are two STEMMA QT / Qwiic connectors and solder pads on the board, to which the goldpin strip should be soldered.
Also check the manufacturer 's user guide .

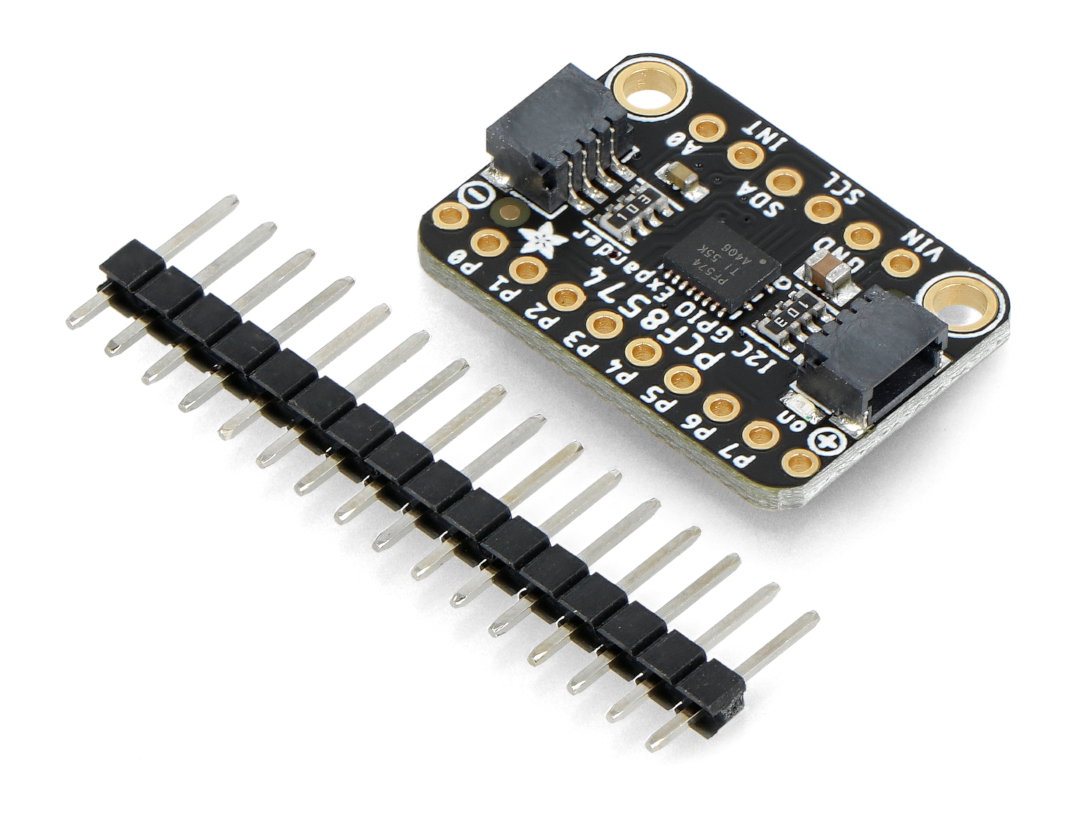

The set also includes a goldpin strip with a pitch of 2.54 mm.
PCF8574 - GPIO pins expander - I2C - STEMMA QT / Qwiic - Adafruit 5545.
STEMMA QT connector
The expander is equipped with two STEMMA QT connectors, located on the board edges. This standard increases the possibilities of prototyping, significantly speeds up the process of connecting with development boards and a wide range of other sensors. All this is done without the need for soldering and only with the use of a suitable cable.

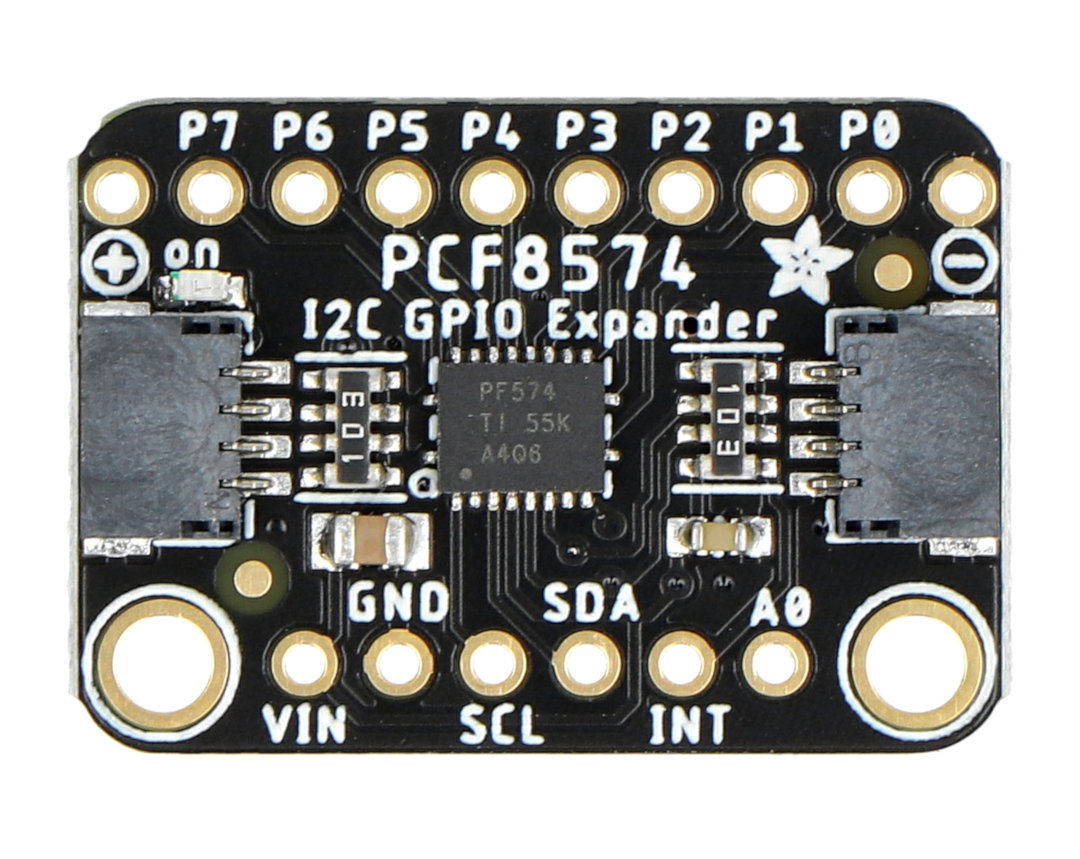

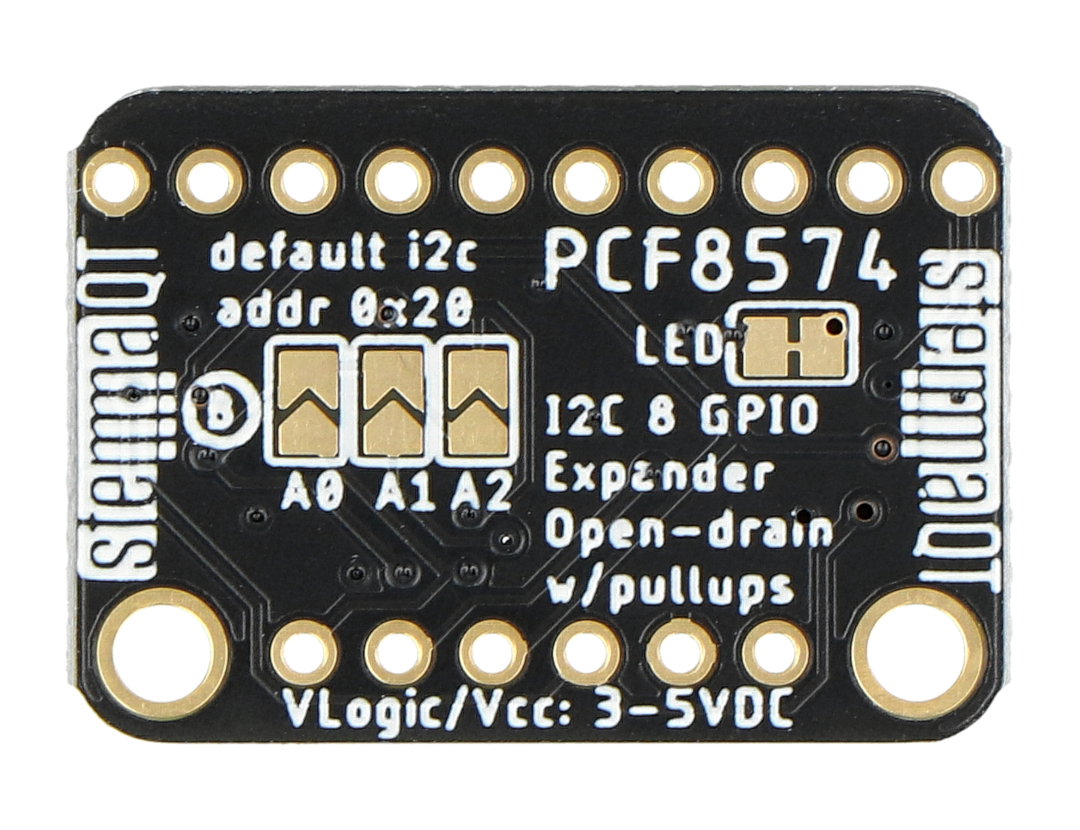

Pinout description
- VIN - power pin from 3 V to 5 V DC
- GND - the ground of the system
- SCL - clock line of the I2C bus
- SDA - data line of the I2C bus
- P0 - P7 - analog I / O
- INT - IRQ output pin
In the user guide you will also find the wiring diagram and libraries for Arduino and Raspberry Pi .
Technical specification of the module
- Type: GPIO pins expander
- Built-in chip: PCF8574
- Number of I / O: 8
- Communication interface: I2C bus
- Interface address: 0x20
- Supply voltage: 3 V to 5 V DC
- Conclusions:
- STEMMA QT / Qwiic connectors
- solder pads (goldpin connectors for self-soldering are included in the set)
- Module dimensions: 25.5 x 17.7 x 4.6 mm
- Weight: 1.7 g
Kit contents
- PCF8574 - GPIO pins expander - I2C - STEMMA QT / Qwiic - 1 piece
- Goldpin strip 1x16 pin - 2.54 mm raster - 1 piece
PCF8574 - GPIO pins expander from Adafruit.
