Product Description: Pine64 Quartz64 Model-A - Rockchip RK3566 ARM Cortex A55 Quad-Core - 4GB RAM
The Quartz64 minicomputer is manufactured by Pine64. Based on Rockchip RK3566 chip combined with ARM Cortex A55 quad-core and Mali-G52-2EE graphics chip. Equipped with 4GB of RAM, it doesn't have built-in storage, but it can be installed in the form of eMMC modules or microSD card. The Quartz64 also features a 0.8 TOPS neural network acceleration engine and RISC-V 32-bit CPU. It also has standard communication and GPIO interfaces, these are: PCIe x1, USB C 3.0 port, three USB 2.0 ports, Gigabit Ethernet, MIPI DSI, e-ink interface, eDP, touch panel interface, MIPI CSI and UART, SPI, I2C.

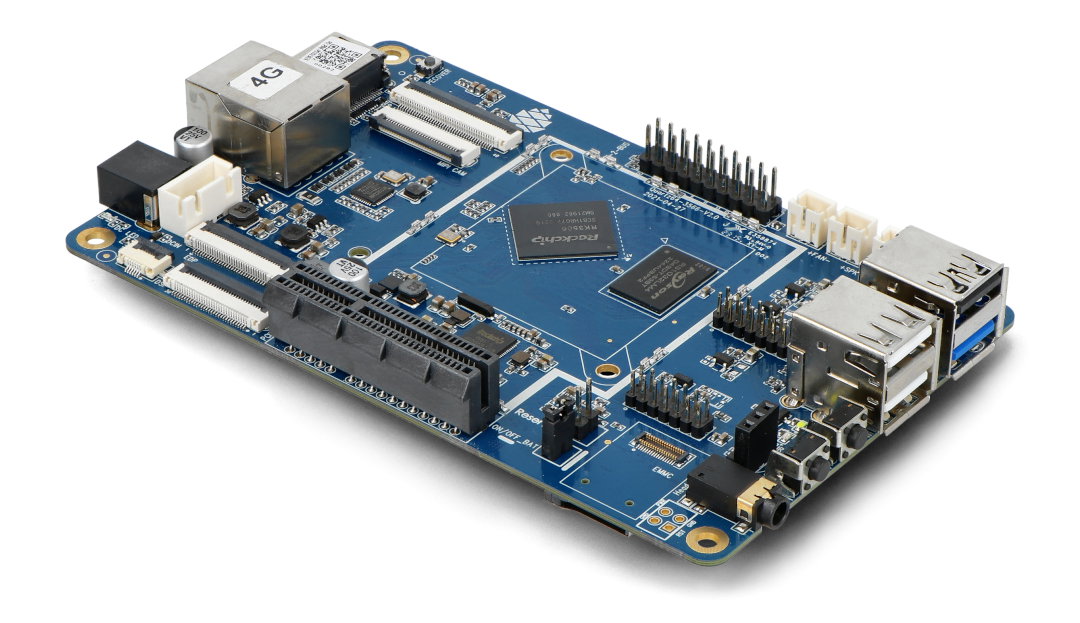

Pine64 Quart64 with neural network acceleration engine.

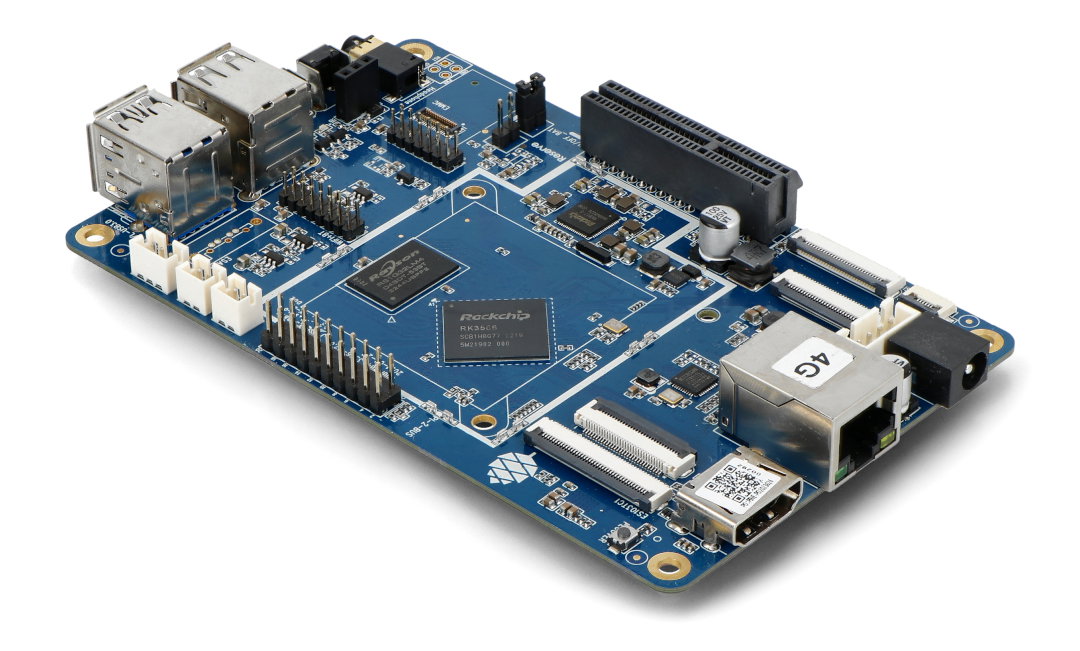

Pine64 Quartz64 minicomputer.What is needed to run the Quartz64 minicomputer?
- A microSD memory card - the medium on which the operating systemwill be installed
- AC adapter:
- 12 V / 3 A DC Jack 5.5 / 2.1 mm
- HDMI cable - to connect the device to a monitor
- Mouse and keyboard - to control and enter data into the device
- Connected Internet - to download software
Quartz64 power supply
Quartz64 minicomputer requires 12 V / 3 A power supply via DC 5.5 / 2.1 mm connector. The module is also equipped with a charging circuit for 3-pin Li-Pol 3.7 V packets with protection against too high temperature.
In our shop offer are also available 12 V / 3 A power supplies with DC 5.5 / 2.1 mm connector and Li-Pol 3.7 V batteries.

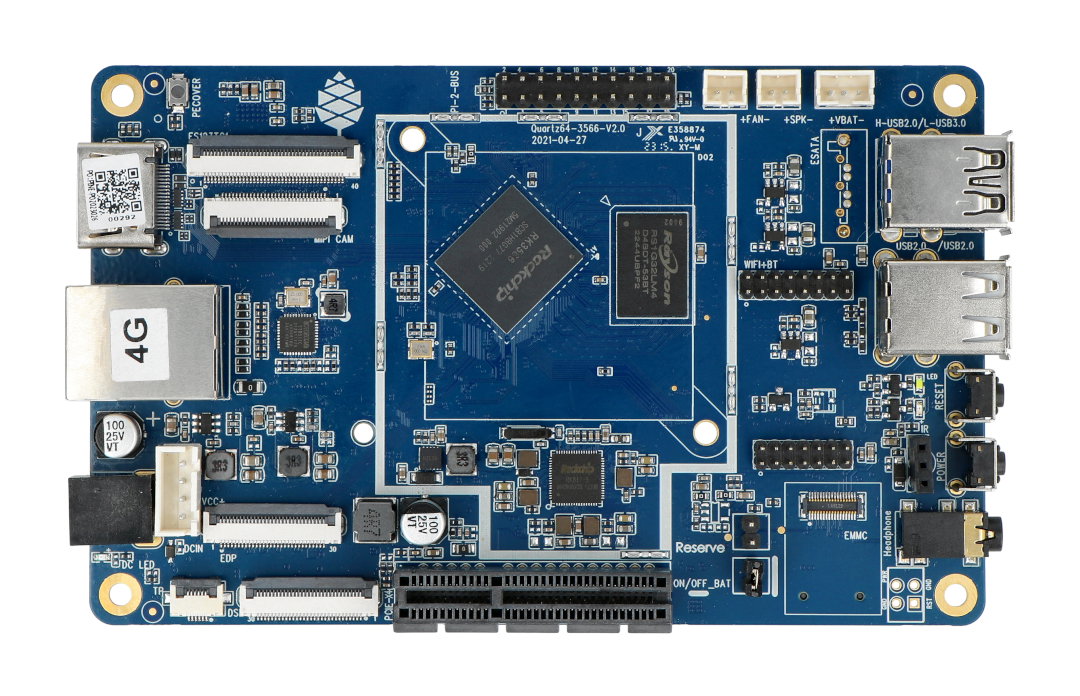

Quartz64 minicomputer equipped with DC 5.5 / 2.1 mm power connector.| Pine64 Quartz64 Minicomputer Specifications | |
|---|---|
| Chip | Rockchip RK3566 ARM Cortex A55 Quad-Core 64-bit RISC-V 32-bit CPU Neural Network Acceleration Engine 0.8 TOPS |
| Graphics chip | Mali-G52-2EE |
| Memory |
4 GB RAM microSD card slot |
| Display Interface |
eDP e-ink MIPI DSI - 4-line HDMI 4K@60fos 10-bit |
| Camera interface | MIPI-CSI - 4-lines |
| Human machine interfaces |
I2C touch panel port Optional IR port |
| Audio |
3.5 mm audio jack with microphone input 2-pin speaker port |
| Communications |
Gigabit Ethernet Optional SDIO WiFi / BT interface |
| Interfaces |
1x native USB 3.0 host port or 1x SATA 3.0 3x native USB 2.0 host ports PCIe x1 slot GPIO: I2C, SPI, UART |
| Battery |
Li-Pol charging system 3-pin 3.7V Li-Pol battery connector with overheat protection |
| Dimensions | 133 x 80 x 19 mm |
