Description: Qwiic - cable set - SparkFun KIT-15081
Set of gaining more and more popularityQwiiccables bySparkFun. Kit contains10 wireswith different lengths and contacts for connecting to your programming platform or contact board.
Qwiic allows you to connect sensors usingI2Cbus, thanks to them prototyping is faster and less prone to errors. Polarized connections mean you can't misconnect it. All Qwiic connectors have4-pinleads with a1 mmpitch.

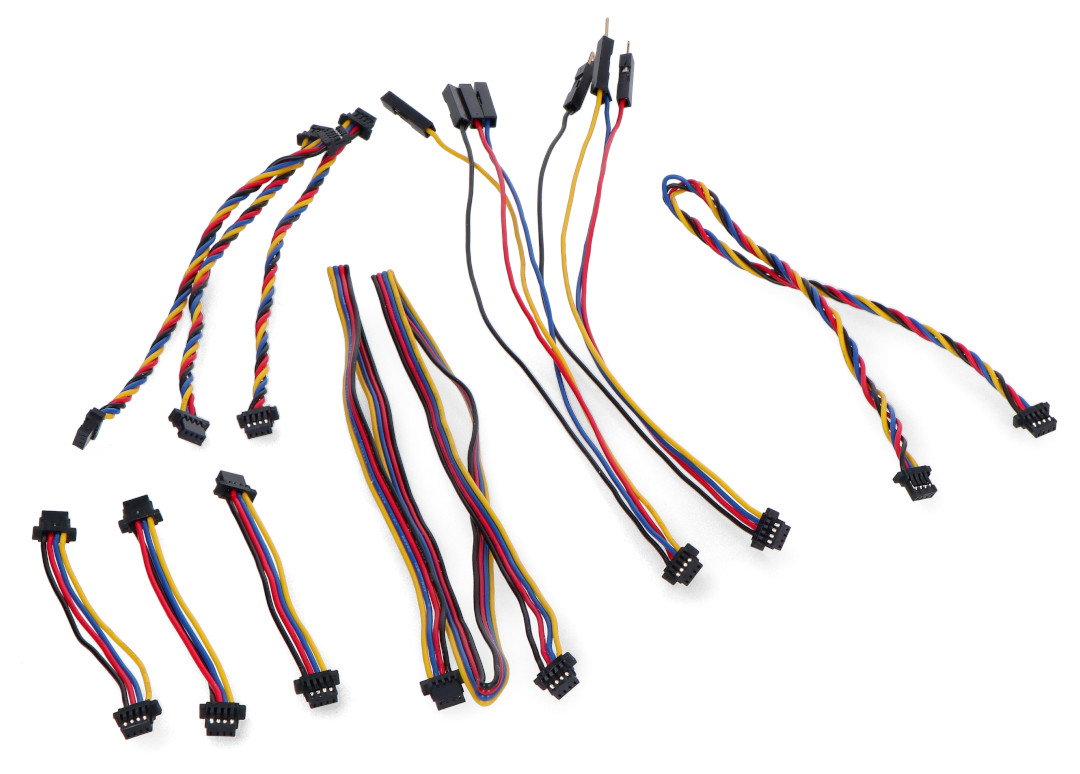

Qwiic flexible cable kit.

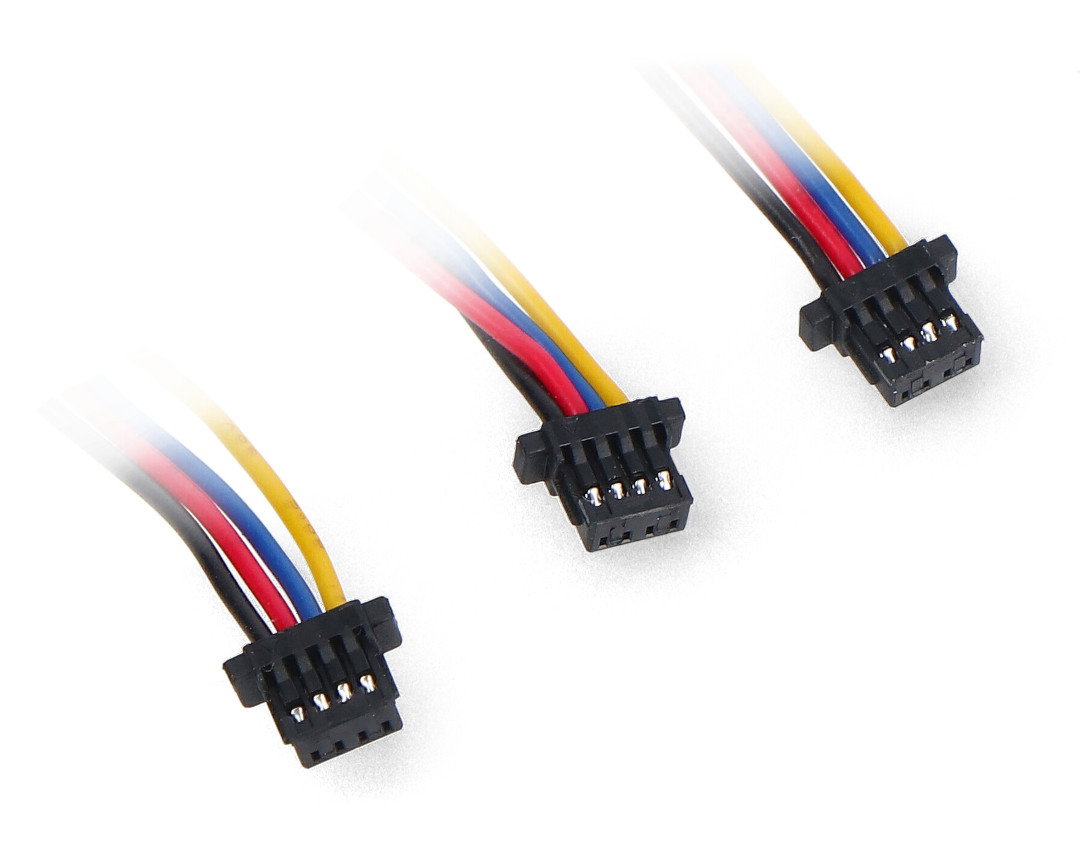

Qwiic cable terminated with a JST connector.
Qwiic cable set specifications
- Four core colour coded wires
- Black: ground - GND
- Red: 3.3 V supply voltage
- Blue: I2C bus data line - SDA
- Yellow: I2C bus clock line - SCL
- Different lengths
- 50 mm
- 100 mm
- 150 mm
- 200 mm
- 500 mm
The kit includes:
- Qwiic flexible cable - 50 mm
- Qwiic flexible hose - 100 mm
- Flexible hose Qwiic - 200 mm
- Flexible hose Qwiic - 500 mm
- Qwiic male hose with JST plug (4 pin) - 150 mm
- Qwiic female hose with JST plug (4 pin) - 150 mm
Qwiic Cable Kit - SparkFun KIT-15081.
