Description

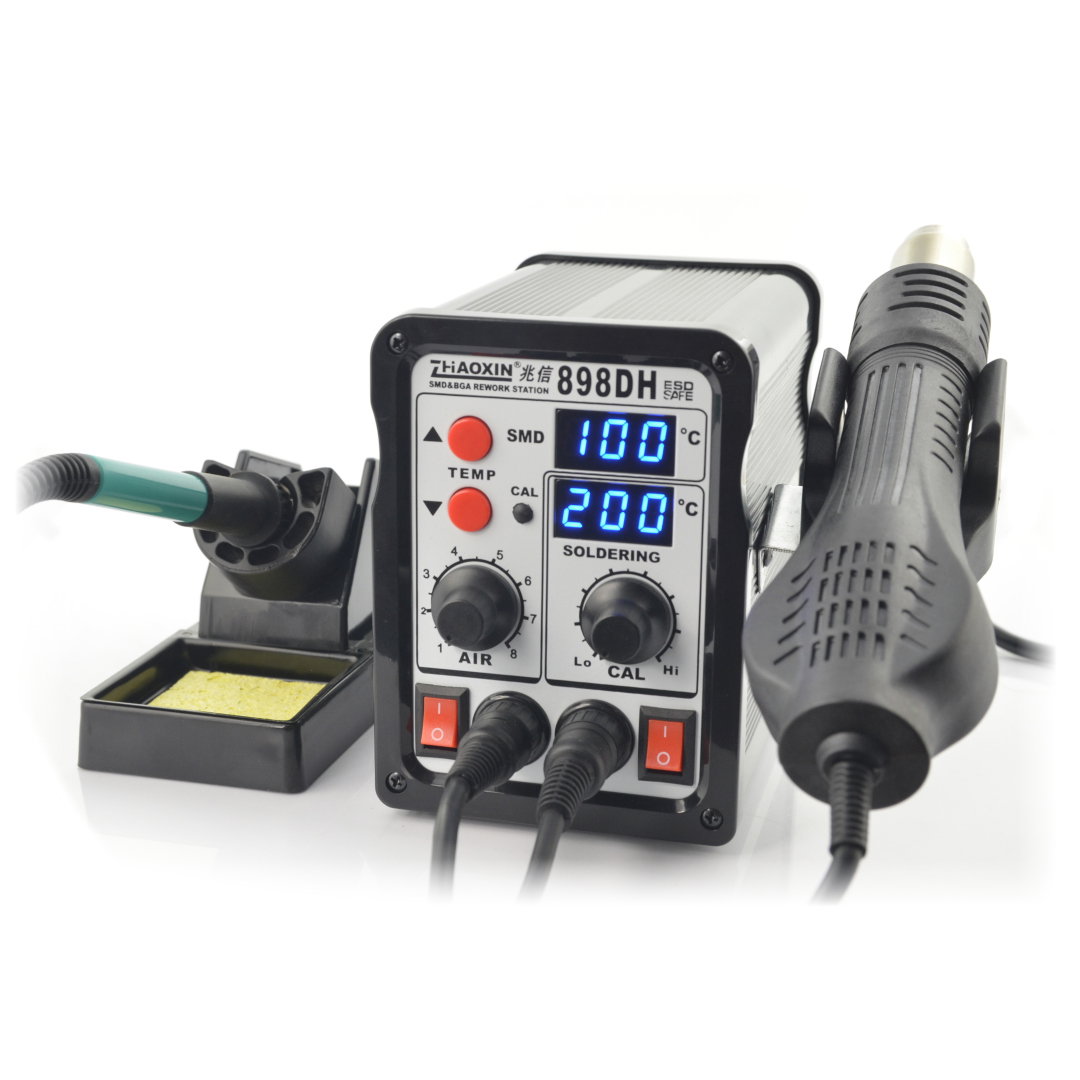

The station has two LED displays, from which the temperature of hot air and held soldering iron can be read. Adjusting the power of the fan is carried out via knob, temperature is set using the buttons in the range from 100 °C to 450 °C for hotair and from 200 °C to 480 °C for grotto soldering iron.
The device hasa sensor in the mount, whereby, when the bulb is put down, the station cool the heating element during the time from 3 to 8 minutes, then automatically switches the device tolow energy consumption mode (so-called standby mode). This mode allows to save energy, extend the viability of the heater and increases safety of work. Station remembers the last set temperature.
Stable and efficient air gust is done througha fan located in the flask. Is driven by a brushless motor that provides high durability and reliability.
Specification
- Supply voltage: 230 V / 50 Hz (network)
- Power:760 Watts
- The stationis controlled by the microcontroller which ensures a high stability of operation
- The device has astandby mode
- Remembers the last set temperature
- The station has an ergonomical housing
- Station has ESD Safe system (protection from damage to the CMOS chips through electrostatic charge)
Hotair Soldering Iron
- Adjustable temperature of hot airfrom 100 °C to 450 °C
- Temperature stability +/-1 °C
- Power:700 W
- LED display
- Temperature setting buttons
- Smooth adjustment of airflow a knob
- Airflowup to 120 l/min
- The head size of the hot air outlet - 22 mm
- Built-in inductive sensor in the flask (after putting down, goes intostandby mode)
- The venting is provided via fan placed in a flask
Grotto Soldering Iron
- Regulation of the soldering tip temperature from 200 °C to 480 °C
- Temperature stability +/- 1 °C
- Held soldering iron power:75 W
Included
- StationZhaoxin 898DH
- Mount for the flask hotair
- Set of nozzles:
- round with a diameter of 5 mm
- round with a diameter of 8 mm
- round with a diameter of 11 mm
- Mount for the grotto flask along with a cleaning sponge
- The grotto bulb Zhaoxin
|
First run
Note Heating elements (heaters) and the soldering tips, are not subject to warranty either expressed or implied, and their replacement is chargeable. |
Our offer has also accessoriesfor soldering:
- soldering binders - tins of various diameters
- fluxes and colophonies
- braid to remove excess of tin
- evacuators
- soldering tips
- tweezers,holders, magnifiers
- sponges and cloths
