Product description: STM32 NUCLEO-H563ZI - STM32H563ZIT6 ARM Cortex M33
The STM32 Nucleo-H563ZI is a versatile development board that has been designed with flexibility and performance in mind. It is based on the STM32H563ZI microcontroller with the ARM Cortex M33 core, which provides high performance, low power consumption, and a wide range of features. The Nucleo enables rapid prototyping using popular environments, such as STM32CubeIDE , as well as easy integration with additional modules thanks to compatibility with Arduino and ST morpho connectors. Equipped with a wide range of communication interfaces, including USB, UART, SPI, I2C and CAN , the board allows for quick and easy connection to other devices, making it an ideal tool for creating IoT applications, embedded systems and industrial solutions.
The manufacturer has prepared a detailed user guide that includes instructions on how to build and run a sample application.

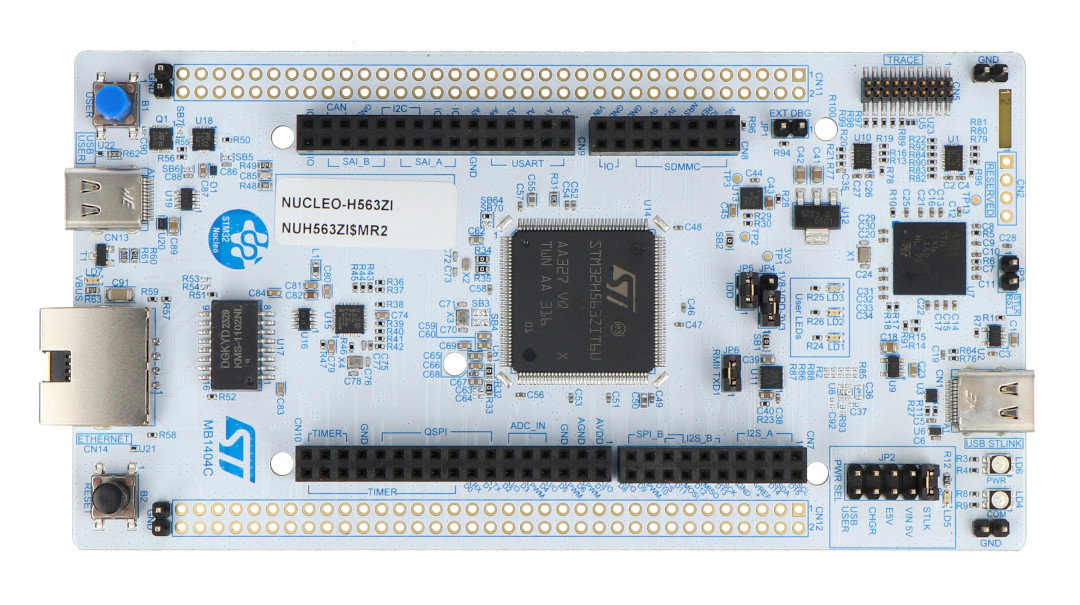

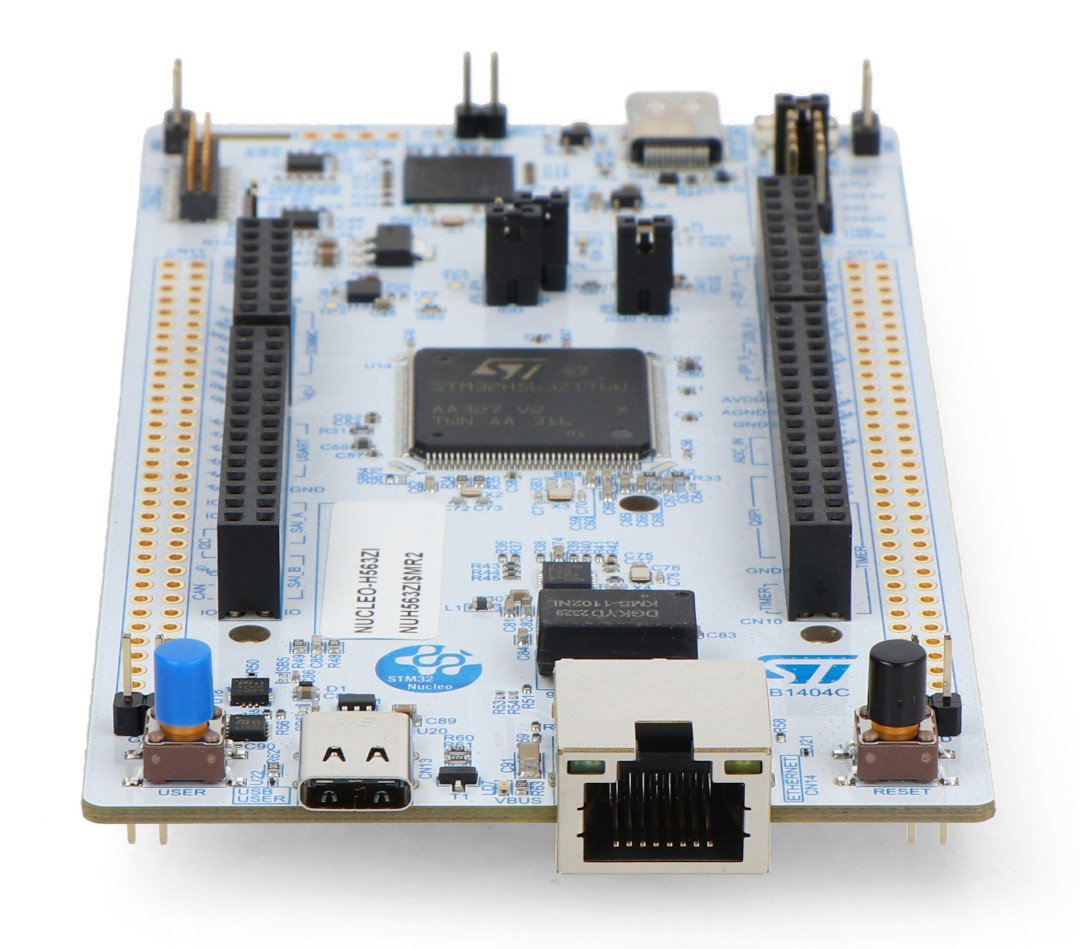

STM32 NUCLEO-H563ZI - STM32H563ZIT6 ARM Cortex M33.
Board with STM32 microcontroller in a 144-pin package.
Key Features of NUCLEO-H563ZI
- STM32H563ZI microcontroller : based on the ARM Cortex M33 core, providing high performance.
- Built-in ST-LINK/V3E programmer/debugger : enables easy programming and debugging without the need for additional devices.
- Compatibility with Arduino and ST morpho : enables expansion with additional modules and provides wide possibilities for project development.
- Wide range of interfaces : USB, UART, I2C, SPI and CAN support for easy communication with other devices.
- Flexibility in choosing the power source : USB powered or external source.
- Support for STM32CubeIDE and STM32CubeMX software : enables quick start and advanced configuration of the microcontroller.
Module Applications
- Prototyping IoT Devices and Embedded Systems
- Industrial Automation Projects
- Creation of monitoring and control devices and systems
- Applications requiring high computing power and advanced communication, such as embedded systems and consumer devices
- Educational and hobby projects using STM32 microcontrollers

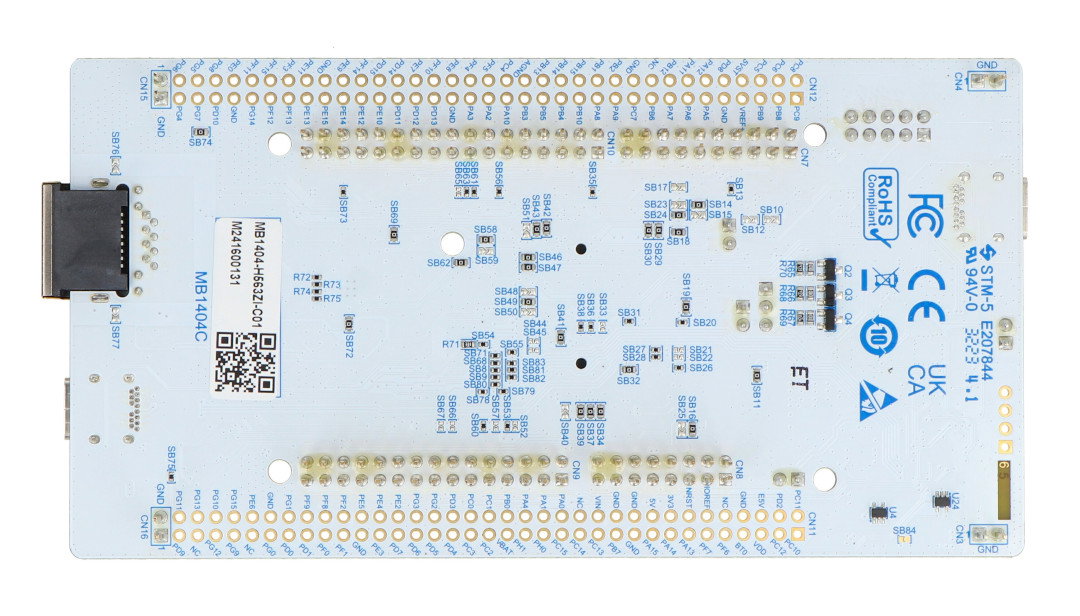

It uses a USB Type-C connector for power and communication with a computer.
Technical Specifications NUCLEO1Azcx1X3H563ZI
- Microcontroller: STM32H563ZI
- Core: ARM Cortex M33
- Clock speed: up to 250 MHz
- RAM: 640 KB
- Flash Memory: 2MB
- Power supply voltage: 5 V from USB or external power supply from 7 V to 12 V
- Communication interfaces: I2C, I3C, SPI, UART, USART, LPUART, CAN, USB 2.0 FS, SDMMC, DCMI, HDMI-CEC, FMC
- Number of GPIOs: 112
- Analog interfaces: 2x ADC 12-bit - 20 channels, 1x DAC 12-bit - 2 channels
- Expansion connectors:
- ST Zio (includes Arduino Uno V3 connector)
- ST Morpho
- SWD
- Supported software: STM32CubeIDE, STM32CubeMX
- Debugger: Built-in ST-LINK/V3E with SWD interface
- The disc also includes:
- 3 User LEDs
- 2 buttons: user and reset
- 32.768 kHz crystal oscillator
- RJ45 Ethernet Connector
- USB Type-C connector
- Collaborating environments: IAR, Keil, STMicroelectronics
