Solenoid Valve 12V - 0.02-0.8MPa with quickconnect

Index: MOD-09453 EAN: 5904422313388

The device supports the control of fluid flow using a computer or microcontroller. The valve is powered with the voltage of 12 V. The valve has a quickconnector of 6 mm. Pressure range: 0.02 to 0.8 MPa.

Solenoid Valve 12V - 0.02-0.8MPa with quickconnect
€6.50
€5.28 tax excl.
Available
Shipping in 24 hours
PayPal payment
12V solenoid valve - model:
Manufacturer: OEM

Description

The device supports the control of fluid flow using a computer or microcontroller, including Raspberry Pi or Arduino. The device is powered with the voltage of 12 V. The device has a quick connector of 6 mm Pressure range: 0.02 to 0.8 MPa.


Solenoid valve 12V - 0.02-0.8MPa with quick coupler. The sale is for 1 piece of the valve.

Attention!

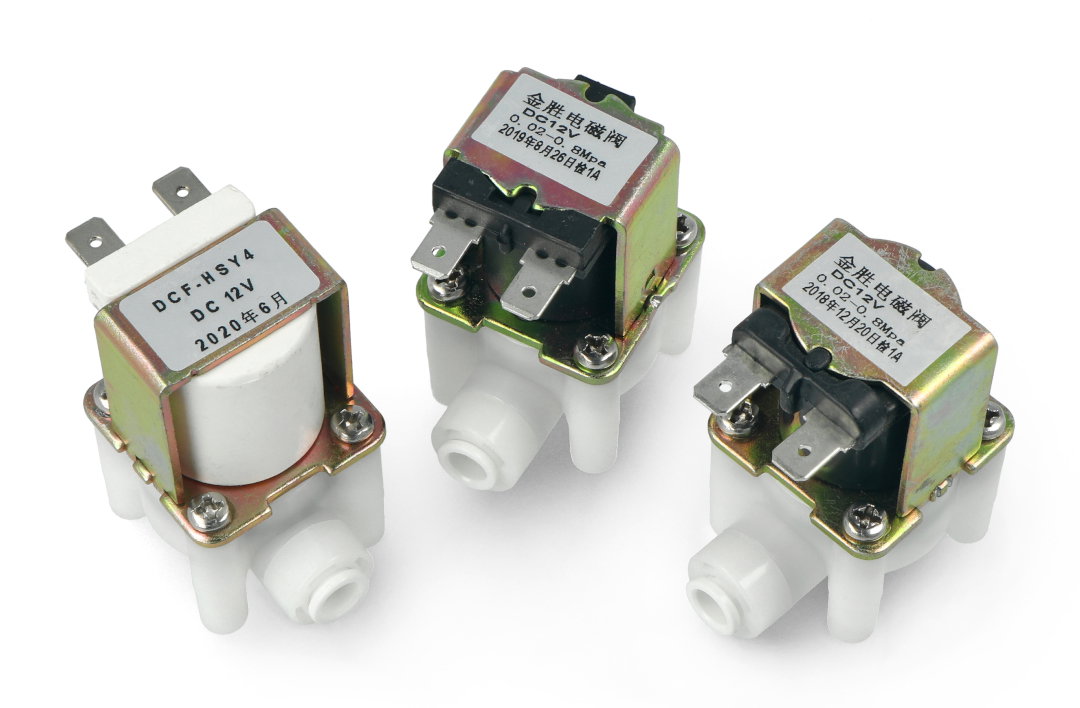

The metal angle that is part of the housing may slightly differ from the model shown in the photo. It does not affect the correct operation of the valve in any way.

Specification

  • Supply voltage: 12 V
  • Current consumption: approx. 450 mA
  • Closed in the rest position
  • Quick connector: 6 mm
  • Time of:
    • opening: < 0.15 sec
    • closing: < 0.3 sec
  • Pressure range: 0.02 to 0.8 MPa
  • Fluid temperature: 0 to 100°C

Package width 8 cm
Package height 3 cm
Package depth 11 cm
Package weight 0.103 kg

Mateusz

05/31/22

Question: I would like to ask 3 questions: what are the dimensions of this product (height, width)? How should I understand the diameter of the quick couplings (is it the inside/outside diameter)? Is the interior of the valve made of brass? I am anxious for a quick answer to the questions asked, because if the product meets my requirements, I would order it today. Thank you in advance for any answer.
Answer: The product is about 32 mm wide, length (measured with quick disconnects); 55 mm, height: about 58 mm.
6 mm is the inner diameter of the quick coupling, the outer diameter is about 10 mm.
Only the upper part of the valve is made of metal, the other parts are plastic.

Product reviews

Solenoid Valve 12V - 0.02-0.8MPa with quickconnect

4.7/5

Average grade

2

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Emilian 13.06.2024 Confirmed purchase Translated review
They work as expected, they are very fast. It is worth paying attention to the pressure, it is 0.8MPa, a 5 W peristaltic pump travels in a few seconds, in my application it does not matter at all.
Jerzy K. 17.04.2021 Confirmed purchase Translated review
Unfortunately, 0.02 is taken from the air and interrupts the inflow above 0.05, and then no comments. For R.O. very useful. Robust design does not leak at the couplings
