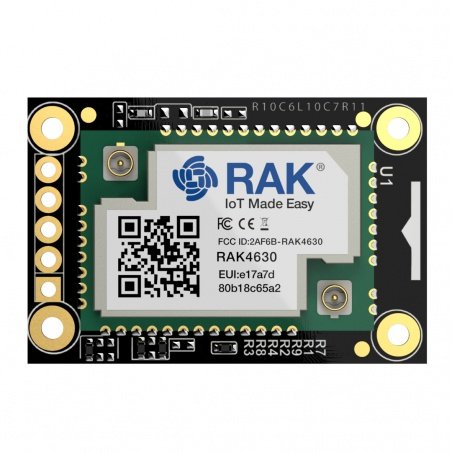

WisBlock LPWAN - WisBlock Core development module - Rak Wireless RAK4631

Index: SOC-18966 EAN: 5903351249478
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com
WisBlock LPWAN is a development module of WisBlock Core from Rak Wirelees. It is the core component of the WisBlock series system. It features the nRF52840 MCU with BLE 5.0 paired with Semtech's latest LoRa transceivers, the SX126x series. It features a 32-bit ARM Cortex-M4F processor, 1 MB of Flash memory and 256 kB of RAM. It is designed to work with WisBlock Base Board. The module features very low power consumption of 2 uA (in sleep mode). It has high LoRa output power of up to 22 dBm in transmission mode and supports BLE interface with up to 4 dBm output power.
€28.35
€23.05 tax excl.
On request. Waiting time 5-10 days.
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Rak Wireless

Product description: WisBlock LPWAN - WisBlock Core developer module - Rak Wireless RAK4631

WisBlockLPWAN is a WisBlock Core development module from Rak Wirelees. It is a basic component of WisBlock series system. It features the nRF52840 MCU with BLE 5.0 paired with Semtech's latest LoRa transceivers, the SX126x series. It features a 32-bit ARM Cortex-M4F processor, 1 MB of Flash memory and 256 kB of RAM. It is designed to work with WisBlock Base Board. The module features very low power consumption of 2 uA (in sleep mode). It has high LoRa output power, up to 22 dBm in transmission mode and supports BLE interface with output power up to 4 dBm.

Skład systemu WisBlock.

WisBlock System Composition.

WisBlock series

WisBlock series modules are an ingenious solution developed by Rak Wireless, which allows to create complex IoT projects. They are used both in advanced scenarios and in basic projects. They are used not only for rapid deployment of engineering prototypes, but are also designed to create massive applications, ready for industrial deployment. The WisBlock system includes the WisBlock Base Board, WisBlock Core development module, WisBlock Sensors and WisBlock IO expansion modules.

WisBlock LPWAN assembly

The WisBlock LPWAN development module is designed to work with the WisBlock Base Board. It enables simple and convenient prototyping, testing of various types of sensors, and application development. It can be powered in three ways: via USB C port, Li-Pol battery or solar panel. It is equipped with six slots: one slot for the WisBlock Core developer module, four slots for WisBlock Sensors, and one slot for WisBlock IO expansion modules.

Rysunek przedstawia instrukcję montażu modułu deweloperskiego WisBlock LPWAN i płytki bazowej WiskBlock Base Board.
The figure shows the installation instructions for the WisBlock LPWAN developer module and the WiskBlock Base Board.
WisBlock LPWAN - moduł deweloperski WisBlock Core

WisBlock LPWAN - WisBlock Core development module.

Technical specification of the WisBlock LPWAN module

  • Microcontroller: nRF52840
    • MCU with very low power consumption
    • 32-bit ARM Cortex-M4F processor
    • processor clocking: 64 MHz
    • Flash memory: 1 MB
    • RAM: 256 kB
  • Chip: SX1262 LoRa
    • low power consumption, wide range
    • LoRa transceiver
  • Supported protocols: LoRaWan 1.0.2 and Bluetooth Low Energy 5.0
  • Supply voltage: 2 V to 3.6 V
  • Power consumption: 2 µA
  • I/O Ports: UART, I2C, GPIO, USB
  • SPI pins and optional NFC interface are available via WisBlock IO module
  • LoRa PA Boost mode with output power: 22 dBm
  • Bandwidth of supported wireless systems: 7.8 kHz to 500 kHz
  • Serial Wire Debug (SWD) interface
  • Operating temperature: from -40°C to 85°C
  • Dimensions: 30 x 20 mm
UC - Microcontroller nRF52840
