Product description: ESP32 Starter Kit with ESP32 WiFi module
A kit consisting of modules and sensors to get you started and learn how theESP32module works. The kit includes a module based onESP-WROOM-32chip, which is equipped withWiFiandBluetooth Low Energycommunication. The kit includes elements such as: a contact board, connecting wires,temperatureand humidity sensor, PIR distance and motion sensor, OLED screen, relay module,LEDsand resistors. With their use you can create projects that measure environmental conditions and projects such as remote lighting control.
A starter kit with the ESP32 module.
A set with the ESP32 module.Application of the ESP32 module
The board withESP32chip is widely used, thanks to the possibility of WiFi and Bluetooth LE communication you can createIoTprojects e.g. to measure temperature and humidity or remote control of 230V devices using a relay. ESP32 modules are also used in smart building systems asnodesthat allow you to add new elements to the systemwithout running additional wires. Simply connect and program the sensor / module to the ESP32 board and integrate it into an existing home automation system such as Domoticz, Home Assistant orFibarocontrol panels.
Contents of ESP32 Starter Kit
| L.p. | Picture | Description |
|---|---|---|
| 1 |  |
ESP32module - based on ESP-WROOM-32 chip, with 30 I/O pins and WiFi / Bluetooth LE communication. |
| 2 |  |
830 field contact board- a large board with separate power lines for creating electronic circuits. |
| 3 |  |
Set of 5mm LEDs (30 pcs)- 10 pcs each of red, green and yellow components. |
| 4 |  |
Connection wires 65 pcs male - male -enable creation of connections on the contact plate. |
| 5 |  |
Connectingwires 40 pcs female - female -allow to create connections between modules and ESP32 board. |
| 6 |  |
A set of resistors (200 pcs)- 20 of each of the most popular values that enable e.g. connection of LED diodes. |
| 7 |  |

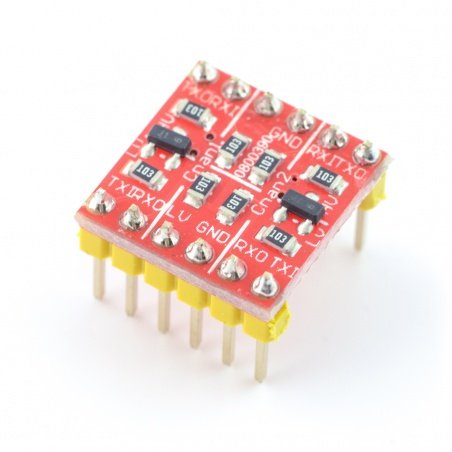

Logic level converter - a module that converts 3.3 V <-> 5 V, allowing you to connect modules working with 5 V to the ESP32 chip working with 3.3 V. |
| 8 |  |
A set of tact switch buttons- will serve as an element inputting data to the module. |
| 9 |  |

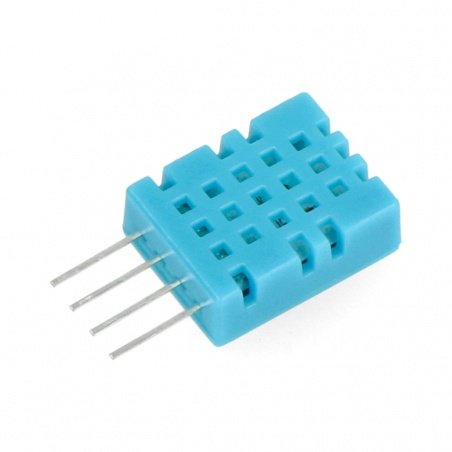

DTH11 sensor- a sensor that allows to measure temperature and humidity. |
| 10 |  |
HC-SR04 ultrasonic distance sensor- the sensor enables distance measurement in the range of 2 cm to 200 cm. |
| 11 |  |
OLEDdisplay - 1.3" screen allowing to e.g. display sensor data. |
| 12 |  |
PIR motion sensor- allows to detect movement within a range of 7 m. |
| 13 |  |
MicroUSB cable- a cable for powering and programming the ESP32 module. |
| 14 |  |

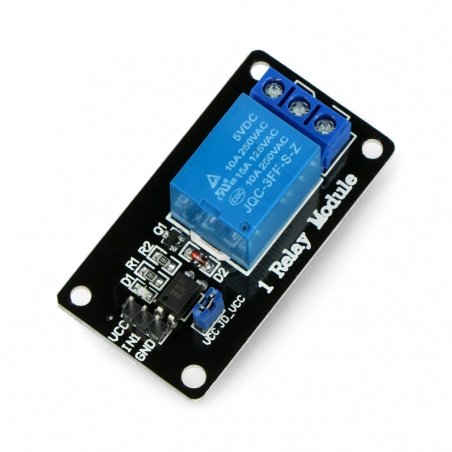

Relay module- allows you to control devices with higher voltage up to 230 V AC / 10 A. |
| 15 |  |
DS18B20 temperature sensor- a popular sensor that allows to measure temperature in the range of -55°C to 125°C. |
|
16 |
 |

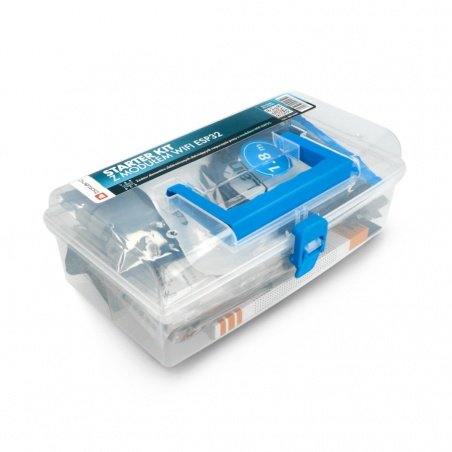

Organizer for easycarrying of the set. |
