Product description: Odroid Go Super - Portable gaming console - Clear White

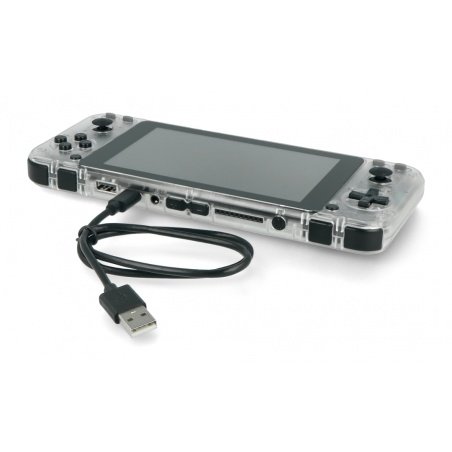

Odroid Go Super console in a translucent white casing. The device is equipped with a 5-inchLCD display, whose resolution is854x480 px. Screen has been additionally reinforced tempered glass, so its resistance to mechanical damage has been increased. Module is powered byLi-Pol batterywith a capacity of4000 mAh. It allows for about 10 hours of gameplay depending on the load of the device. Unlike theOdroid Go Advanceconsole, this version has beenpre-assembled. Console does not have a built-in wireless communication module, however, it can be extended by using USBWiFiorBluetoothadapters.
Console connectors.
Console connectors
The console has a10-pinGPIO connector, which consists of7 input/outputconnectors, a5Vpower connector, a3.3Vpower connector and aGNDconnector. The connector layout of the module is as follows:
| Pin | Description |
|---|---|
| 1 | GND |
| 2 | GPIO3_C1 IN / OUT I2S0_8CH_MCLK |
| 3 | GPIO3_C2 IN / OUT I2S0_8CH_LRCKTX / TDM_FSYNC |
| 4 | GPIO3_C3 IN / OUT I2S0_8CH_SCLKTX / TDM_SCLk |
| 5 | GPIO3_C4 IN / OUT I2S0_8CH_SDO0 / TDM_SDO |
| 6 | 3,3 V |
| 7 | GPIO3_C5 IN / OUT I2S0_8CH_SDI0 / TDM_SDI |
| 8 | GPIO3_C6 IN / OUT |
| 9 | GPIO3_C7 IN / OUT |
| 10 | 5 V |
Installation of the system
The operating system recommended by the manufacturer isLinux Ubuntuwith an emulator installed. Properly prepared system is available on the manufacturer'swebsite. The installation process is identical to installing systems for minicomputers. The system should be moved to thememory cardusing a program allowing to flash the cards. The manufacturer recommends the use of memory cards with a capacity of no less than 4 GB.
The console is charged using a USB C connector. An appropriate cable is included in the set.
Technical specifications
| Parameter | Description |
|---|---|
| CPU | RockChip RK3326 (Quad-Core ARM 64-bit Cortex-A35 1.3 GHz) |
| GPU | Mali-G31 MP2 |
| RAM | 1GB DDR3L, 786 MHz |
| Memory |
|
| Display | 5-inch TFT LCD display, resolution: 854 x 480 px |
| Audio | Jack connector for connecting headphones |
| Power supply | Li-Pol 3.7 V / 4000 mAh rechargeable battery |
| Operating time on a single charge | Up to 10 hours, depending on the brightness of the display backlight |
| Connections |
|
| Buttons | F1, F2, F3, F4, F5, F6, A, B, X, Y, 2 x side buttons, crosshairs, 2 x analogue knobs |
| Wireless communication | None, USB adapters can be used |
| Current consumption | 350mA to 600mA |
| Battery charging time |
|
| Dimensions | 204 x 86 x 25 mm |
| Weight | 280 g |
