DC Power BFF Add-On - power module with 5V converter - for QT Py and Xiao - Adafruit 5882

Index: ADA-25277 EAN: 5904422386351

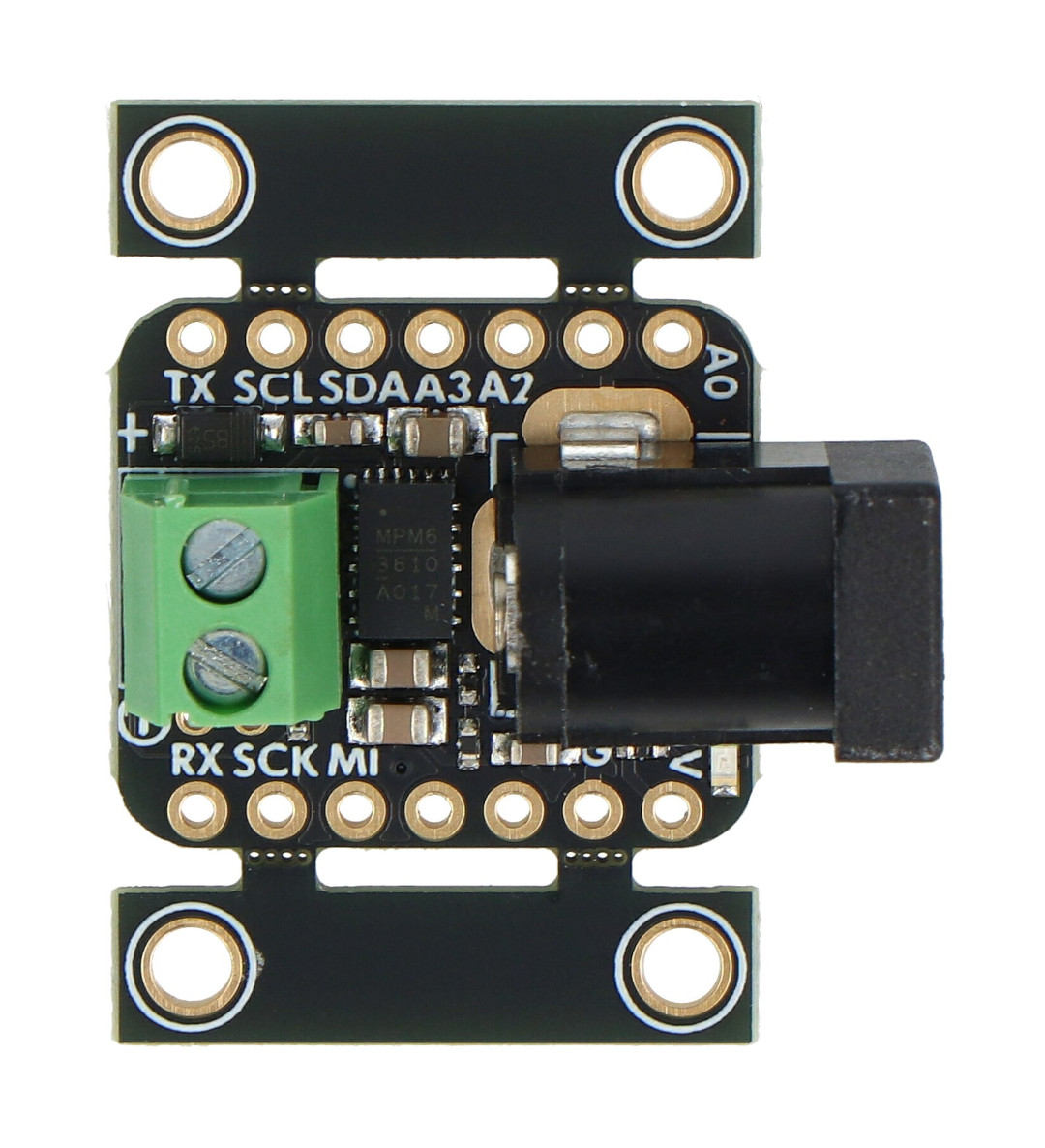

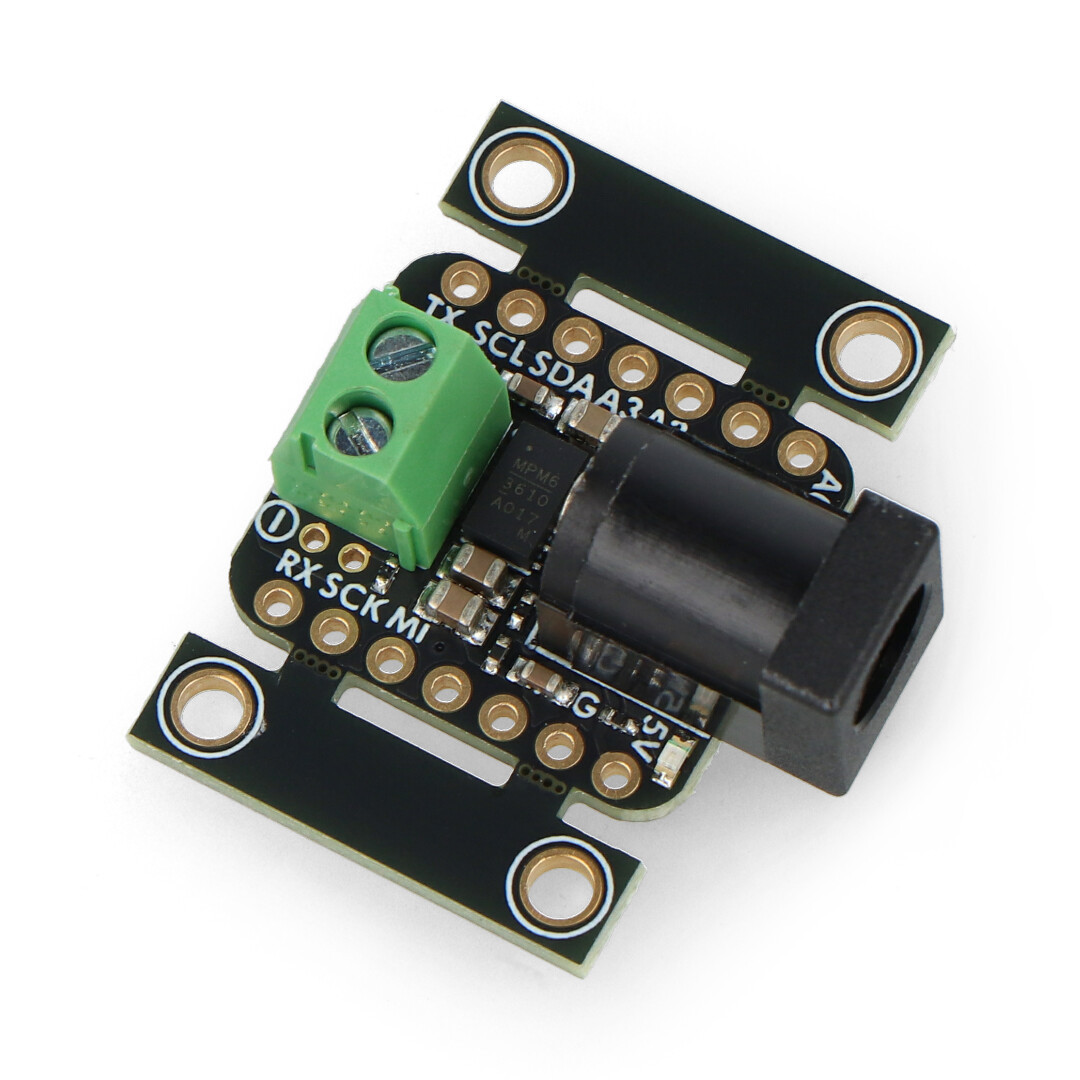

Adafruit DC Power BFF is a compact shield that allows you to power QT Py or Xiao boards with up to 20V DC . Thanks to the built-in MPM3610 converter, it effectively converts the input voltage to a stable 5V, without the need for radiators. The device has universal connectors: 3.5mm screw and 2.1mm DC socket , protected by a Schottky diode .
DC Power BFF Add-On - power module with 5V converter - for QT Py and Xiao - Adafruit 5882
€10.90
€8.86 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit

Product description: DC Power BFF Add-On - power supply module with 5V converter - for QT Py and Xiao - Adafruit 5882

Adafruit DC Power BFF is a compact shield that allows you to power QT Py or Xiao boards with up to 20 V DC . Thanks to the built-in MPM3610 converter, it effectively converts the input voltage to a stable 5 V , without the need for radiators. The module provides up to 1 A , which is enough to power LEDs , WiFi modules , displays or small motors . The module has universal connectors: 3.5 mm screw and 2.1 mm DC socket, protected by a Schottky diode . For stable mounting of the QT Py board, the set includes sockets for easy integration with the project.

DC Power BFF Add-On - 5V Converter Power Supply Module - for QT Py and Xiao - Adafruit 5882 DC Power BFF Add-On - power supply module with 5V converter - for QT Py and Xiao - Adafruit 5882.
DC Power BFF Add-On - 5V Converter Power Supply Module - for QT Py and Xiao - Adafruit 5882 The Adafruit DC Power BFF is a compact shield that lets you power your QT Py or Xiao boards with up to 20V DC.

Special Features

  • Higher voltage power supply: allows you to power your QT Py or Xiao boards from 5V to 20V DC, ideal for projects that require more power flexibility
  • Built-in MPM3610 converter: advanced buck converter transforms input voltage to stable 5V, ensuring reliability and energy efficiency
  • High current support: The maximum output current is 1A, which allows you to power a variety of components such as LEDs, WiFi modules or small motors.
  • Universal Connectors: Equipped with a 3.5mm screw connector and a 2.1mm DC jack, making it easy to connect to various power sources
  • Power Protection: Schottky diode protects the circuit from accidental short circuits or reverse polarity
  • Stable mounting: the set includes sockets that allow for safe and permanent mounting of the QT Py board on the top of the module

DC Power BFF Add-On Technical Specifications

  • Input voltage range: 5V to 20V DC
  • Output voltage: 5V DC
  • Maximum output current: 1 A
  • Converter: MPM3610 (buck converter)
  • Power connectors:
    • Screw 3.5mm
    • DC jack 2.1mm
  • Protection: Schottky diode for reverse polarity protection
  • QT Py/Xiao board mounting: on top of the module using the included sockets
  • Dimensions: 30.4 x 26.6 x 12.6 mm
  • Weight: 4.9 g

Kit Contents

  • Adafruit DC Power BFF Module
  • 3.5mm screw connector (installed)
  • 2.1mm DC jack (installed)

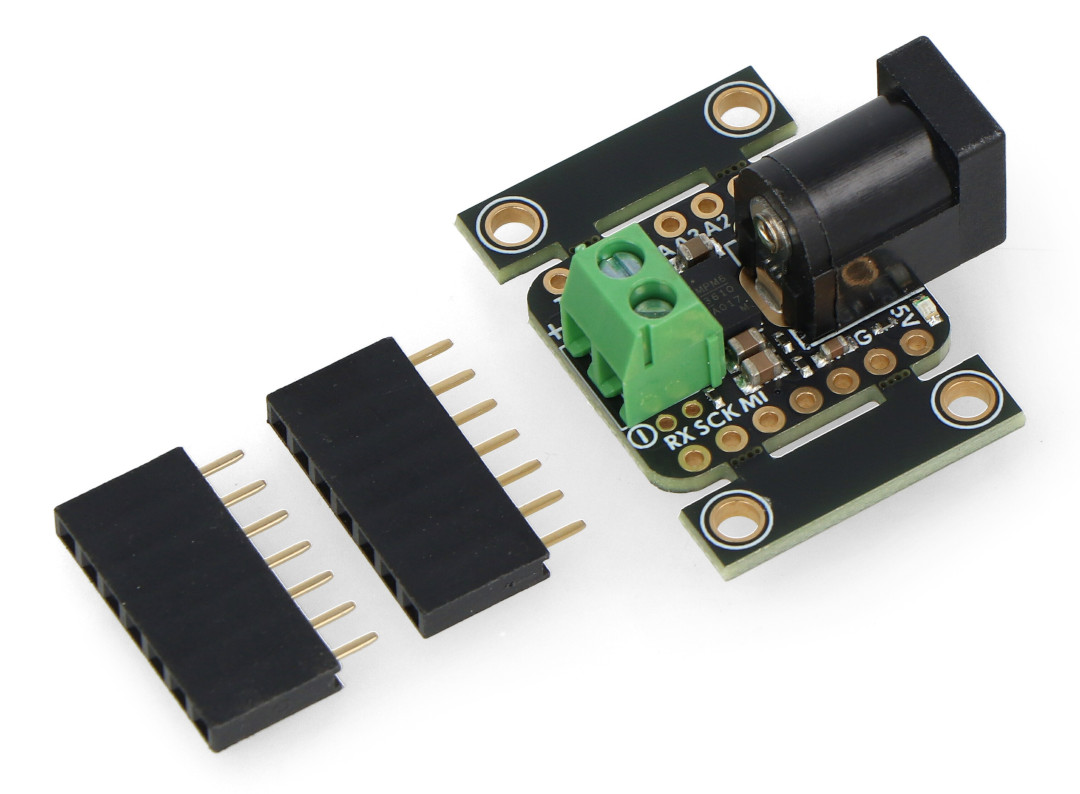

  • Sockets for mounting the QT Py or Xiao board
DC Power BFF Add-On - 5V Converter Power Supply Module - for QT Py and Xiao - Adafruit 5882 For stable mounting of the QT Py board, the set includes sockets enabling easy integration into the project.

Package width 7.5 cm
Package height 12 cm
Package depth 1.5 cm
Package weight 0.008 kg
