Product description: Inventor HAT Mini - robot controller - shield for Raspberry Pi - PiMoroni PIM672
Inventor HAT Mini is a versatile add-on that opens up a wide range of possibilities for Raspberry Pi in the field of robotics and creating interactive projects. The overlay allows you to connect two motors, four servomechanisms and a loudspeaker . The heart of Inventor HAT Mini is the Nuvoton MS51TC0AE microcontroller. The DRV8833 system is responsible for controlling the motors, and the sound is handled by the MAX98357 amplifier. In addition, the board has 8 addressable RGB Neopixels diodes, a programmable button, a STEMMA QT / Qwiic connector and a 40-pin GPIO loop-through connector, thanks to which the module can be expanded with various sensors , buttons or LEDs .
The set does not include Raspberry Pi , motors , servomechanisms and speakers - they must be purchased separately.

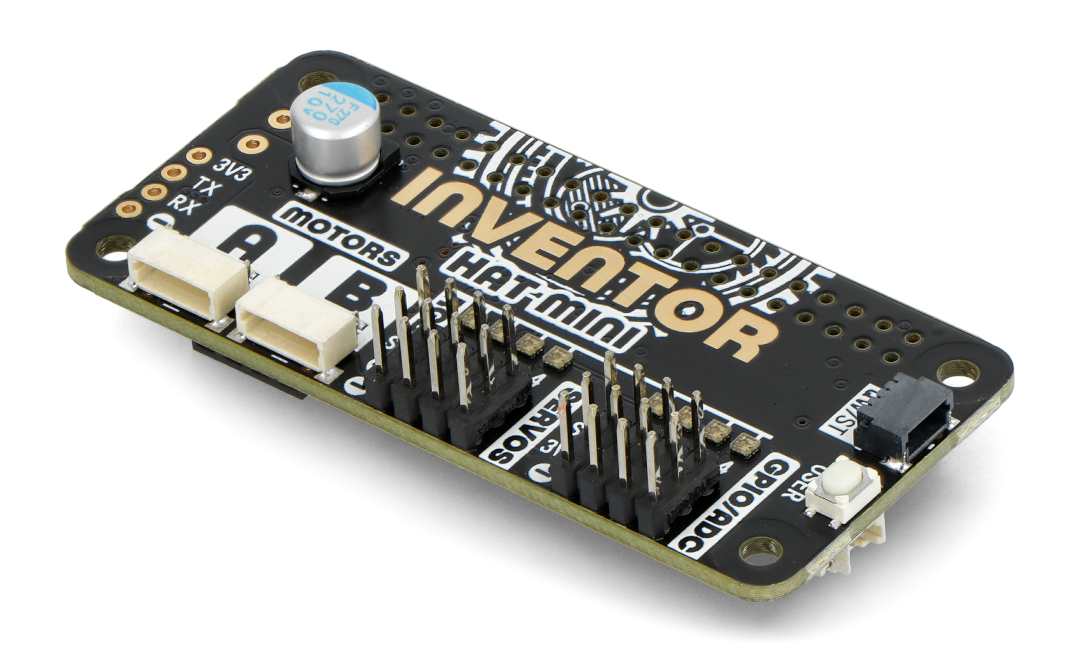

Inventor HAT Mini - robot controller - shield for Raspberry Pi - PiMoroni PIM672.

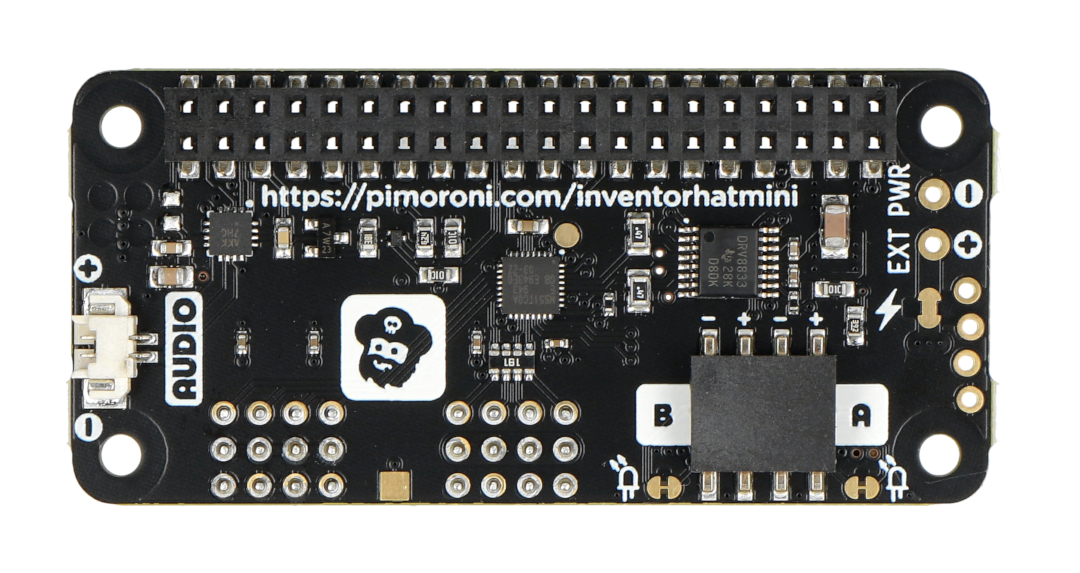

Inventor HAT Mini expands the capabilities of Raspberry Pi.
Main features of the overlay
- Nuvoton MS51TC0AE microcontroller - provides built-in 16-bit PWM and 12-bit analog-to-digital converter
- DRV8833 motor controller - allows you to connect and control two motors with encoders, also offering the possibility of limiting the current at 425 mA for each motor and indicators of the motor rotation direction
- MAX98357 3.2W I2S mono amplifier - used to connect and control a speaker, allowing you to add sound effects to your projects
- 8 addressable RGB Neopixels LEDs - allow you to create visual effects and can serve as indicators for various functions
- Programmable button
- STEMMA QT / Qwiic connector - makes it easier to connect expansion modules
- 40-pin GPIO pass-through connector - allows you to expand the module with various sensors, buttons or LEDs
- Wide Raspberry Pi compatibility - designed to work with all Raspberry Pis with a 40-pin GPIO connector
Technical specifications of the overlay
- Purpose: Raspberry Pi with a 40-pin GPIO connector
- Built-in chip: Nuvoton MS51TC0AE
- Motor driver: H-Bridge DRV8833
- Audio amplifier: MAX98357 I2S 3.2W
- Indicators: 8 addressable RGB Neopixels LEDs
- Programming environment: Python
- Dimensions: 65 x 30.5 x 15.5 mm

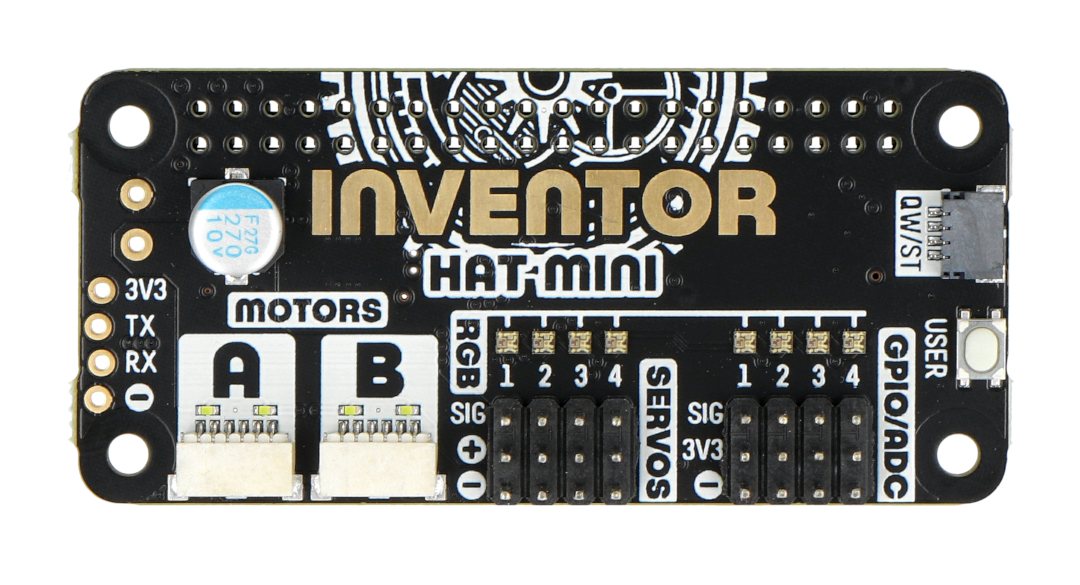

The subject of sale is only the overlay. Raspberry Pi is not included.
