Servo driver 16-channel, 16-bit PWM do Raspberry Pi Pico - Waveshare 19767

Index: WSR-19721 EAN: 5904422347277

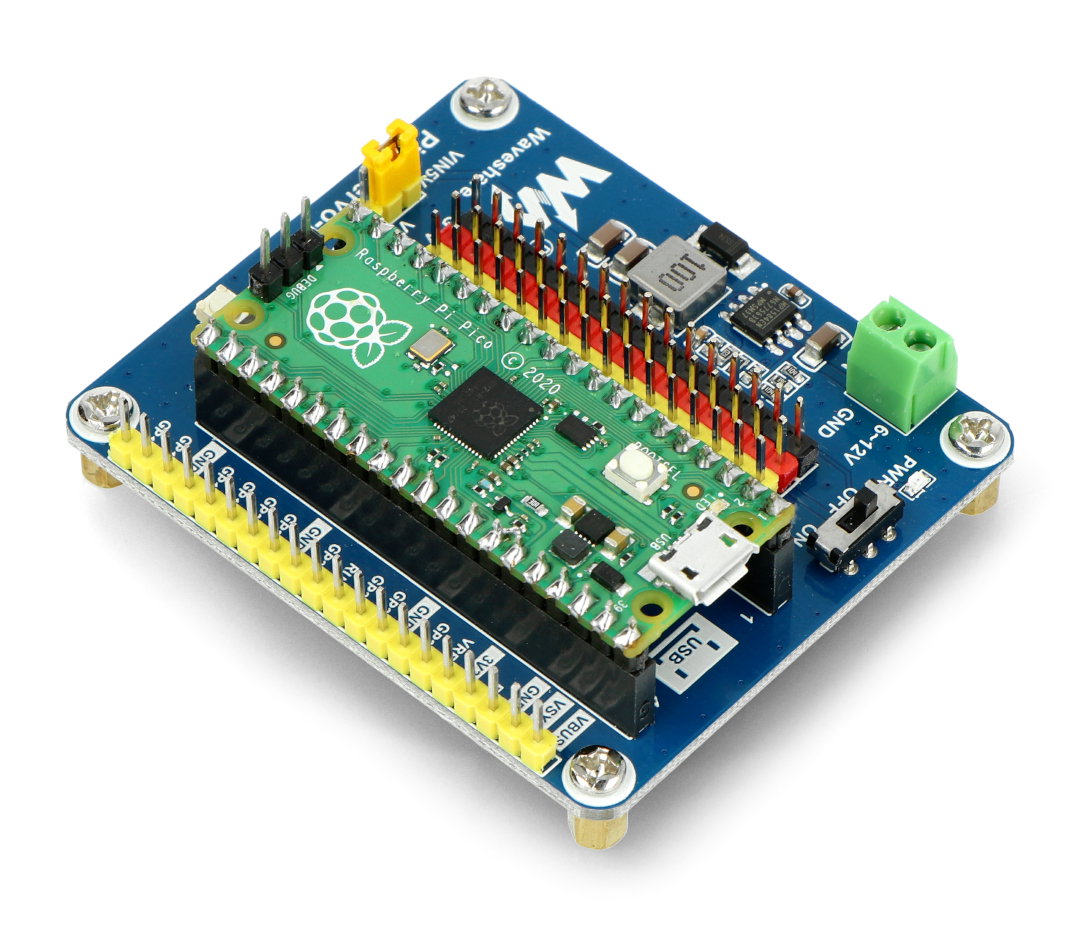

Expansion module for Raspberry Pi Pico to control 16 servos with 16-bit resolution. It uses PWM interface for communication. The module is also equipped with an output voltage regulator 5 V / max. 3 A allowing battery power supply via VIN pin.
Servo driver 16-channel, 16-bit PWM do Raspberry Pi Pico - Waveshare 19767
€10.50
€8.54 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: 16-channel, 16-bit PWM servo controller for Raspberry Pi Pico - Waveshare 19767

Expansion module forRaspberry Pi Picoto control16servoswith 16-bit resolution. It usesPWMinterface for communication. The module is additionally equipped with an output voltage regulator 5 V / max 3 A allowing battery power supply via VIN pin.

Main features of the servo controller

  • Standard Raspberry Pi Pico connector
  • 16-channel servo / PWM, 16-bit resolution for each channel
  • Built-in 5V voltage regulator, maximum output current 3A, allows battery power via VIN pin
  • Standard servo interface
  • Unused GPIO pins on male goldpin connector
Sterownik serw do Raspberry Pi PicoServo controller for Raspberry Pi Pico.
This product is for sale, Raspberry Pi Pico module can be purchased separately.

Product compatible withRaspberry Pi Pico

The manufacturer provides aproduct wiki pagewhich contains information about the module's pinouts and a detailed user guide.

Wyprowadzenia sterownikaController Pinouts.

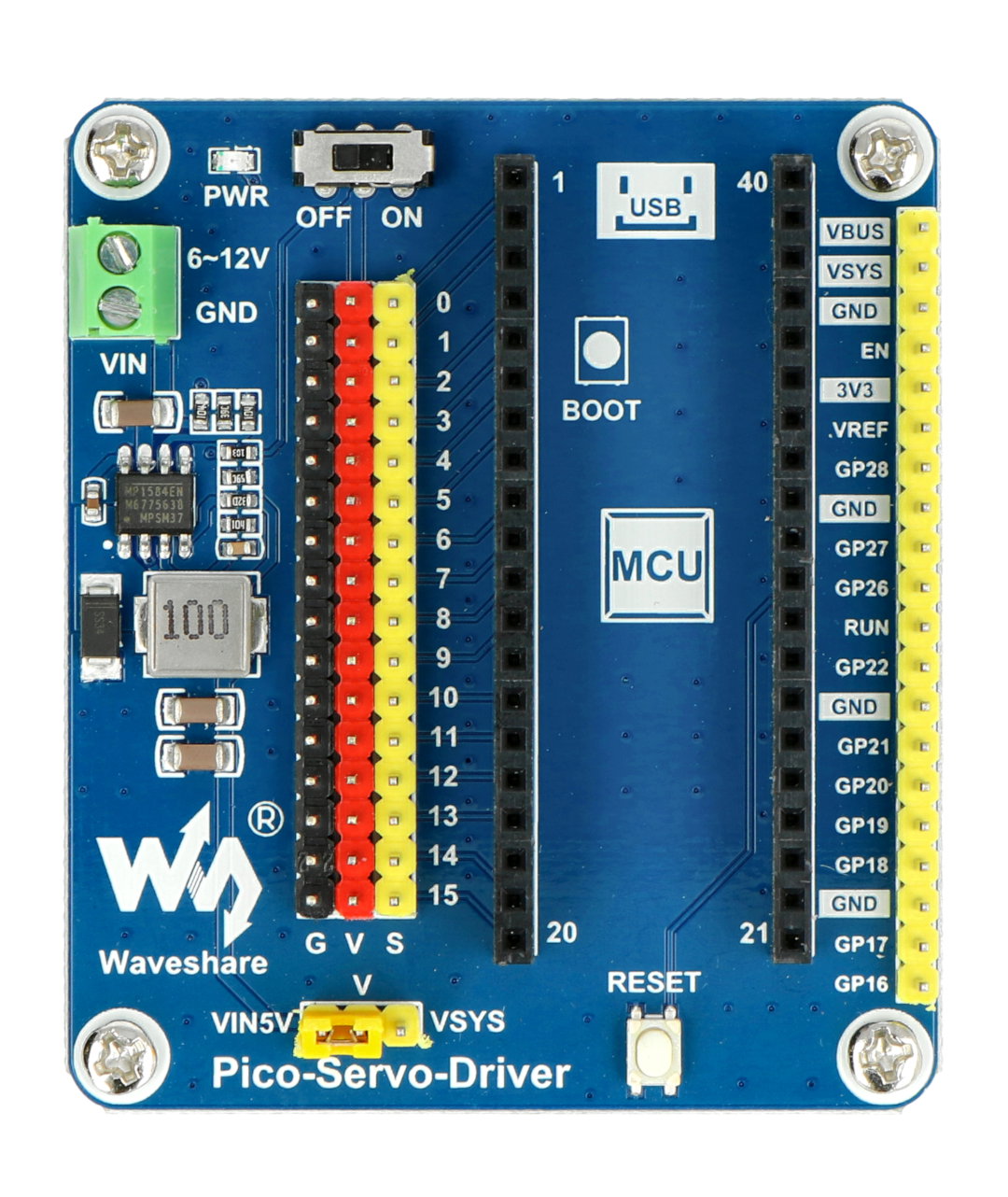

Leads of the servo controller

The controller module comes with a connector where you can plug in the Raspberry Pi Pico module. There is also a male goldpin strip on the board that is not used by the Raspberry Pi Pico GPIO drivers and connectors for connecting servos. The controller uses pins such as:

  • VSYS - 5V supply voltage
  • 3V3(OUT) - supply voltage 3.3 V
  • GND - system ground
  • GP(0-15)|PWM(0-15) - servo outputs

Other servocontrollersandservosare also available in the range of our store.

Servo controller specifications

  • Supply voltage: 5 V (Pico) or from 6 V to 12 V (VIN connector)
  • Logic voltage: 3,3 V
  • Servo logic voltage: 5 V
  • Control interface: GPIO
  • Mounting holes: 3 mm
  • Dimensions: 65 x 56 mm
Sterownik serwomechanizmów

Servo controller for Raspberry Pi Pico.

Voltage to 5.0 V
Voltage from 12.0 V
Current sources
Channels 16
Package width 7 cm
Package height 8 cm
Package depth 3 cm
Package weight 0.038 kg
