Product description: STM32H573I-DK Discovery - development kit with STM32H573IIK3Q microcontroller
The STM32H573I-DK is a versatile demonstration and development platform designed to fully exploit the potential of the STM32H573IIK3Q microcontroller with ARM Cortex M33 and Arm TrustZone features that provide a high level of security. The board is equipped with a full set of peripherals, such as a TFT display with touch panel, USB, Ethernet, MEMS microphone, SAI audio , Octo-SPI memory, as well as connectors for extending the functions via Arduino Uno V3, STMod+ and Pmod . The integrated STLINK-V3EC makes programming and debugging easy, and the available STM32CubeH5 examples and libraries help you get started quickly. This kit is ideal for developing applications that require security, communication interfaces, graphics and sound. The board supports multiple development environments , such as STM32CubeIDE, IAR Embedded Workbench and MDK-ARM.
The manufacturer provides technical documentation and a user manual that contains additional information about the module.

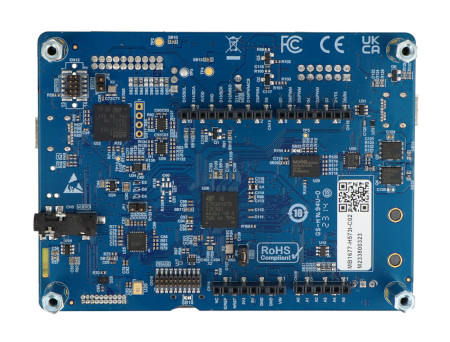

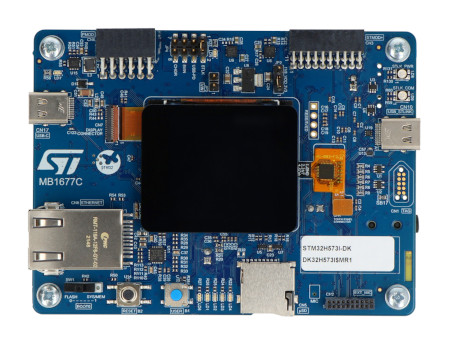

STM32H573I-DK Discovery - development kit with STM32H573IIK3Q microcontroller.
The system is based on the ARM Cortex M33 core with Arm TrustZone technology.
Key Features of STM32H573I-DK Discovery
- STM32H573IIK3Q microcontroller with ARM Cortex M33 core and Arm TrustZone
- 1.54" TFT display 240 x 240 px with touch panel
- USB Type-C supporting up to 15W (5V/3A)
- Ethernet 10/100 Mbit/s, IEEE-802.3-2002 compliant
- Built-in SAI audio codec and MEMS digital microphone
- 512Mbit Octo-SPI NOR Flash Memory
- WiFi module (802.11 b/g/n)
- Connectors: Arduino Uno V3, STMod+, Pmod, Ethernet, microSD, audio jack
- Integrated STLINK-V3EC debugger/programmer with Virtual COM function
- Support for the rich STM32CubeH5 ecosystem and free software libraries
- Support for popular IDEs: STM32CubeIDE, IAR Embedded Workbench, MDK-ARM

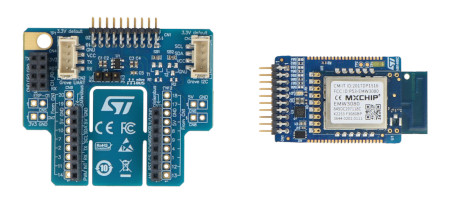

WiFi module MXCHIP EMW3080
The MXCHIP EMW3080 WiFi module enables a reliable and energy-efficient connection to the network , ideal for mobile devices and low-power applications. The module supports IEEE 802.11b / g / n standards, offering stable data transmission in the 2.4 GHz band. Compact size and support for encryption protocols such as WPA / WPA2, increase transmission security. In the Discovery STM32H573I-DK kit, the MXCHIP EMW3080 chip has been integrated on a module compatible with the STMod + interface , which allows communication via SPI.
Provides a stable WiFi connection in the 2.4 GHz band.
The board offers many types of connectors.

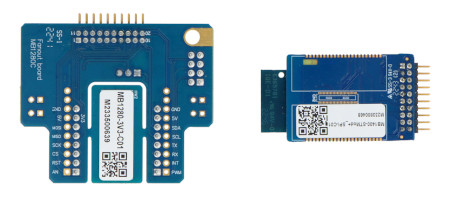

MB1280 Fan-out Expansion Board
The STMod+ MB1280 Fan-out expansion board lets you easily connect popular modules from different manufacturers, extending the functionality of STM32 microcontrollers. The MB1280 board supports mikroBUS-compatible connectors , which makes it easy to integrate with a wide range of Click board modules, as well as connectors for ESP‑01. Additionally, it supports Grove modules. The board is equipped with a standard 2.54 mm pitch pin header, which is ideal for prototyping, and a 5 V power supply and 3.3 V voltage regulator ensure wide compatibility with various modules. There is also a place for an I2C level translator, which facilitates communication between devices with different logical voltages.
Applications of the kit
- IoT applications requiring security and wireless connectivity
- Multimedia applications with audio and graphics support on small displays
- Prototypes of communication devices, e.g. with Ethernet and USB
- Application development in environments with increased security requirements (Arm TrustZone)
- Projects that use extensive external interfaces and memory
The STM32H573I-DK Discovery offers flexible power supply options.

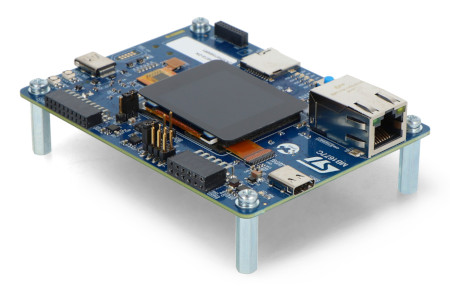

The board has a TFT display with a resolution of 240 x 240 px.
Technical specification of the STM32H573I-DK kit
- Microcontroller: STM32H573IIK3Q (ARM Cortex M33) with 2 MB Flash and 640 KB SRAM
- Display: TFT 1.54", 240 x 240 px with touch panel and LED backlight
- USB: USB 2.0 Full Speed (up to 15W, 5V/3A)
- Ethernet: 10/100 Mbit/s (RJ45), IEEE-802.3-2002 compliant
- External Memory: 512 Mbit Octo-SPI NOR Flash
- Audio: SAI audio codec, MEMS digital microphone, headphone input/output (stereo jack)
- Connectors:
- ST-LINK USB Type-C
- USB User Type-C
- Ethernet RJ45
- microSD
- Arduino Uno V3, STMod+, Pmod connectors
- Debug connectors: Arm Cortex 10-pin (SWD / JTAG), MIPI20 (SWD / JTAG / trace)
- Communication interfaces: WiFi 802.11 b/g/n, USB, Ethernet
- LEDs: 4 User LEDs
- Buttons: RESET button, user button
- Power supply: Powered by USB VBUS (ST-LINK), USB port or external sources
- Debugger: Integrated STLINK-V3EC with debugging function, Virtual COM port and mass storage
- Supported software: IAR Embedded Workbench, MDK-ARM and STM32CubeIDE
