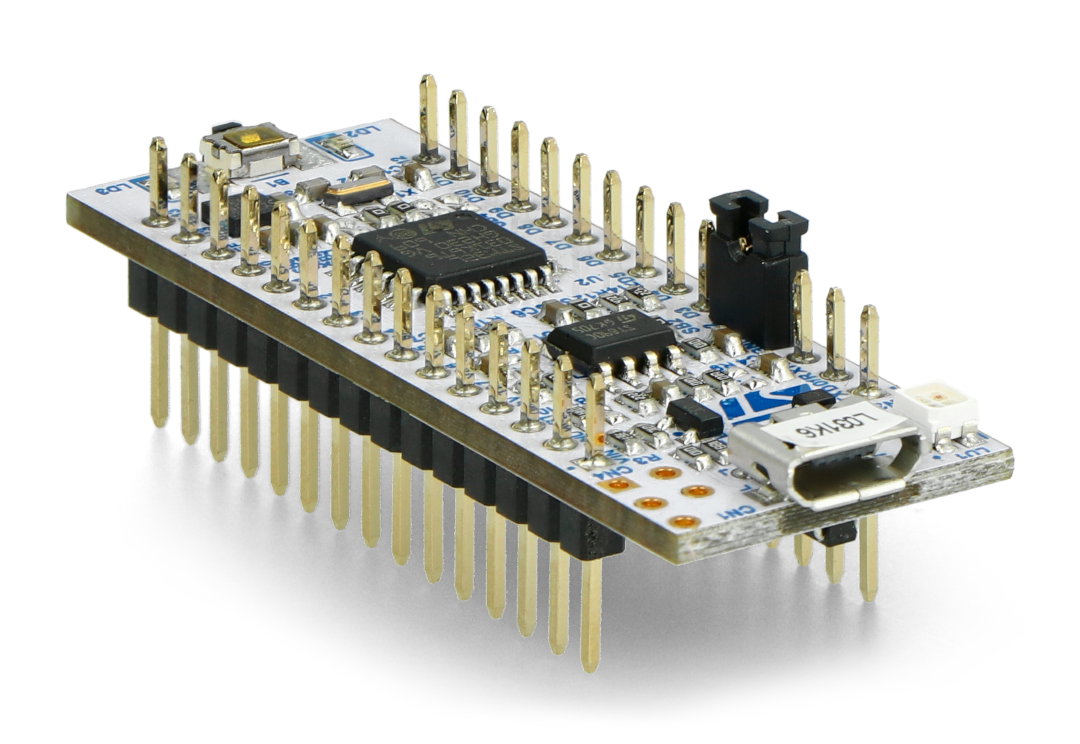

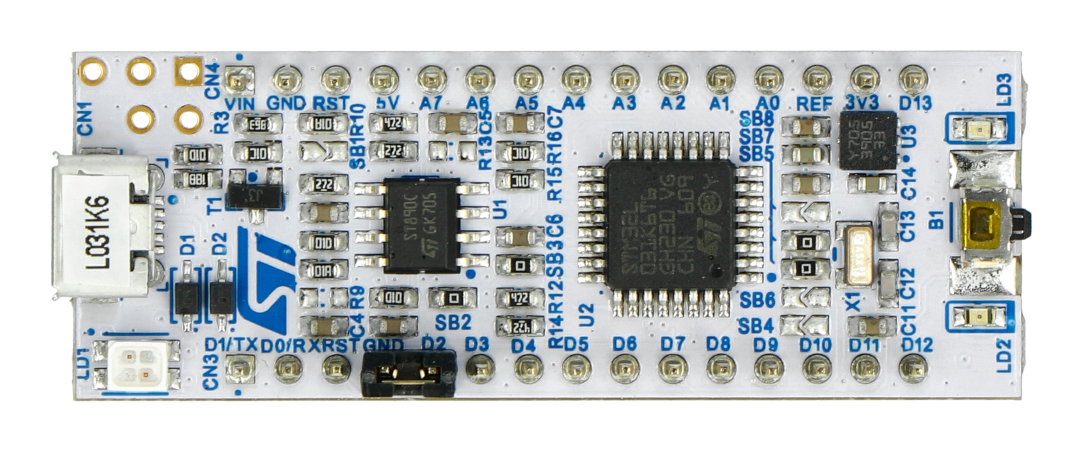

Product description: STM32 NUCLEO-32 L031K6 - with STM32L031K6 MCU - compatible with Arduino Nano
Nucleoboard with32-bitARM Cortex M0+core clocked at32 MHz. Nucleo works with most popular development platforms, which include Keil, IAR, and environments based on GCC compiler. The connector layout is compatible withArduino Nano, thus extending the functionality of the platform. The Nucleo-32does not require any separate probe, as it integrates the ST-LINK debugger / programmer.
|
Product compatible with Arduino Nano The manufacturer providestechnical documentationand a detaileduser guide. |
Equipped with ARM Cortex M0+ core.Technical specification
- STM32L031K6 microcontroller
- Core: ARM Cortex M0+
- Clock speed: 32 MHz
- RAM: 8 kB
- Flash memory: 32 kB
- Supply voltage: 1.65 V to 3.6 V
- Interface: I2C, SPI, UART, USART
- Number of I/Os: 25
- Number of ADC channels: 10
- Connector compatible with Arduino Nano
- Built-in ST-LINK/V2 debugger with SWD connector
- Equipped with three LEDs
- LD1 - USB communication
- LD2 - power supply
- LD3 - user led
- RESET button
- Compatible environments: ARM mbed, IAR, Keil, GCC
