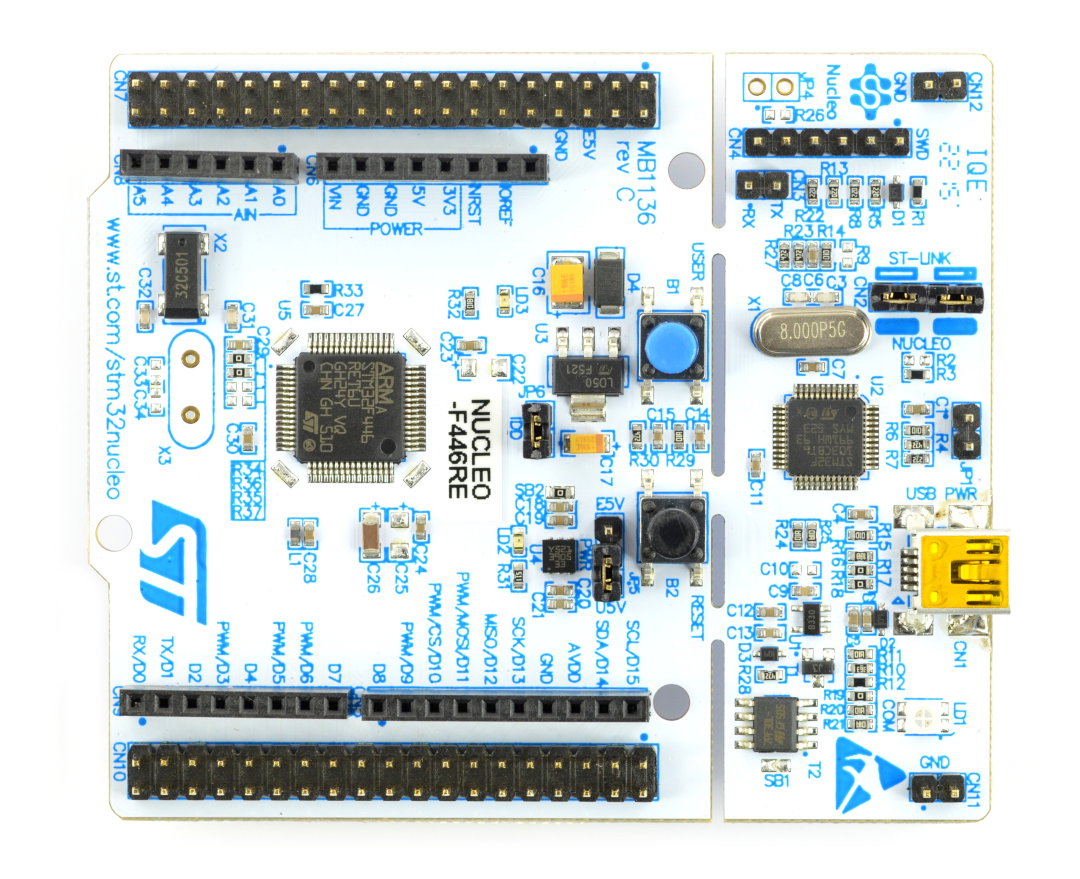

STM32 NUCLEO-F446RE module - STM32F446RE ARM Cortex M4
Module with 32-bit microcontroller with ARM Cortex M4, 180 MHz,512 KB Flash, 128 KB SRAM. Nucleo is compatible with the mbed platform, has connectors for connecting the caps of the Arduino so-called Arduino Shield.
We could not load the price.
The promotional price does not combine with quantity discounts.
Specification
- Microcontroller: STM32F446RET6
- Core: ARM Cortex M4 32-bit
- Clock frequency: 180 MHz
- Flash memory: 512 KB
- SRAM: 128 KB
- 3x ADC converter: 12 bit, 16 channels
- DAC converter: 12 bits, 2 channels
- Communication interfaces: 4x SPI, 2x I2C, 4x USART, 2 UART, 2x CAN, USB OTG, Quad SPI, SAI, HDMI-CEC, SPDIF- Rx, Camera Interface
- Two types of connectors: Connectors for caps compatible with Arduino Uno Rev3
- Standard pins: STMicroelectronics Morpho to access the leads of the microcontroller
- Compatibility: The module is compatible with the system mbed (mbed.org)
- Debugger: The debugger ST-Link/V2 is placed on the board with the possibility to work as a standalone device with the output of SWD
- Power: The ability to power through USB connector
- Embedded three LEDs: 1 x for indication of supply voltage, 1 x indicating the connection, 1 x at user disposal
- Two buttons: 1 x RESET, 1 x at user disposal
- Three different interfaces via connector: miniUSB (USB re-enumeration): Virtual COM port, Mass memory, Port for programming/debugging
- Supported environments: The module supported by the most of the popular environments, i.a.: IAR, Keil and the platforms based on GCC
A detailed description can be found in the documentation and on the website of the manufacturer.
Nucleo allows for the implementation of projects based on efficient microcontroller with 32-bit core ARM Cortex. The modules are compatible withArduino pads and with the system of compiler on-line mbed.org. Nucleo works with most of the popular programming platforms, including Keil, IAR and environments, based on the GCC compiler.
Useful links
| Name | Value |
|---|---|
| Width | 14 cm |
| Height | 2 cm |
| Depth | 19.5 cm |
| Weight | 0.078 kg |
