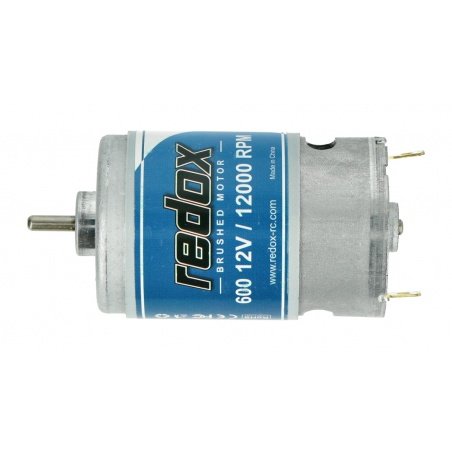

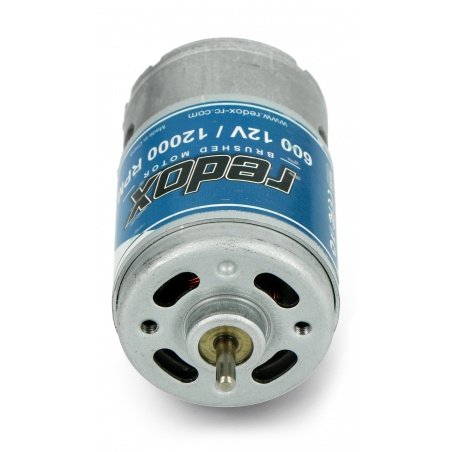

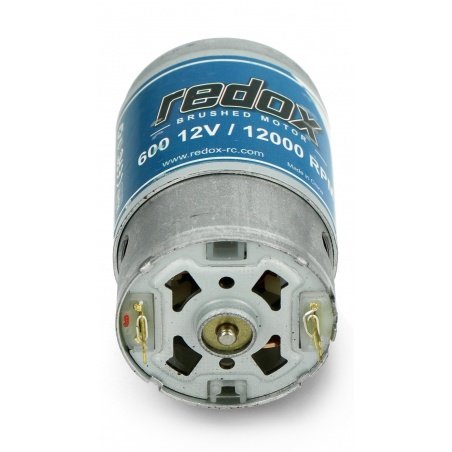

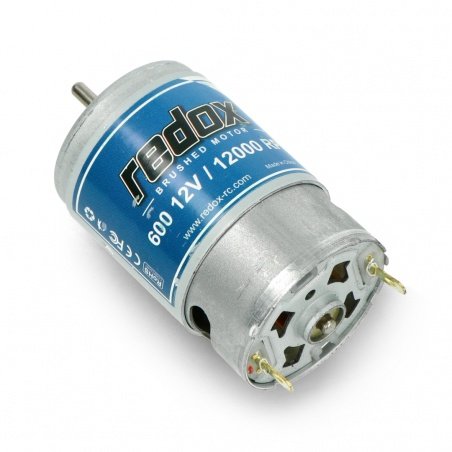

Redox DC Motor 12V 12000RPM

Index: ANF-18443 EAN: 5903754000331

DC brush motor from Redox. The speed is 12000 rpm. It provides a torque of 0.425 kg*cm (at 0.75 A) and the motor supply voltage is 12 V DC. The simple and robust construction of the device makes it possible for the motor to be used, among other things, in the design of robots, driving vehicles and industrial and home automation equipment.

Redox DC Motor 12V 12000RPM
€9.90
€8.05 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Redox

Product description: Redox DC 12 V 12000 RPM motor

DC brush motorfrom Redox. The speed is12000 rpm. It provides a torque of0.425 kg*cm(at 0.75 A) and the motor supply voltage is12 VDC. The simple and robust construction of the device makes it possible for themotorto be used, among other things, in the design ofrobots, driving vehicles and industrial and home automation equipment.

Technical specifications

  • Operating voltage: 6 V to 18 V DC
  • Nominal voltage: 12 V DC
  • Idle speed: 12000 rpm
  • no-load current consumption: 0,75 A
  • Torque: 0.425 kg*cm (0.04 Nm)
  • Power: 40 W (63% capacity)
  • Shaft diameter: 3.17 mm
  • Engine diameter: 36 mm (without flange)
  • Motor body length: 57 mm
Silnik Redox DC 12 V 12000 RPM.

Redox DC 12 V 12000 RPM motor.

Voltage to 6.0 V
Voltage from 18.0 V
Motor - current 750 mA
Rotation speed 12000 obr/min
Torque 0.425 kg*cm
Motor - shaft 3.2 mm
Package width 9 cm
Package height 4.2 cm
Package depth 4.4 cm
Package weight 0.234 kg

Paweł

05/23/22

Question: Hello, How much does the shaft protrude from the front of the motor? I need a measurement from the body which is 36mm in diameter and not from the small protrusion at the front. Greetings
Answer: The distance from the body to the end of the shaft is 14 mm.
