Description

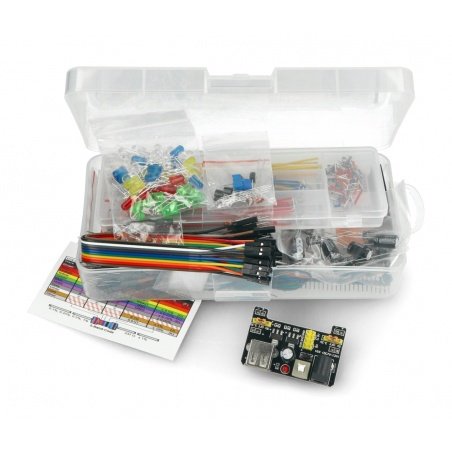

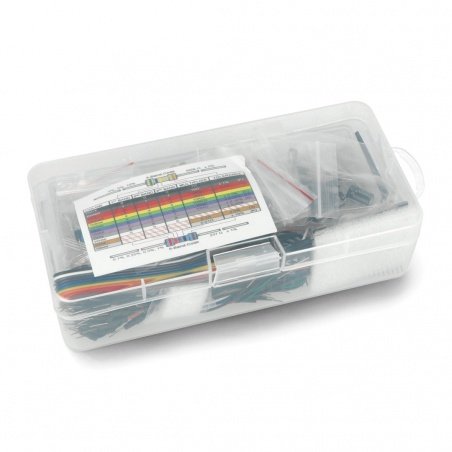

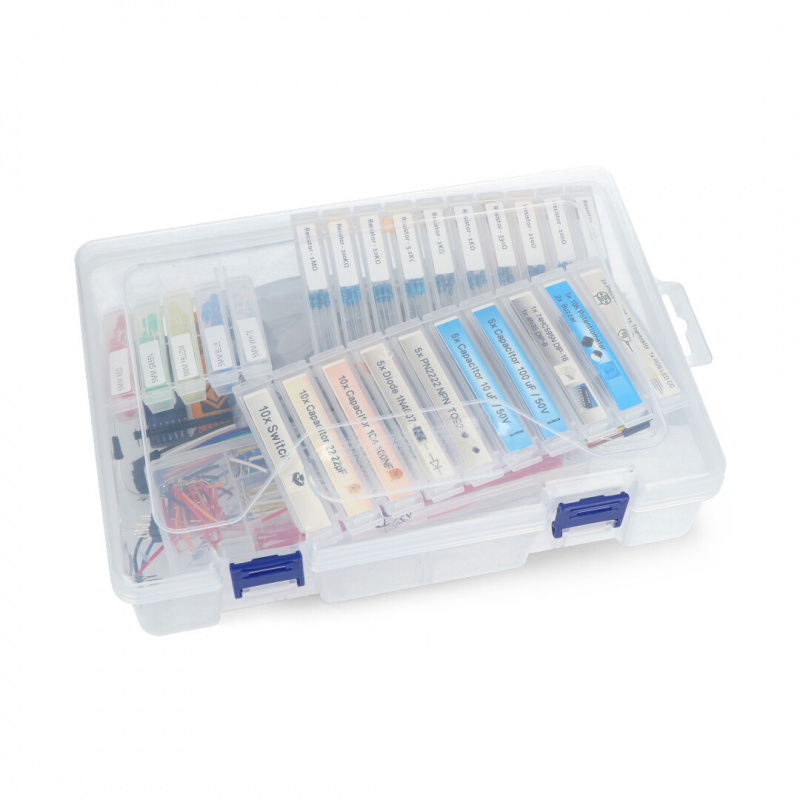

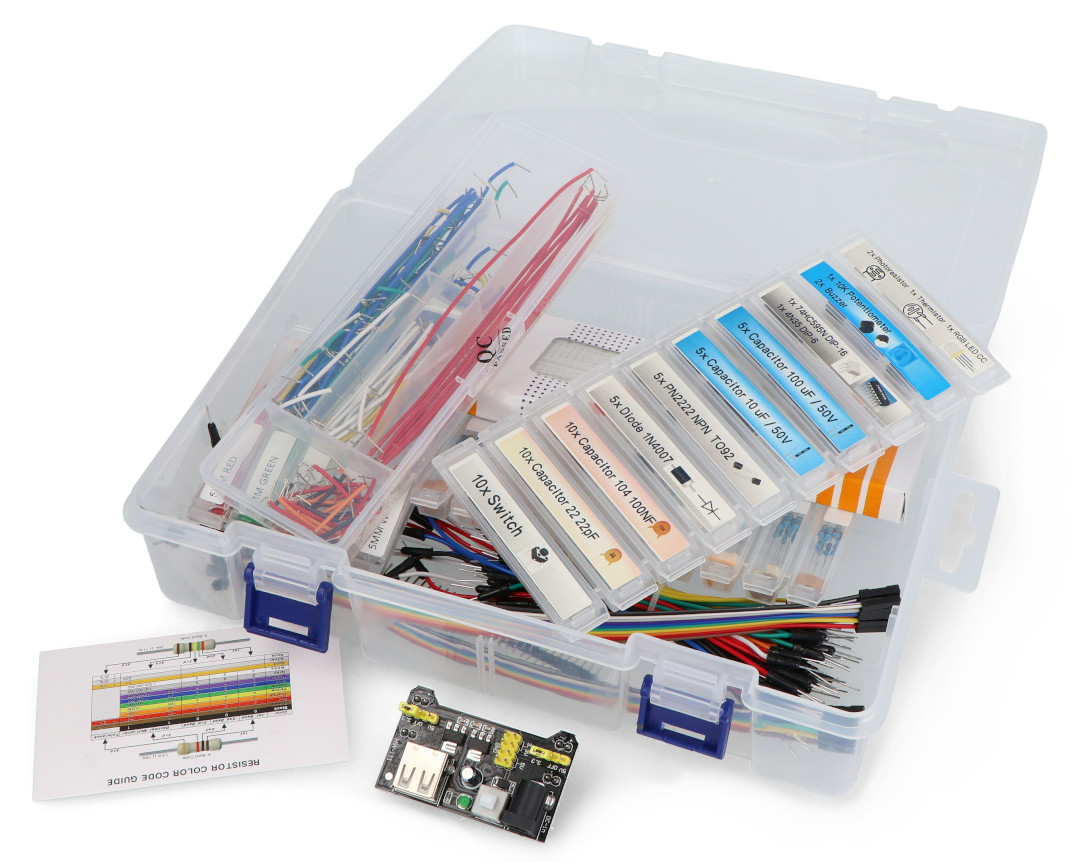

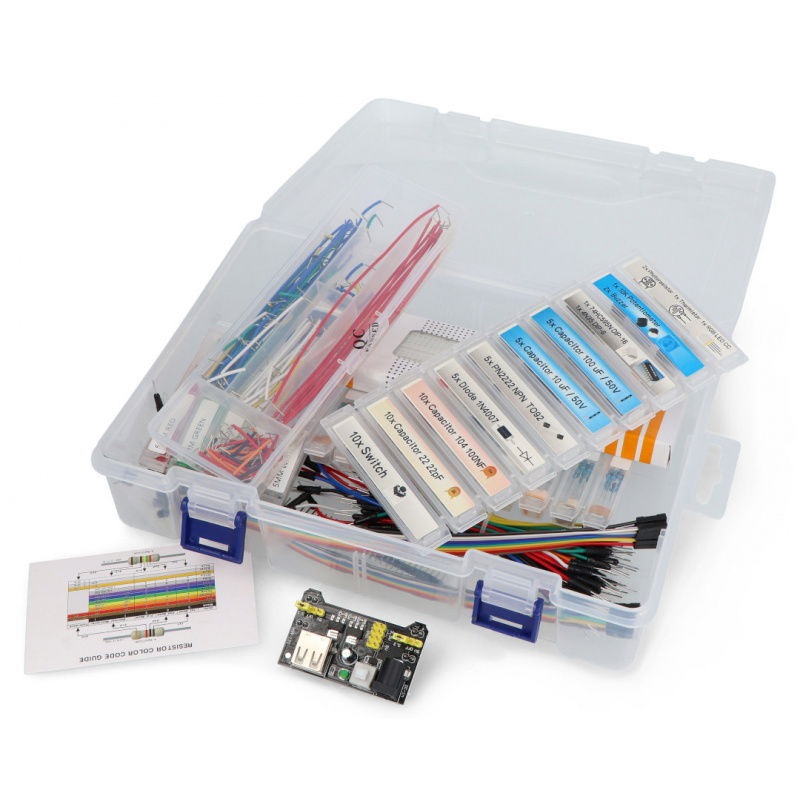

The set of prototype elements that can be used for creating electronic circuitswithArduino or other microcontrollers. The kit includes: breadboard, power supply for the breadboard, sets ofwires,buttons Tact Switch,LEDs,transistors,capacitors,resistors, a table that facilitates detection resistors, and more. All closed in a small container.
The contents list was placed on the inside of thecontainer's lid. Kit does not includeArduino Board, it can be purchased separately, for example inthe Arduino Unoversion.

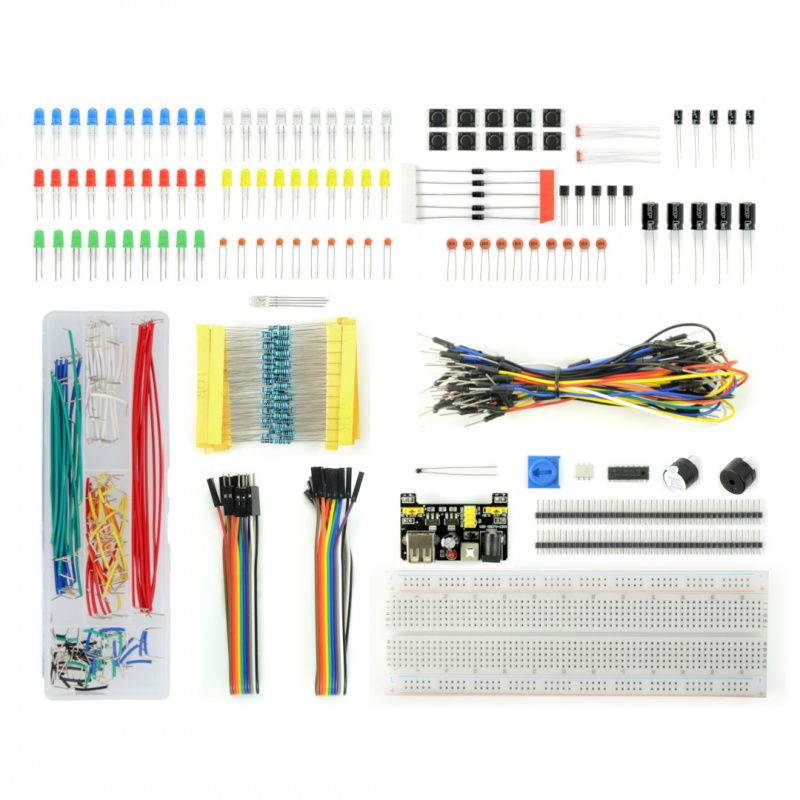

The set consists of:
| L. p. | Photo | Description |
|---|---|---|
| 1 |  |

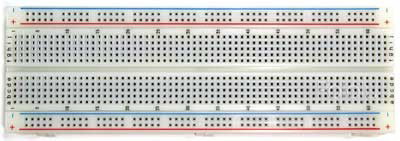

Breadboard 830 holes- 1 PC. Used for creating prototypes of electric circuits. |
| 2 |  |
The power supply module for the breaboard - 1 PC. Power module for breadboards, allows connection of power supply 5 V or 3.3 V using the AC adapter. |
| 3 |  |
Passive buzzer- 1 PC. Buzzer without continuous tone generator. Allows you to add sound alarm. |
| 4 |  |
Active buzzer- 1 PC. Buzzer with continuous tone generator. Allows you to add sound alarm. In the buzzer it is sufficient to specify active low condition on his foot and it will make a sound. |
| 5 |  |
Can be used as a controller in the user interface. |
| 6 |  |
The layout of the shift register 74HC595N- 1 PC. (documentation) |
| 7 |  |
Optocoupler4N35 - 1 PC. (documentation) |
| 8 |  |
Electrolytic capacitor100 uF / 50V - 5. Passive electricelement, characterized by the ability to accumulate electric charge used in filtering of power supply, as well as to create voltage regulators. Has a capacity of 100 µf / 50 V. |
| 9 |  |
Electrolytic capacitor10 uF / 50 V - 5. Passive electricelement, characterized by the ability to accumulate electric charge used in filtering of power supply, as well as to create voltage regulators. Has a capacitance of 10 µf / 50 V. |
| 10 |  |
NPN transistor PN2222- 5 PCs. Transistors are able to amplify electrical signal. Maximum voltage is 40 Volts maximum current 1 A. (documentation) |
| 11 |  |
Led fix 1N4007- 5 PCs. Is used for rectifying the current. (documentation) |
| 12 |  |
Photoresistor- 2 PCs. The sensor, which is influenced by the intensity of the incident light changes the resistance. |
| 13 |  |
Button Tact Switch10 PCs A small button monostable installed in a threaded TNT. Its dimensions are 5 x 5 mm, height 8 mm. |
| 14 |  |
Thermistor, 1 PC. Temperature sensors. When the temperature increases, the resistance decreases. |
| 15 |  |
Led RGB- 1 PCs. Led emitting colors from the RGBpalette. |
| 16 |  |
Goldpin 1x40 strap- 2 PCs. |
| 17 |  |
Wire male - male - 65 PCs. |
| 18 |  |
Wire female - female- 10 PCs. |
| 19 |  |
Wire female - male- 10 pieces |
| 20 |  |

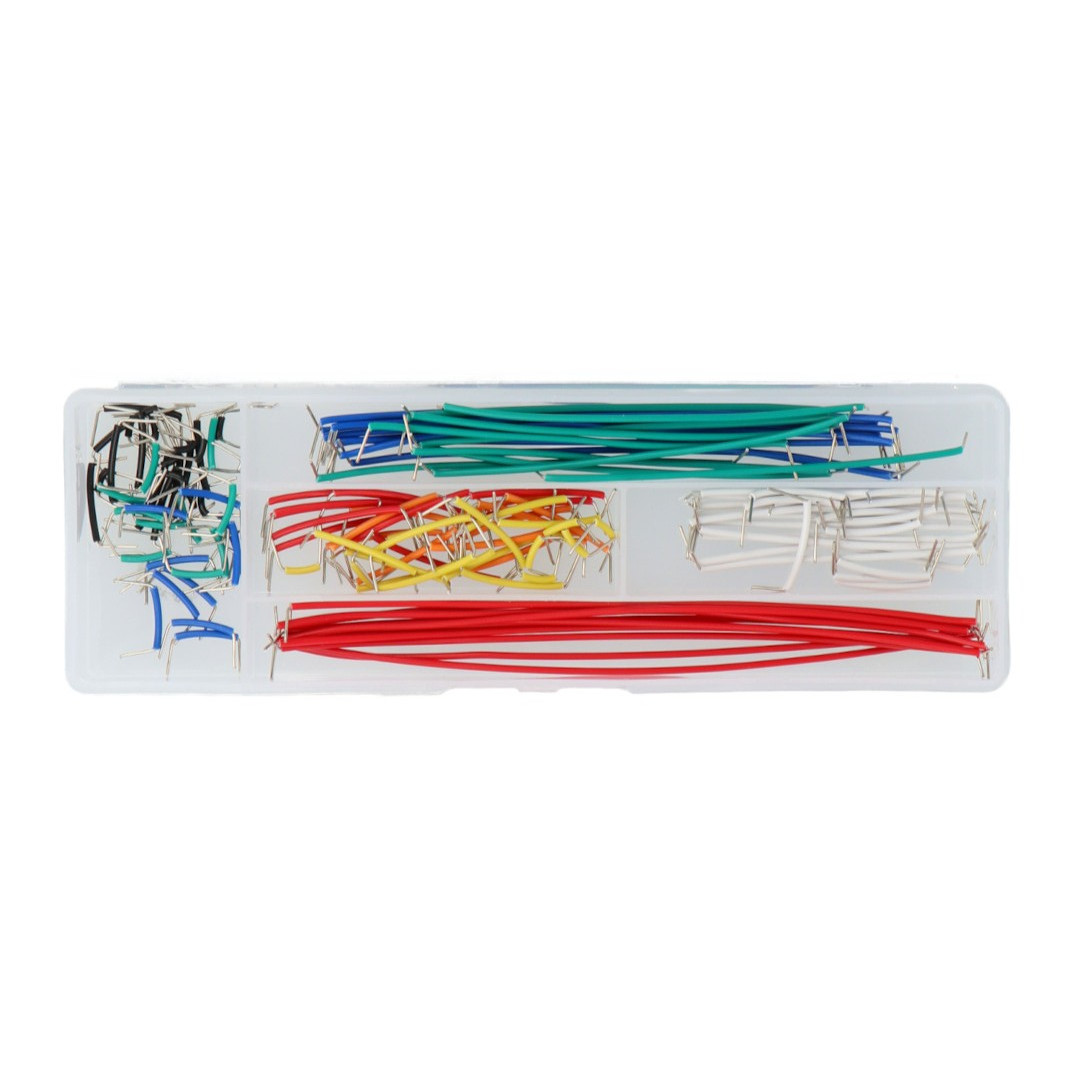

Leads of varying length for soldering in the container- 1 PC. |
| 21 |  |
Passive electricelement, characterized by the ability to accumulate electric charge used in filtering of power supply, as well as to create voltage regulators. Has a capacity of 100 NF. |
| 22 |  |
Passive electricelement, characterized by the ability to accumulate electric charge used in filtering of power supply, as well as to create voltage regulators. Has a capacity of 22 PF. |
| 23 |  |
Ledred - 10 PCs. Led emitting light in red. |
| 24 |  |
Led- green - 10 PCs. The led that emits light in green color. |
| 25 |  |
Led- yellow - 10 PCs Led, emits light in yellow. |
| 26 |  |
Led- blue - 10 PCs The led that emits light in blue. |
| 27 |  |
Led- white - 10 PCs. The led that emits light in white color. |
| 28 |  |
Resistor10 Ohm - 10 PCs. Passiveelectric element for limiting the current of an electric circuit. |
| 29 | |
Resistor100Ohm - 10 PCs. Passive electric element for limiting the current of an electric circuit. |
| 30 | |
Resistor220Ohm - 10 PCs. Passive electric element for limiting the current of an electric circuit. |
| 31 | |
Resistor330Ohm - 10 PCs. Passive electric element for limiting the current of an electric circuit. |
| 32 | |
Resistor1 KOhm - 10 PCs. Passive electric element for limiting the current of an electric circuit. |
| 33 | |
Resistor2 KOhm - 10 PCs. Passive electric element for limiting the current of an electric circuit. |
| 34 | |
Resistorof 5.1 KOhm - 10 PCs. |
| 35 | |
Resistor10 KOhm - 10 PCs. Passive electric element for limiting the current of an electric circuit. |
| 36 | |
Resistor100 KOhm - 10 PCs. Passive electric element for limiting the current of an electric circuit. |
| 37 | |
Resistor1 MOhm - 10 PCs. Passive electric element for limiting the current of an electric circuit. |
| 38 |  |
Map with colors of the resistor - 1 PC. Map to facilitate the distinction of the resistance of the resistor based on the colored bands on their cases. |
| 39 |  |
Plastic container. |
