Gravity - BME680 I2C environmental sensor - DFRobot SEN0248

Index: DFR-19200 EAN: 6959420913237
A 4-in-1 MEMS environmental sensor equipped with Gravity connector, manufactured by DFRobot. It features an embedded Bosch BME680 chip. The multifunctional module is a combination of a volatile organic compound(VOC) sensor, a temperature sensor, a humidity sensor, and a barometer. The measuring range for temperature is from -40°C to 85°C with an accuracy of +/- 1°C; for humidity from 0% to 100% RH with an accuracy of +/- 3% RH; for atmospheric pressure from 300 hPa to 1100 h Pa with a measurement accuracy of +/- 0.6 hPa.
Gravity - BME680 I2C environmental sensor - DFRobot SEN0248
€21.90
€17.80 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Product description: Gravity - Environmental sensor BME680 I2C - DFRobot SEN0248

MEMS4-in-1environmental sensor equipped withGravityconnector, manufactured by DFRobot. It has an embedded BoschBME680chip. The multifunctional module is a combination of a volatile organic compound(VOC) sensor, atemperaturesensor, ahumiditysensor, anda barometer. It is used as a component for monitoring indoorair quality, it is also used in monitoring environmental parameters, home automation. The use of MEMS technology andBME680chip makes the sensor small in size andlow in power consumption. Measuring range for temperature isfrom -40°C to 85°Cwith an accuracy of +/- 1°C; for humidityfrom 0% to 100% RHwith an accuracy of +/- 3% RH; for atmospheric pressurefrom 300 hPa to 1100 hPa with a measurement accuracy of +/- 0.6 hPa.

Product is compatible with Arduino
. Producer prepared detaileduser guideandlibraryfor Arduino IDE environment.

BME680 wielofunkcyjny czujnik środowiskowy 4w1 - SPI / I2C

BME680 4in1 multifunctional environmental sensor - SPI / I2C.

Przykładowy schemat połączenia czujnika z wykorzystaniem płytki DFRduino, odpowiednika Arduino.


Example of sensor connection using Gravity connector andDFRduinoboard, Arduino equivalent. The board is not a part of kit, you can buy it separately in our shop.

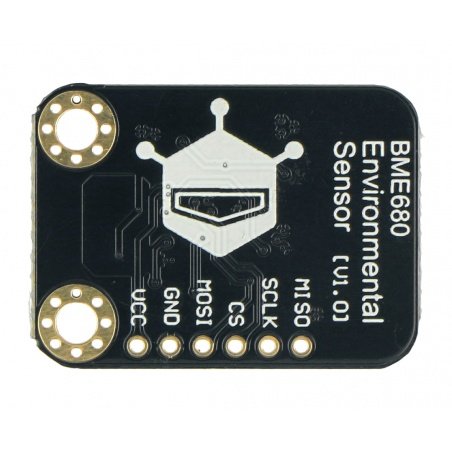

Leads description and example connection diagram

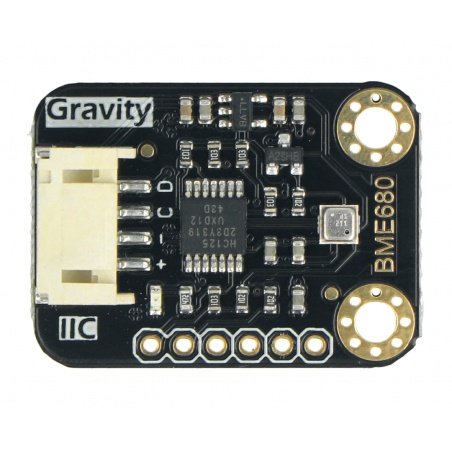

The module hasleadsin the form of solderfields, to which you should solder includedgoldpin connectors. Alternatively, on the board of the sensor there is also a connector inGravitystandard, which greatly facilitates the connection with microcontroller. Connect thesensorto the microcontroller module according to the following description:

  • VCC- power supply pin from 3,3 V to 5 V
  • GND- system ground
  • SCL- I2C interface clock line
  • SDA- I2C interface data line
  • CS- Chip Select; selection pin: data / command
  • MISO- Master Input Slave Output
  • MOSI- Master Output Slave Input

Technical specification of BME680 environmental sensor

  • Module: Volatile organic compound (VOC), temperature, humidity and barometer sensor
  • Embedded chip: BME680
  • Technology: MEMS
  • Embedded connector: Gravity I2C
  • Optional connector: SPI
  • Input voltage range: 3.3 V to 5 V
  • Current consumption: 5 mA (25 mA for VOC measurement)
  • Temperature measurement range: -40°C to 85°C
  • Accuracy: +/- 1°C (from 0°C to 65°C)
  • Humidity measuring range: 0% to 100% RH
  • Measuring accuracy: +/- 3% RH (ranges from 20% to 80% RH at 25°C)
  • Measuring range for atmospheric pressure: 300 hPa to 1100 hPa
  • Measuring accuracy: +/- 0.6 hPa (ranges from 300 hPa to 1100 hPa at temperatures from 0°C to 65°C)
  • IAQ* (indoor air quality) range: 0 to 500 ( the higher the score, the worse the air quality)
  • Module dimensions: 30 x 22 mm

Note: IAQ (In-Door-Quality) calculation function is supported only when usingFireBeetle ESP8266microcontroller

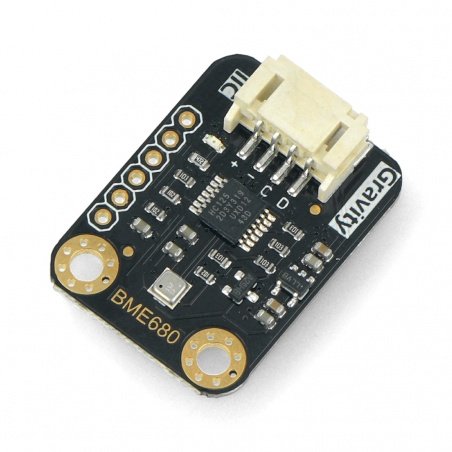

Czujnik z wbudowanym układem BME680.Sensor with integrated BME680 chip.
Zestaw zawiera także dedykowane złącza goldpin przeznaczone do samodzielnego przylutowania.

The kit also includes dedicated goldpin connectors for you to solder yourself.

Suggested application

  • Indoor air quality monitoring
  • Element of a weather station
  • Used in smart home projects
  • Sensor to be placed on clothing

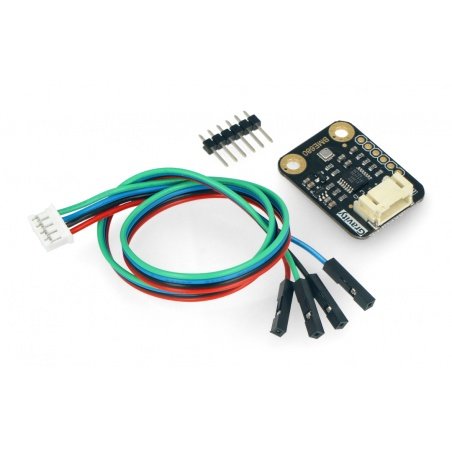

Kit contents

  • Environmental sensor Gravity: BME680
  • 1x6 goldpin strip - 2.54 mm pitch
  • Gravity 4-pin connection cable

In our assortment you will also find otherenvironmental sensors. We invite you to familiarize yourself with the offer.

Package width 5.5 cm
Package height 6 cm
Package depth 2.5 cm
Package weight 0.013 kg
