Grove - 10kΩ linear rotary potentiometer - top connector

Index: SEE-04433 EAN: 5903351246972

Potentiometer 10 kOhm with linear rotary. It as a 300° range of rotation. It has a 4-pin Grove connector on the side of the handle.

Grove - 10kΩ linear rotary potentiometer - top connector
€3.00
€2.44 tax excl.
Available
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio

Description

Potentiometer 10 kOhm with linear rotary. It as a 300° range of rotation. It has a 4-pin Grove connector on the side of the handle.



Attention!

This product is only available in our market in Poland and cannot be sold to other countries.

Specification

  • Resistance: 10 ohms
  • Range of rotation: 300 °
  • Linear characteristic
  • Equipped with 4-pin Grove, raster 2 mm
  • Dimensions: 20 x 20 mm



The product is compatible with Arduino and RaspberryPi

The manufacturer offers auser guide, together with examples forArduinoandRaspberry Pi.

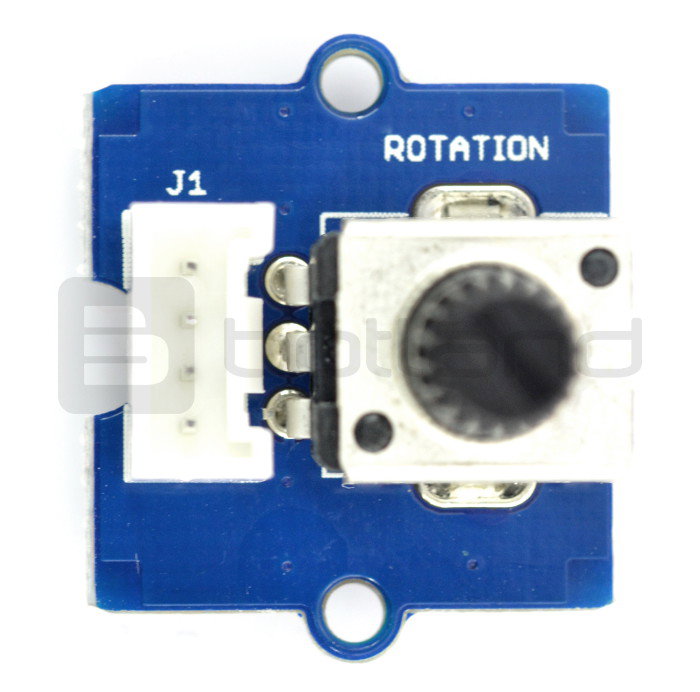

Connection

The sensor communicates with the microcontroller the analog way. It has the following outputs:

Potencjometr obrotowy

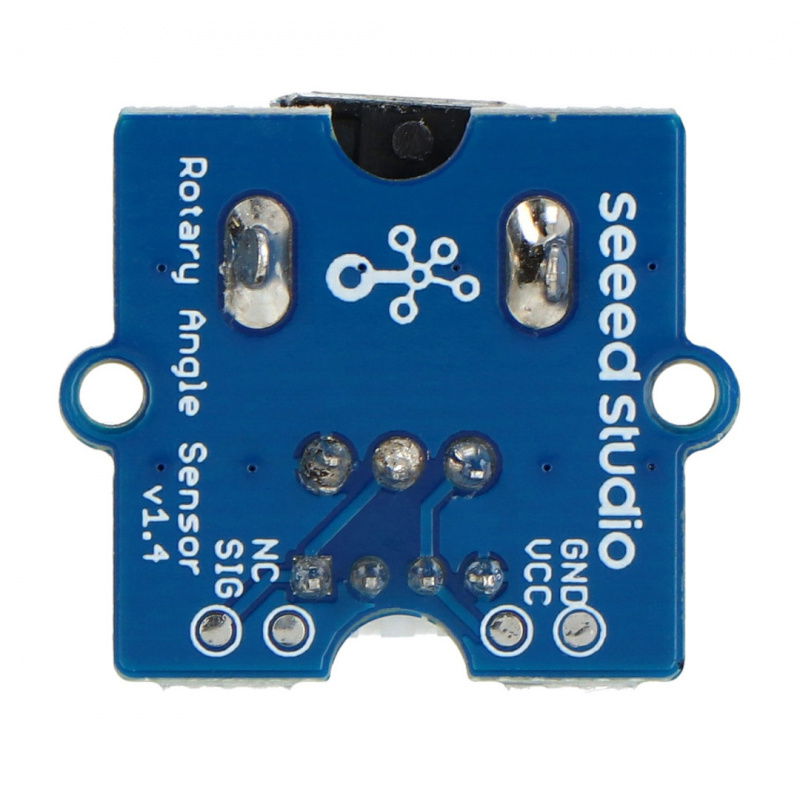

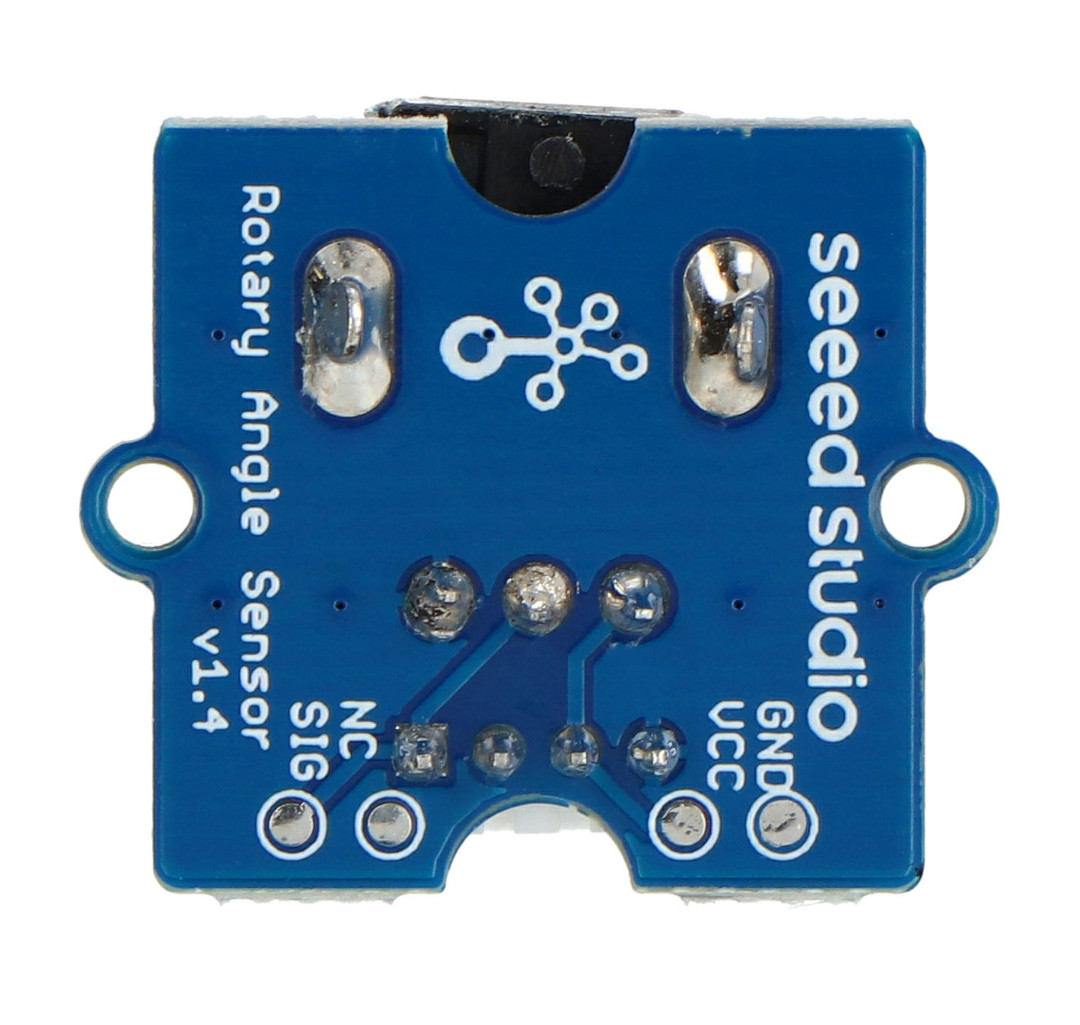

Pin Description
GND The ground of the system.
VCC Supply voltage from 3.3 V to 5 V.
NC Not connected.
SIG The sensor signal voltage from 0 to 5 V.



Grove is a series of modules and sensors that are compatible withBase Shield board working withArduinoandSTM32 Nucleo.



Sensor - type potentiometer
Package width 6 cm
Package height 1.5 cm
Package depth 10 cm
Package weight 0.008 kg
