Description

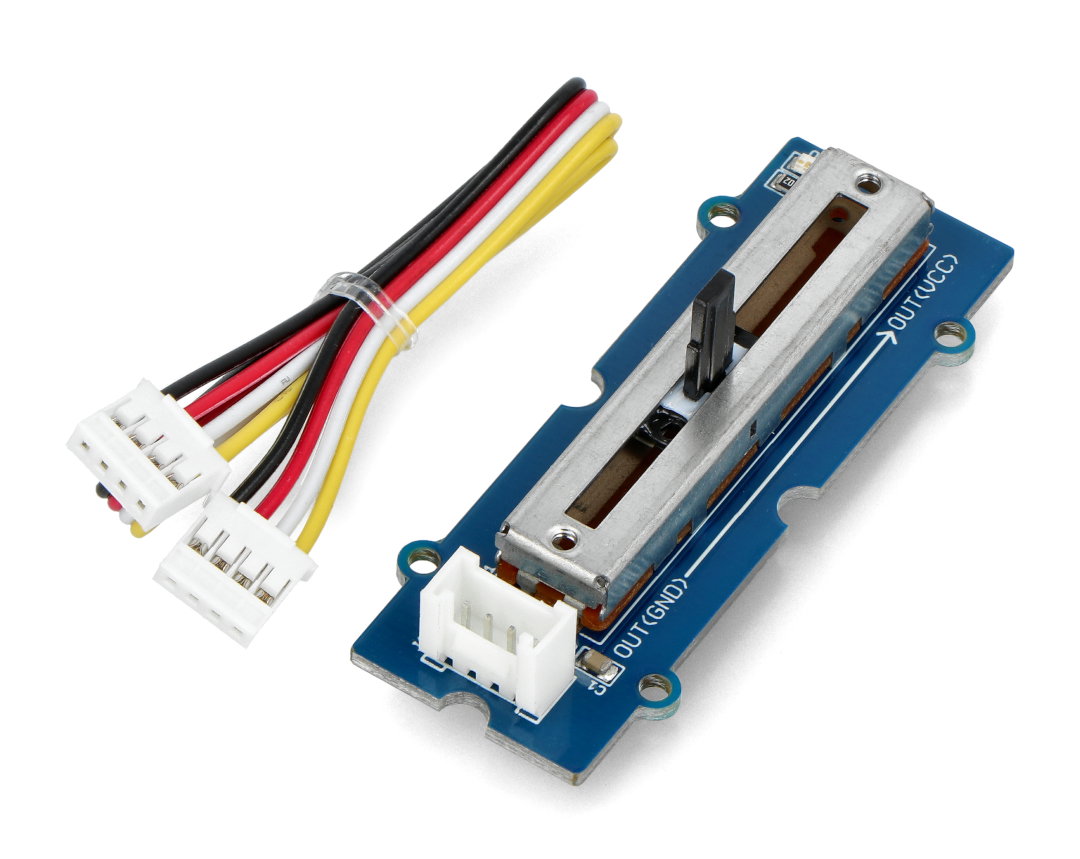

Sliding linear potentiometer with a resistance of 10 ohms. Itas a 4-pin Grove connector. The kit includes a cable adapted to SeeedstudioBase Shield v2.0.
Module supplied with 4-pin cable for Base Shield v2.0.
Specification
- Resistance: 10 ohms
- Sliding shaft's length: 3 cm
- Supported voltage: 3.3 V to 30 V
- Linear characteristic
- Equipped with 4-pin Grove, raster 2 mm
- Dimensions: 24 x 60 mm
|
The product is compatible with Arduino and Raspberry Pi The manufacturer offers auser guide, together with examples forArduinoandRaspberry Pi. |
Connection

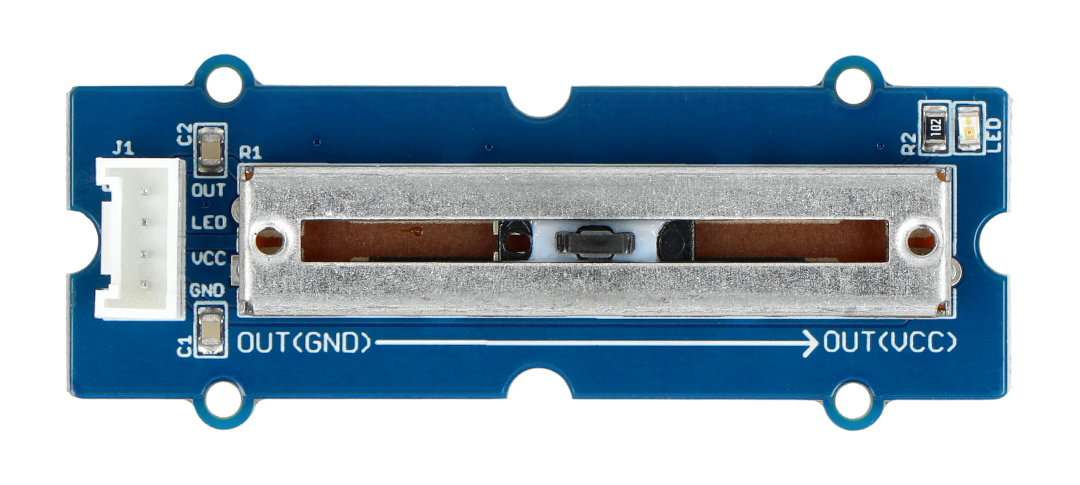

The sensor communicates with the microcontroller the analog way. It has the following outputs:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | Supply voltage from 3.3 V to 5 V. |
| LED |
Allows you to observe changes of the potentiometer with the green led on the Base Shieldv2.0. |
| OUT | Output signal - analog. |
|
Grove is a series of modules and sensors that are compatible withBase Shield boards working withArduinoandSTM32 Nucleo. |
