Gravity - LED Switch Red - LED Illuminated Button - Red - DFRobot DFR0789-R

Index: DFR-19911 EAN: 6959420919994

Ask a question

Remove from wishlist Add to wishlist

The pushbutton module is additionally equipped with a backlight, which is responsible for the built-in LED. When pressed, the module provides visual feedback in red. Gravity - LED Switch Red is characterized by high versatility - can be used for example with micro:bit from BBC or Arduino. It is equipped with self-locking function, monostable sensor type.

€5.00

€4.07 tax excl.

Notify me when available

Check quantity

Square button with illumination Gravity - color:

Manufacturer: DFRobot

Compatibility: Arduino Micro:bit

Must-have accessories

Arduino Uno Rev3 - module A000066

€27.90

Product description: Gravity - LED Switch Red - LED backlit button - red - DFRobot DFR0789-R

Module with a button equipped with an additional backlight, which is responsible for the built-in LED. When pressed, the module provides visual feedback in red. Gravity - LED Switch Red is characterized by high versatility - can be used for example with micro:bit from BBC or Arduino. It was equipped with self-locking function, monostable type sensor. This means that when the button is pressed, the module outputs a high state and the LED lights up. When the button is pressed again, the module outputs a LOW signal, and the LED goes off. Switches of this type can be part of the design of backlit keyboards or music playback panels.

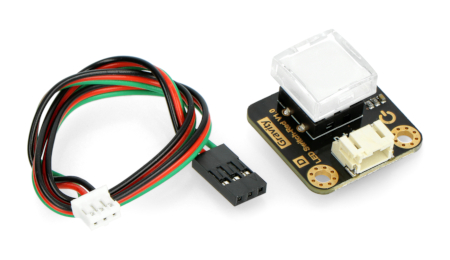

W skład zestawu wchodzi także przewód połączeniowy - dedykowany do urządzeń z sygnałem cyfrowym na wyjściu.

The set also includes a connecting cable - dedicated for peripheral devices with digital signal on the output.

Przykład połączenia Gravity - LED Switch z płytką micro:bit od BBC.

Example of connection between Gravity - LED Switch and micro:bit board from BBC.

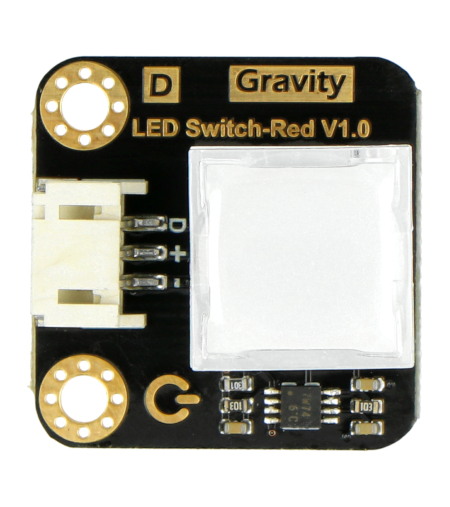

LED Switch pinout description

D - control pin, output signal port
"+" - VCC, power supply pin from 3.3 V to 5 V
"-" - GND, system ground pin

What is the Gravity connector?

Modules of Gravity series are equipped with PH2.0-3P connector, which allows for quick and convenient connection of elements. The Gravity system does not require soldering, and its application is particularly appreciated in projects based on prototyping. Gravity connector has 3 lines: GND - circuit ground, VCC - power pin and D/S - signal line.
