Gravity - LED Button - Yellow - DFRobot DFR0785-R

Index: DFR-20071 EAN: 6959420920051

Ask a question

Remove from wishlist Add to wishlist

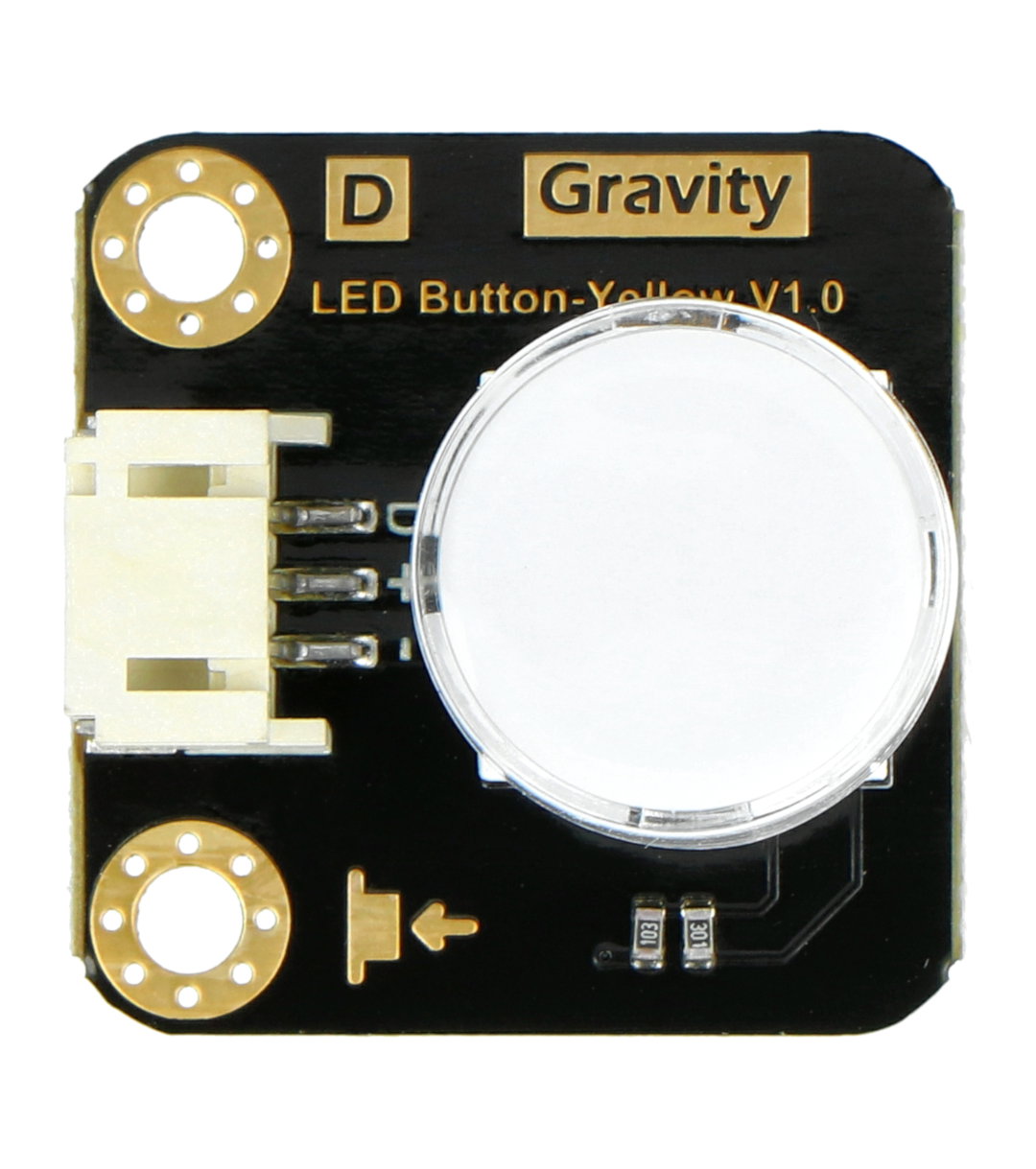

Module with round button. It is additionally equipped with a backlight, thanks to a built-in LED under a transparent cover. After pressing the cap the LED lights up in yellow. Gravity - LED Button can be used e.g. with micro:bit from BBC or Arduino. Monostable button.

€6.50

€5.28 tax excl.

Notify me when available

Check quantity

Round button with illumination Gravity - color:

Manufacturer: DFRobot

Compatibility: Arduino Raspberry Pi Micro:bit

Product description: Gravity - LED Button - Yellow - DFRobot DFR0785-Y

Module with a round button. Equipped with backlight, which is responsible for the built-in LED located under the transparent overlay. When the cap is pressed, the LED lights up in yellow. Gravity - LED Button can be used e.g. with micro:bit from BBC or Arduino. Button is of monostable type. This means that when the button is pressed, the module outputs a high state and the LED lights up. When the button is released, the module outputs a LOW signal and the LED goes off. Switches of this type can be part of the design of backlit keyboards or music playback panels.

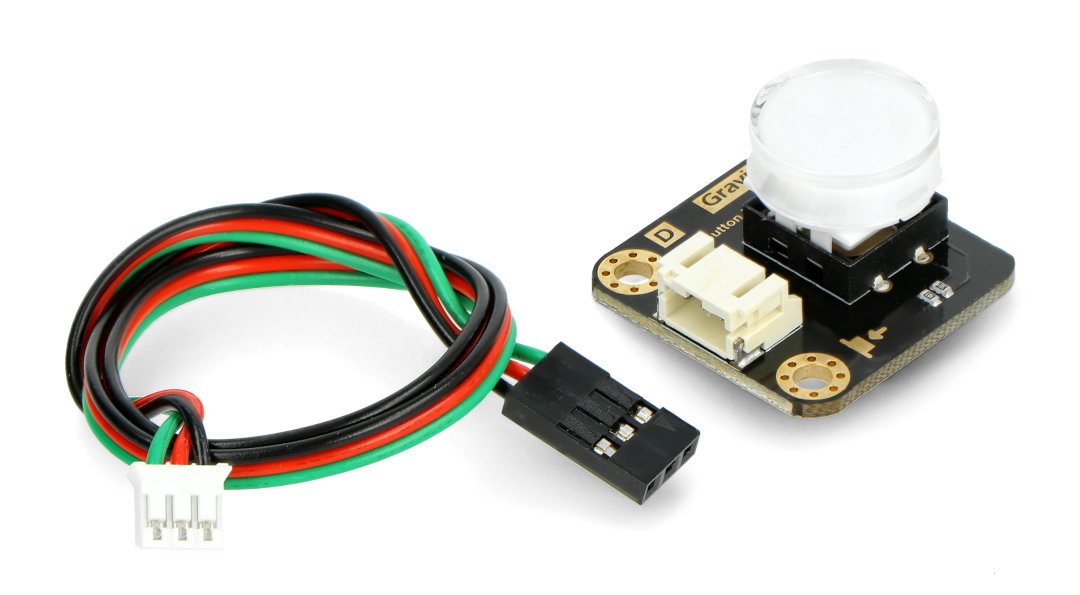

The kit also includes a connection cable - dedicated for peripheral devices with digital signal on the output.

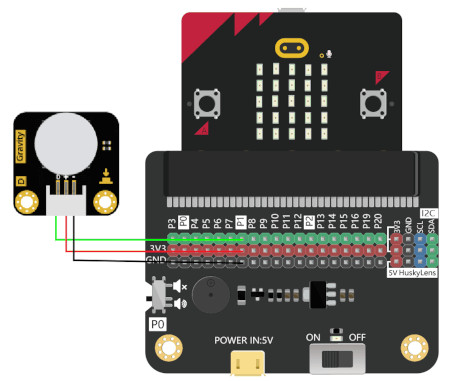

Przykład połączenia Gravity - LED Button z płytką micro:bit od BBC.

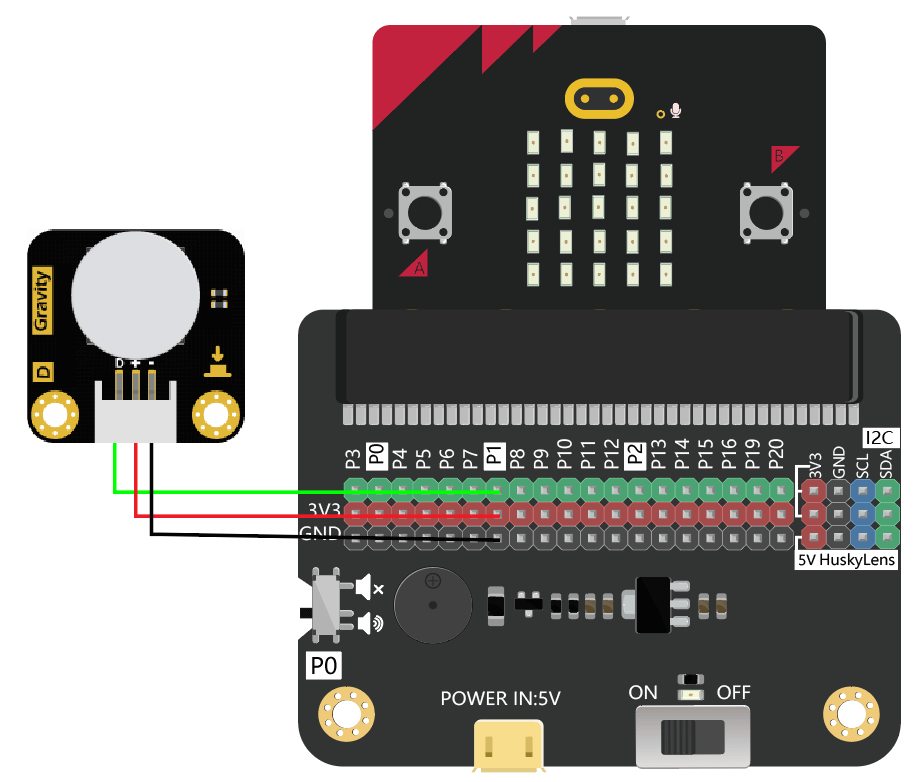

Example of connection between Gravity - LED Button and micro:bit board from BBC.

LED Button pinout description

D - control pin, output signal port
"+" - VCC, power supply pin from 3.3 V to 5 V
"-" - GND, system ground pin

What is the Gravity connector?

Modules of Gravity series are equipped with PH2.0-3P connector, with the use of which you can make fast and convenient connection of elements. The Gravity system does not require soldering, and its use is particularly appreciated in projects based on prototyping. Gravity connector has 3 lines: GND - circuit ground, VCC - power pin and D/S - signal line.
