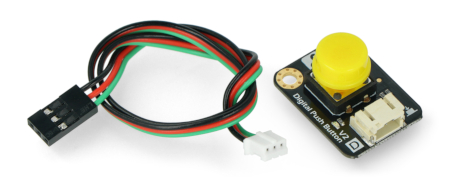

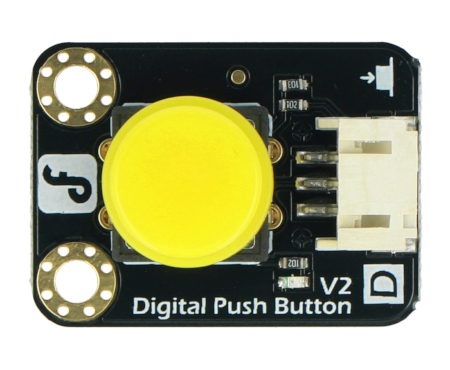

Product description: DFRobot Gravity - Digital Tact Switch - Yellow
Digital monostable switch with 3-pin connector. It is powered from 3.3 V to 5 V and works with Arduino modules. The set includes a cable suitable for DFRobot IO Expansion Shield.
|
Product is compatible with Arduino Example code and detailed information can be found in the user guide. |
Connection
The module works with any microcontroller equipped with digital inputs, including Arduino. To read data, simply connect power and output pin to any microcontroller input and read its state.
Example of connecting sensor with Arduino.
Specification
- Supply voltage: from 3.3 V to 5 V
- Communication: 0/1 digital signal
- Built-in LED
- Colour: yellow
- Cable for connection to DFRobot IO Expansion Shield
- PCB dimensions: 22 x 30 mm
The board is matched with the DFRobot IO Expansion Shield connectors for Arduino V7.1.
Kit includes:
- Digital bistable switch
- Connection cable
