Gravity - LED Switch White - LED Illuminated Button - White - DFRobot DFR0789-W

Index: DFR-19912 EAN: 6959420919987

Ask a question

Remove from wishlist Add to wishlist

The module is equipped with a push button and additional backlight, which is provided by a built-in LED. Mounting element, when pressed, provides visual feedback in white color. Gravity - LED Switch White is characterized by high versatility - can be used for example with micro:bit from BBC or Arduino.

€5.90

€4.80 tax excl.

Notify me when available

Check quantity

Square button with illumination Gravity - color:

Manufacturer: DFRobot

Compatibility: Arduino Micro:bit

Must-have accessories

Arduino Uno Rev3 - module A000066

€23.72

Product description: Gravity - LED Switch White - LED backlit button - white - DFRobot DFR0789-W

A module equipped with a button and additional backlight, which is responsible for the built-in LED. The mounting element, when pressed, provides visual feedback in white. Gravity - LED Switch White is characterized by high versatility - can be used for example with micro:bit from BBC or Arduino. Monostable type switch, equipped with self-locking function. This means, when the button is pressed, the module outputs a high state and the LED lights up. When the button is pressed again, the module produces LOW signal and the LED goes off. Switches of this type can be part of the design of backlit keyboards or music panels.

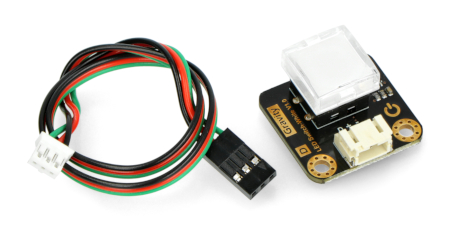

W skład zestawu wchodzi także przewód połączeniowy - dedykowany do urządzeń z sygnałem cyfrowym na wyjściu.

The set includes also the connection cable - dedicated for peripherals with digital signal on the output.

Przykład połączenia Gravity - LED Switch z płytką micro:bit od BBC.

Example of connection between Gravity - LED Switch and micro:bit board from BBC.

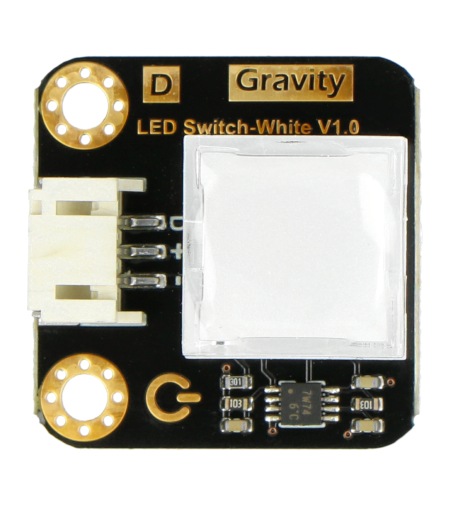

LED Switch pinout description from DFRobot

D - control pin, output signal port (low / high state)
"+" - VCC, power supply pin from 3.3 V to 5 V
"-" - GND, system ground pin

What is the Gravity connector?

Modules of Gravity series are equipped with PH2.0-3P connector, which allows for quick and convenient connection of elements. The Gravity system does not require soldering, and its use is particularly appreciated in projects based on prototyping. Gravity connector has 3 lines: GND - circuit ground, VCC - power pin and D/S - signal line.
