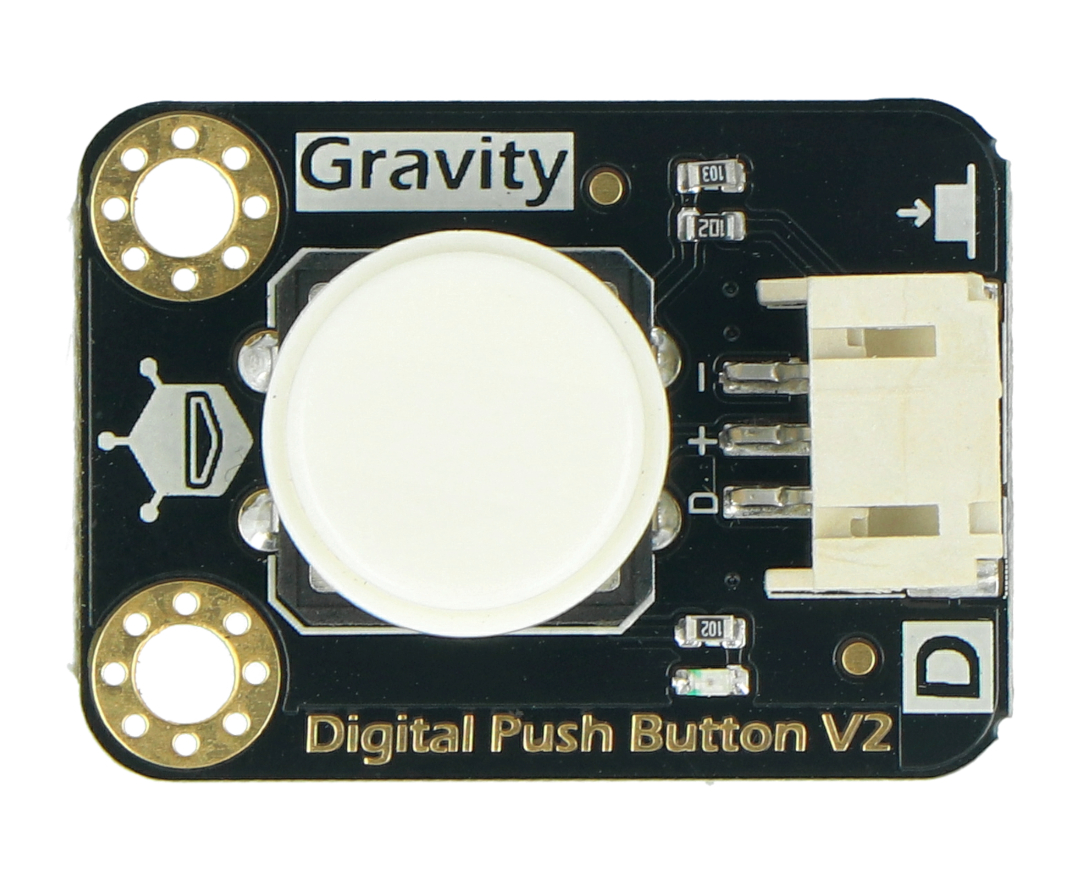

DFRobot Gravity - digital button Tact Switch - white
Digital monostable switch with 3-pin connector. It is powered with the voltage from 3.3 V to 5 V, it works with Arduino modules.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Digital monostable switch with 3-pin connector. It is powered with the voltage from 3.3 V to 5 V, it works with Arduino modules. The kit includes a cable adapted to DFRobot IO Expansion Shield.
The product is compatible with Arduino Sample code and detailed information can be found in the user guide. |
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

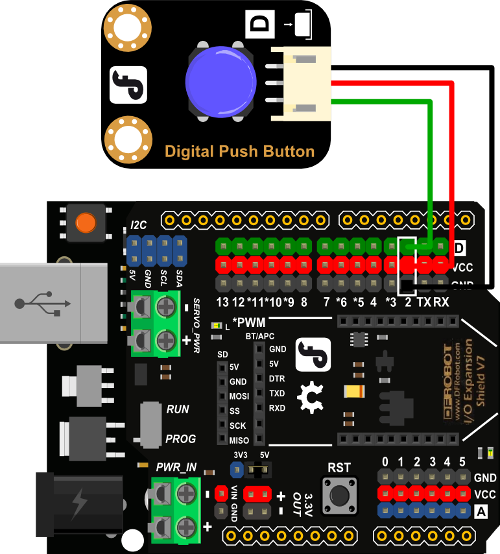

Example of connecting the sensor with Arduino.
Connection
The module works with any microcontroller with digital inputs, including Arduino. To read data, just connect the power supply and output pin to any input of the microcontroller, and correctly program the system to read its status, the manufacturer has prepared a sample programme for Arduino. .
Specification
- Supply voltage: from 3.3 V to 5 V
- Communications: digital signal 0/1
- Built-in LED
- Color: white
- Cable for connection with DFRobot IO Expansion Shield
Board sizes
- Board sizes: 22 x 30 mm
Board is suitable for connectors of DFRobot IO Expansion Shield for Arduino V7.1.

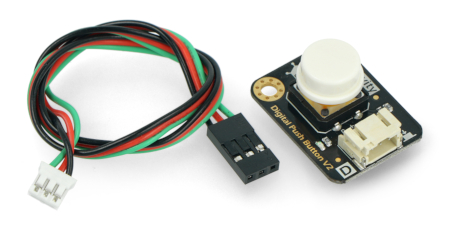

Set includes:
- Digital bistable switch
- Connecting cable
Useful links
| Name | Value |
|---|---|
| Switch - type2 | monostable |
| Switch - type | tact-switch THT |
| Switch - shape | round |
| Switch - backlight | no |
| Colour | white |
| Height | 10 mm |
| Width | 5.5 cm |
| Height | 6.1 cm |
| Depth | 2.4 cm |
| Weight | 0.012 kg |
