Product description: Luxonis Oak-1 PoE - AI set for image recognition
The Luxonis Oak-1 module in the PoE version is the power of artificial intelligence with a capacity of 4 trillion operations per second. Allows you to take full advantage of the Myriad X VPU with your platform of choice. It has an integrated 12 MPx IMX378 camera module with an image resolution of 4032 x 3040 px, which allows you to capture color images in 4K, 60 Hz. It is equipped with an Autofocus image zoom adjustment from 8 cm to infinity . He cooperates with, among others with Raspberry Pi 4B , Nvidia Jetson Nano Dev Kit , Google Coral Edge TPU and other popular platforms. Luxonis Oak-1 PoE uses Power-over-Ethernet technology for communication and power. Fully compliant with 802.3af and PoE Class 3 standards at 1000BASE-T (1Gbps) speeds, it comes with a microSD (uSD) card slot. A PoE switch (not included) is required to power the device via the Ethernet connector.
The camera module has been enclosed in an IP67 housing.

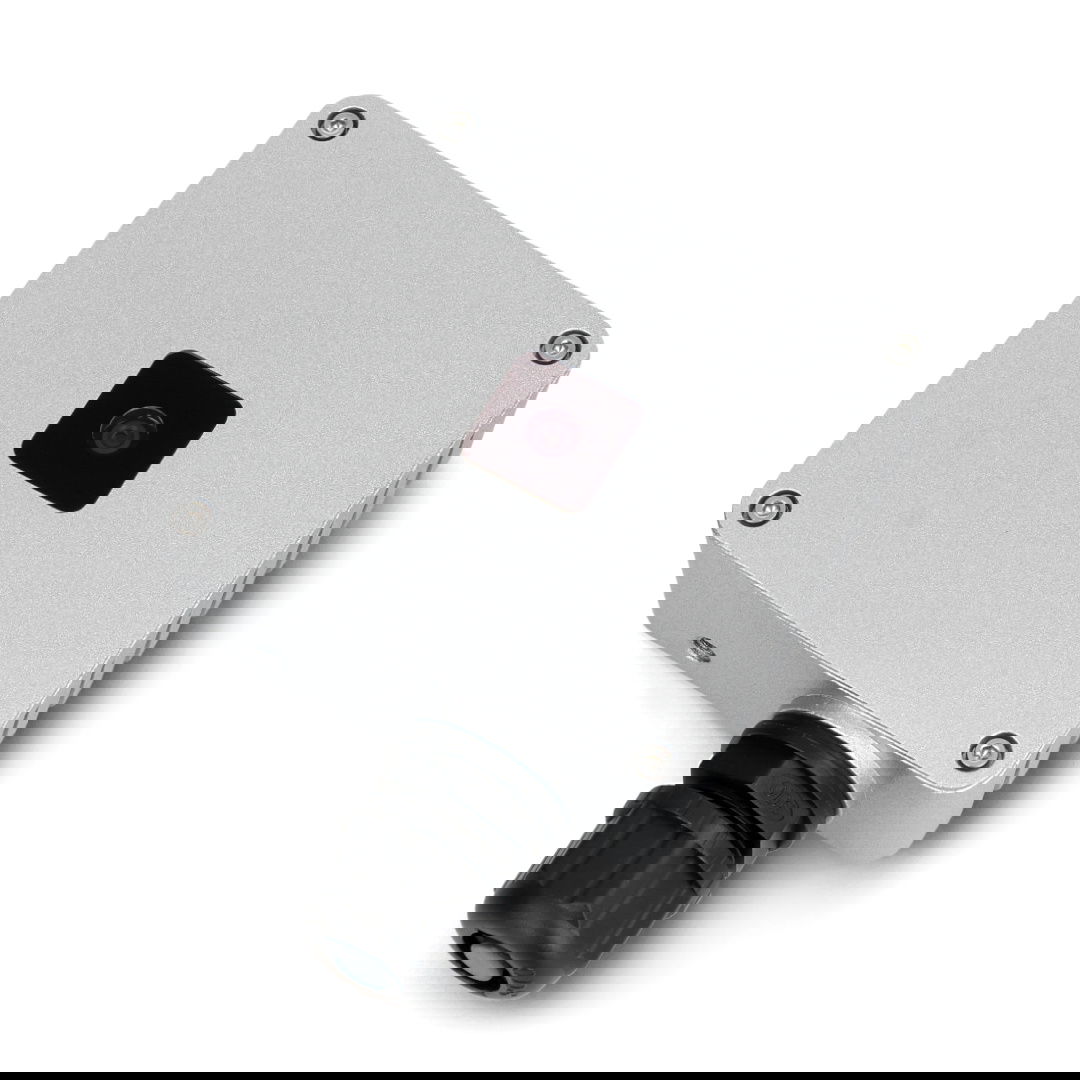

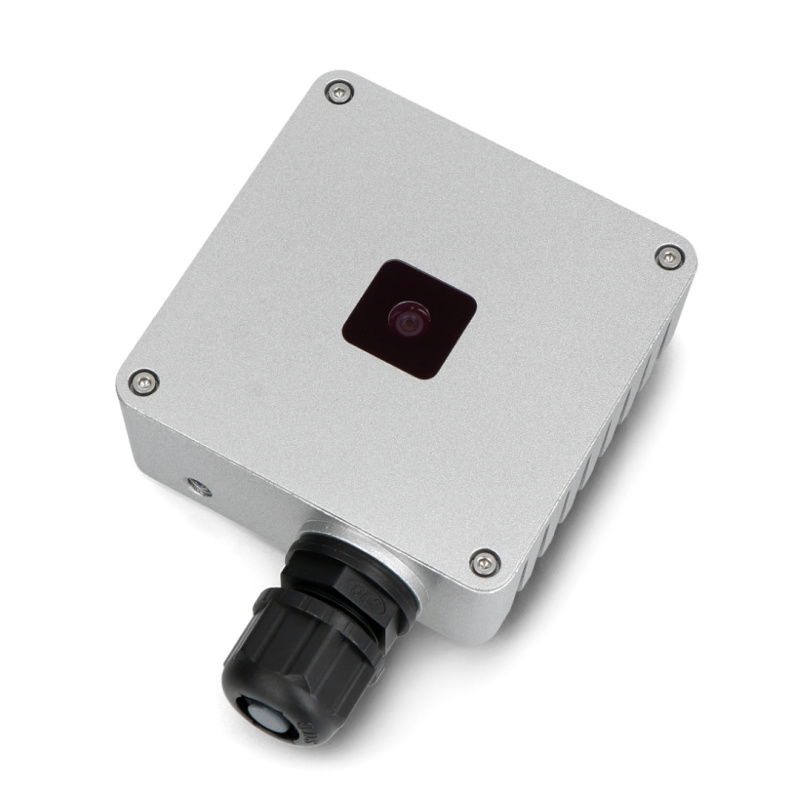

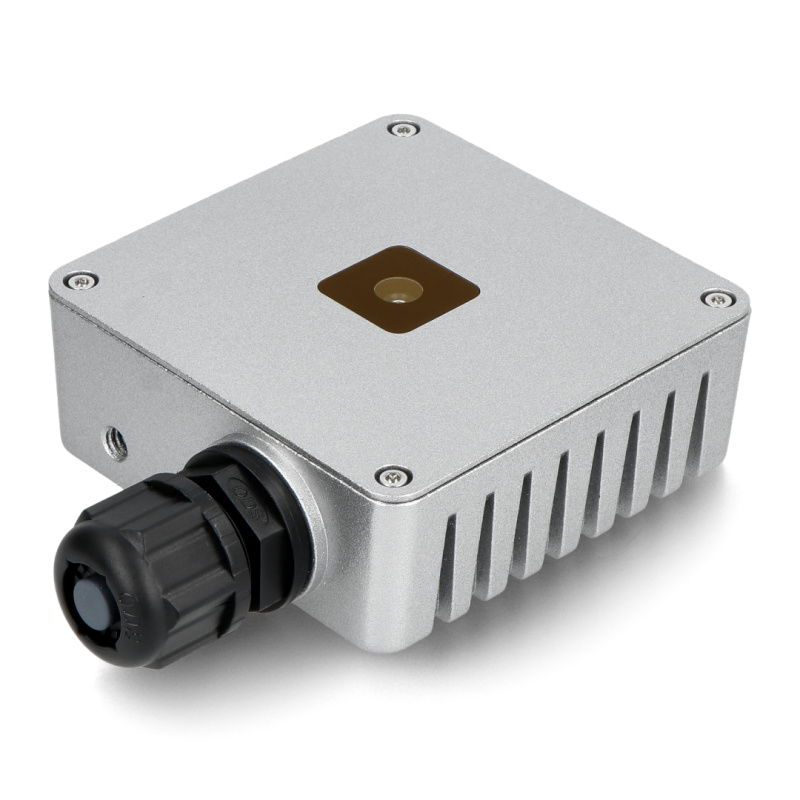

Luxonis Oak-1 PoE.
DepthAI platform - what is it?
The DeptAI platform was created by Luxonis to enable Spatial Artificial Intelligence (Spatial AI) to be embedded in products. DepthAI hardware, firmware, and software combine depth perception, object detection (neural inference), and object tracking , all of which can be easily leveraged using a Python API .
Special features of the Oak-1 PoE
- Built-in 12MP, 4K, 60Hz camera for color image and digital zoom
- PoE Power-over-Ethernet technology for communication and power

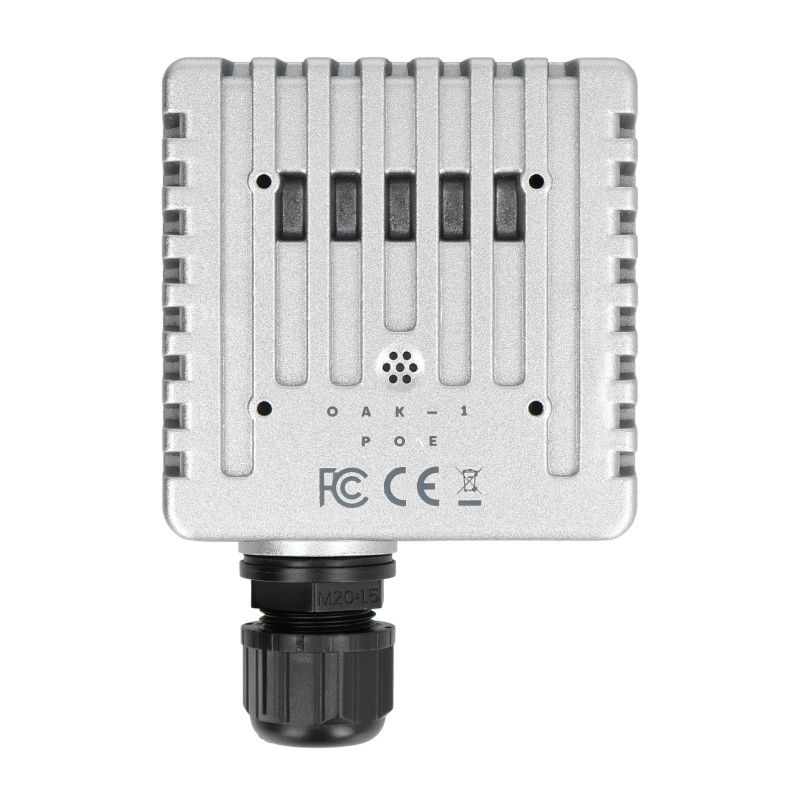

- Applied heat sink on the housing of the device
- The tightness of the housing complies with the IP67 standard
- 16GB internal memory (eMMC)
- 4 TOPS of processing power (1.4 TOPS for AI)
- Computer vision: warping/deforming, resizing, cropping, edge detection, feature tracking
- 120 fps stereo depth perception with filtering
- 2D and 3D object tracking
-
Maximum frame rate 60 fps
Technical specification Luxonis Oak-1 PoE
- Camera:
- sensor: IMX378
- maximum frame rate: 60 fps
- frame rate H.265: 30 fps
- resolution: 12 MP (4056 x 3040 px)
- view angle DFOV / HFOV / VFOV: 81° / 69° / 55°
- lens: 1/2.3''
- Autofocus: 8cm to infinity
- F-number: 2.0
- pixel size: 1.55 x 1.55 µm
- Dimensions: 82x114x32mm
- Weight: 294g

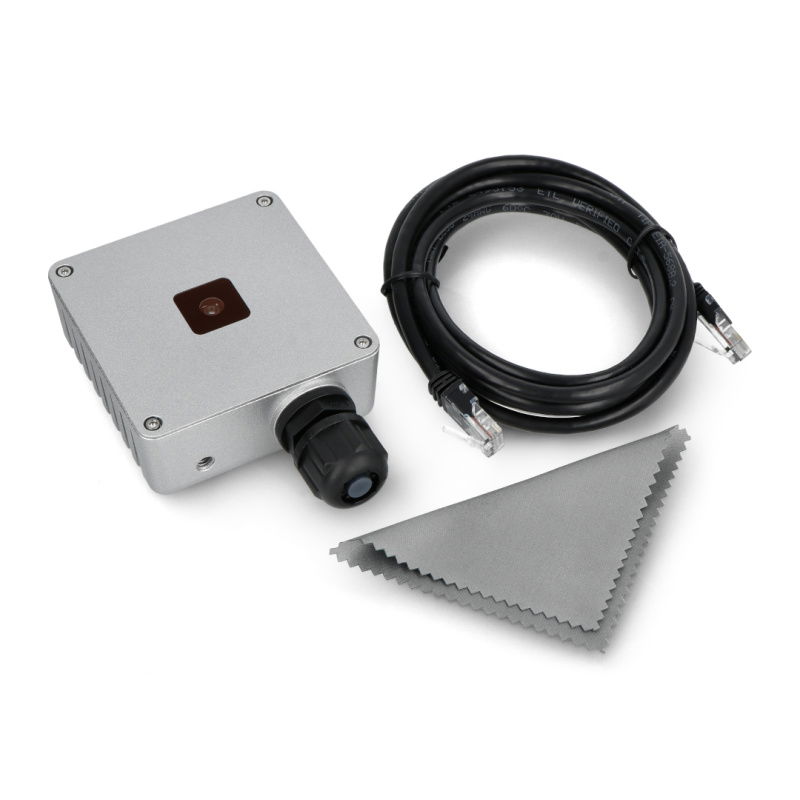

Kit contents
- Oak-1 PoE module
- Cable with Ethernet connector - 2 m long
- Cable choke
- Cleaning cloth
Kit contents.
| Specification and comparison Luxonis Oak-1 PoE, Oak-D-PoE, Oak-D-Pro PoE, Oak-D-S2 PoE | ||||
|---|---|---|---|---|
 |
 |
 |
 |
|
| Model | Luxonis Oak-1 PoE | Luxonis Oak-D PoE | Luxonis Oak-D-Pro PoE | Luxonis Oak-D-S2 PoE |
| RGB Camera | IMX378 | IMX378 | IMX378 | IMX378 |
| Type (Camera RGB) | Autofocus | Autofocus | Fixedfocus | Fixedfocus |
| Camera resolution (RGB) | 12 MPx (4056 x 3040 px) | 12 MPx (4056 x 3040 px) | 12 Mpx (4032 x 3040 px) | 12 Mpx (4032 x 3040 px) |
| Camera angle of view (RGB) | DFOV / HFOV / VFOV : 81° / 69° / 55° | DFOV / HFOV / VFOV: 81° / 69° / 55° | DFOV / HFOV / VFOV: 81° / 69° / 55° | DFOV / HFOV / VFOV: 81° / 69° / 55° |
| Camera focus (RGB) | from 8 cm to infinity | from 8 cm to infinity | from 50 cm to infinity | from 50 cm to infinity |
| Lens (RGB) | 1/2,3'' | 1/2,3'' | 1/2,3'' | 1/2,3'' |
| F-number (RGB) | 1.8 ±5% | 1.8 ±5% | 1.8 ±5% | 1.8 ±5% |
| Maximum number of frames per second (RGB) | 60 fps | 60 fps | 60 fps | 60 fps |
| Effective focal length (RGB) | 4.81mm | 4.81mm | 4.81mm | 4.81mm |
| Distortion (RGB) | < 1% | 1% | < 1.5% | < 1.5% |
| Pixel size (RGB) | 1.55µm x 1.55µm | 1.55µm x 1.55µm | 1.55µm x 1.55µm | 1.55µm x 1.55µm |
| Stereo Camera | doesn't have | OV9282 | OV9282 | OV9282 |
| Camera resolution (stereo) | - | 1Mpx (1250 x 800 px) | 1Mpx (1280 x 800 px) | 1 Mpx (1280 x 800 px) |
| Camera angle of view (stereo) | - | DFOV / HFOV / VFOV: 82° / 72° / 50° | DFOV / HFOV / VFOV: 89,5° / 80° / 55° | DFOV / HFOV / VFOV: 89,5° / 80° / 55° |
| Camera focus (stereo) | - | from 19,6 cm to infinity | from 19,6 cm to infinity | from 19,6 cm to infinity |
| Lens (stereo) | - | 1/4'' | 1/4'' | 1/4'' |
| F-number (stereo) | - | 2.0 ±5% | 2,0 ± 5% | 2,0 ± 5% |
| Maximum number of frames per second (stereo) | - | 120 fps | 120 fps | 120 fps |
| Effective focal length (stereo) | - | 2.35 mm | 2.35 mm | 2.35 mm |
| Distortion (stereo) | - | < 1% | < 1% | < 1% |
| Pixel size (stereo) | - | 3µm x 3µm | 3µm x 3µm | 3µm x 3µm |
| Spot projector | doesn't have | doesn't have | has | doesn't have |
| Coding | H.264, H.265, MJPEG — 4K/30 FPS, 1080 P/60 FPS | H.264, H.265, MJPEG — 4K/30 FPS, 1080 P/60 FPS | H.264, H.265, MJPEG - 4K/30 FPS, 1080P/60 FPS | H.264, H.265, MJPEG — 4K/30 FPS, 1080 P/60 FPS |
| Dimensions | 82 x 114 x 32 mm | 130 x 101 x 31 mm | 111 x 40 x 31,3 mm | 111 x 40 x 31,3 mm |
| Weight | 294 g | 361 g | 184 g | 184 g |
| Radiator | built-in | built-in | built-in | built-in |
