Quantum Tiny Linux development kit - SoM chip + Expansion board - Seeedstudio 114992462

Index: SEE-18788 EAN: 5904422369293

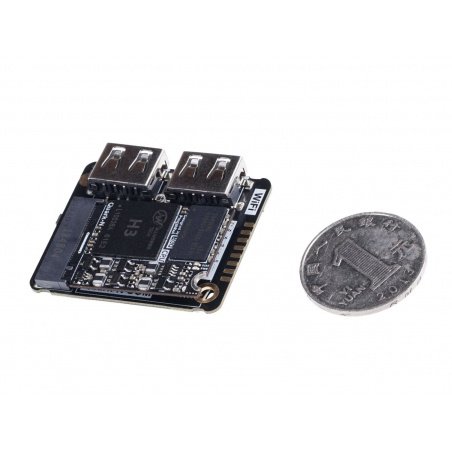

Quantum Tiny Linux is a software board that consists of the SoM Quark-N (System on Module) chip and the Atom-N carrier board. The SoM Quark-N is based on the Allwinner H3 chip, which includes a quad-core Cortex-A7 processor and an ARM Mali400 MP2 GPU. The SoM chip connects to the backplane via the M.2 interface. The SoM also includes the RTL8723BU chip responsible for wireless communication via WiFi and Bluetooth Low Energy. The development kit works with Linux systems.
€72.38
€58.85 tax excl.
Waiting time: approx. 6-8 weeks
Only on request
30-day returns
PayPal payment
Manufacturer: Seeedstudio

Product description: Quantum Tiny Linux Developer Kit - SoM chip + carrier board - Seeedstudio 114992462

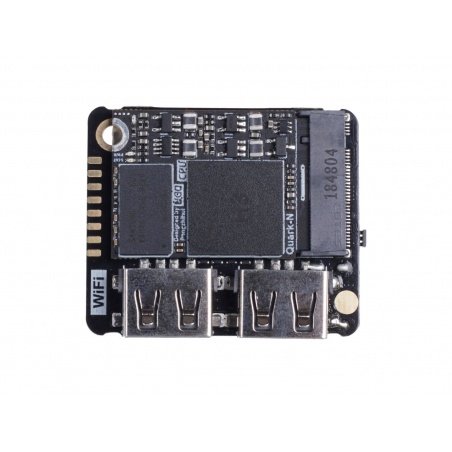

Quantum Tiny Linuxis a development board that consists of theSoM Quark-N(System on Module) chip and theAtom-Ncarrier board. The SoM Quark-N is based on theAllwinner H3chip, which includesa quad-coreCortex-A7 processor and anARM Mali400 MP2GPU. The SoM chip connects to the backplane via theM.2 interface. The SoM also includes theRTL8723BUchip responsible for wirelesscommunicationvia WiFi and Bluetooth Low Energy. The development kit works with Linux systems. It is used for projects such as personal or corporate server,smartvoice assistantand to createrobots. The module is equipped with additionalperipherals, which include: microphone,motion sensor(accelerometer and gyroscope), four functional buttons and IPS display.

Key features

  • Highly integrated quad-core Cortex-A7 processor
  • Carrier board with functional peripherals and interfaces, equipped with microphone,gyroscope, accelerometer, 4 buttons (GPIO-KEY, Uboot, Recovery, Reset) and TFT display
  • ARM - Linux system integration
  • WiFi + BLE wireless connectivity
  • Equipped with M.2 interface that allows you to design your own backplane
  • Pre-installed xrdp remote desktop server that allows you to control the monitor without using anHDMI cable
  • Wide range of uses, including as a personal server, corporate server or intelligent voice assistant

There is a detaileduser guideon themanufacturer's website. It contains instructions on how to use the product, as well as information about the software and hardware.

Technical specification of Quantum Tiny Linux - with SoM chip and carrier board

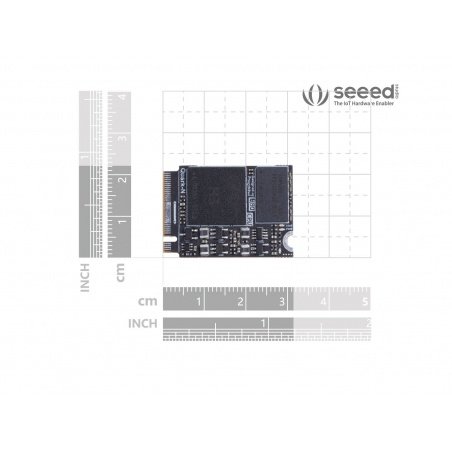

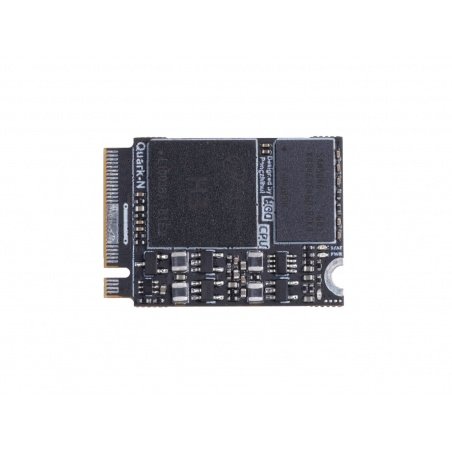

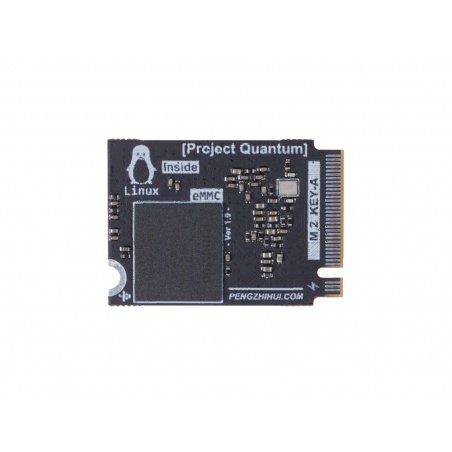

Quark-N SoM
Processor Quad-Core Cortex-A7 1 GHz
GPU ARM Mali400 MP2 GPU
RAM 512 MB LPDDR3
Onboard memory 16 GB eMMC
Interface Ethernet, SPI, I2C, UART, GPIO, MIC, LINEOUT
GPIO 26-pin connector - 2.0mm pitch,
includes USB OTG, USB-Serial, I2C, UART, SPI, I2S, GPIO
PCB 6 layer gold plated
Operating temperature From 0°C to 80°C
Dimensions 31 x 22 mm

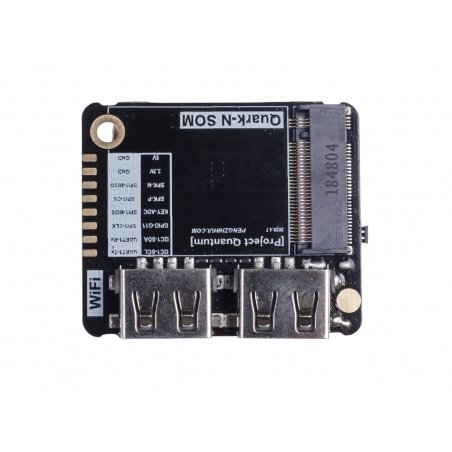

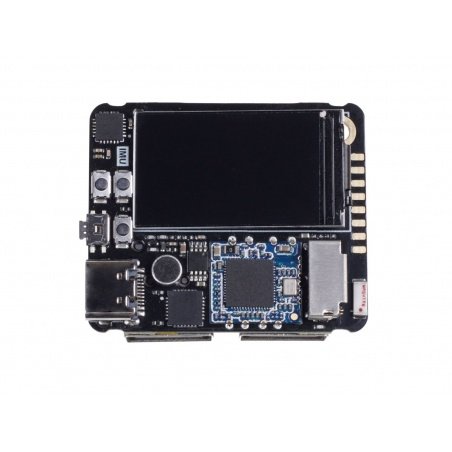

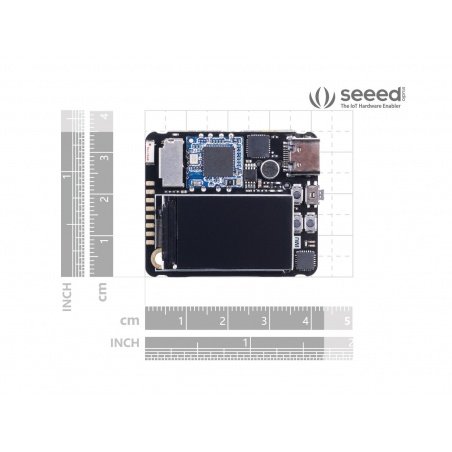

Atom-N carrier board
Slot M.2 to Quark-N interface
USB
  • USB 2.0 - 2 units
  • USB Type-C - 1
Wireless Connectivity
  • RTL8723BU:
  • Wi-Fi: IEEE 802.11 b / g / n 2.4 GHz
  • Bluetooth: BT V2.1 / BT V3.0 / BT V4.0
Built-in peripherals
  • Microphone - 1 pc
  • MPU6050 motion sensor (gyroscope + accelerometer) - 1
  • Buttons (GPIO-KEY, Uboot, Recovery, Reset) - 4 pcs.
  • TFT display - 1 pc.
External disk Slot for microSD card
Dimensions 40 x 35 mm
