Product description: RP2040-Tiny - board with RP2040 microcontroller - external USB module - Waveshare 24665
The RP2040-Tiny development board by Waveshare is a small module based on the popular RP2040 microcontroller, known from Raspberry Pi Pico . It has a dual-core Cortex M0+ processor with a maximum clock speed of 133 MHz , 264 kB of SRAM cache and 2 MB of external Flash memory. The module is equipped with an 8-pin FPC connector to which you can connect the included board with a USB Type-C port. The built-in USB1.1 interface allows communication with a computer as well as programming. The platform supports programming languages such as MicroPython and C/C++. The board is also equipped with an RGB LED - WS2812.

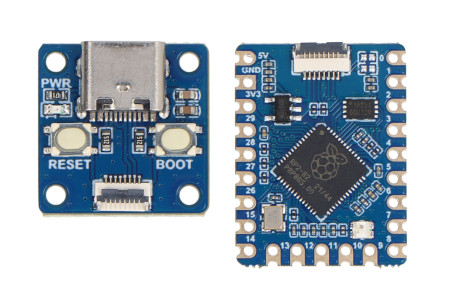

RP2040-Tiny - board with RP2040 microcontroller - external USB module - Waveshare 24665.

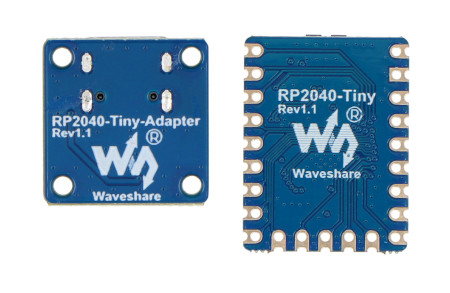

An additional 2 MB Flash memory chip expands the possible uses of the system.
Main features of the RP2040 microcontroller
- Dual-core processor - Cortex M0+ clocked at up to 133 MHz, provides high computing power.
- Large amount of operational memory - 264 kB of SRAM.
- External program memory - an additional 2 MB Flash memory chip expands the possible uses of the system.
- Many popular interfaces - including: I2C, SPI, ADC, PWM, UART, USB.
- 8 programmable inputs/outputs (PIO) - allow for easy integration of non-standard interfaces and acceleration of the processor.
- Bootloader - fast programming via USB using the drag-and-drop method.
- Built-in temperature sensor.
- Support for MicroPython and C/C++ languages.

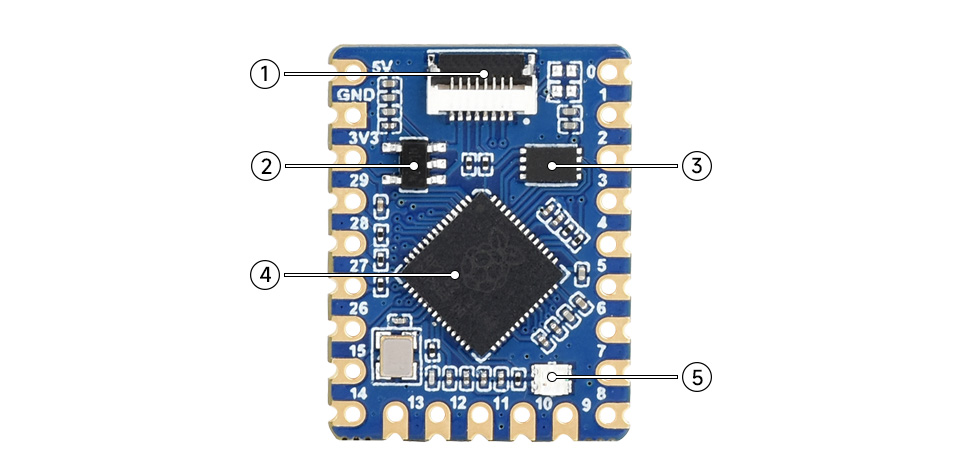

Arrangement of elements on the board
- 1 - FPC connector - 8-pin connector with a pitch of 0.5 mm for the optional USB module.
- 2 - RT9193-33 - voltage regulator with a capacity of up to 500 mA.
- 3 - W25Q16JVUXIQ - Flash memory chip with a capacity of 2 MB.
- 4 - RP2040 - main microcontroller with dual-core Cortex M0+ processor.
- 5 - WS2812 - RGB LED.
Elements on the board.

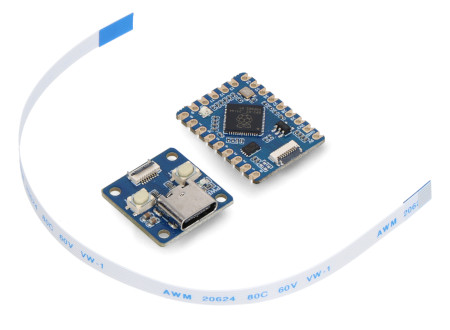

Elements included in the set.
Technical specifications of the module
- Built-in chip: RP2040
- Processor: dual-core ARM Cortex-M0+ 133 MHz
- SRAM memory: 264 kB
- Flash memory: 2 MB
- 20 GPIO pins
- Available interfaces: I2C, SPI, UART, ADC, PWM, USB1.1
- Built-in voltage regulator: RT9193-33
- FPC connector: 8-pin, 0.5 mm pitch
- USB module: Type C socket
- Buttons: Boot and Reset
- RGB LED: WS2812
- Pins made using Castellated Holes technology
- Dimensions: 23.5 x 18 mm
Set contents
- 1x RP2040-Tiny - board with RP2040 microcontroller - external USB module - Waveshare 24665
- 1x Adapter with USB Type-C port
- 1x FPC tape, 8-pi, 15 cm long
