Product description: RP2040-Tiny - board with RP2040 microcontroller - FPC connector to USB1.1 - Waveshare 24664
RP2040-Tiny Development Board from Waveshare is a small board based on the RP2040 microcontroller, also found in the popular Raspberry Pi Pico . It has two Cortex M0+ cores, clocked at up to 133 MHz , 264 kB of SRAM and 2 MB of Flash memory . It can communicate via many popular interfaces, e.g. I2C, SPI, UART, PWM. The module is equipped with an 8-pin FPC connector, intended for connecting an optional module with a USB Type-C socket. The USB1.1 interface built into the system allows communication with computers as well as programming the board. The platform supports programming languages such as MicroPython and C/C++. The board is also equipped with an RGB LED - WS2812.

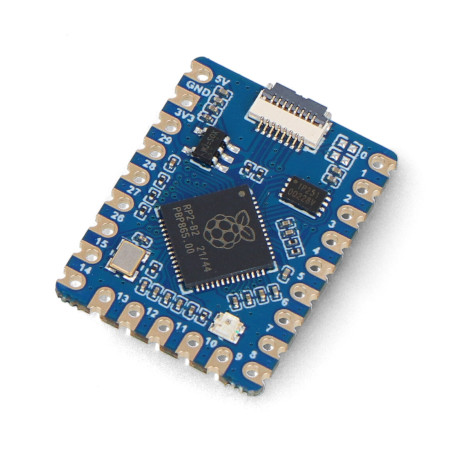

RP2040-Tiny - board with RP2040 microcontroller - FPC connector to USB1.1 - Waveshare 24664.

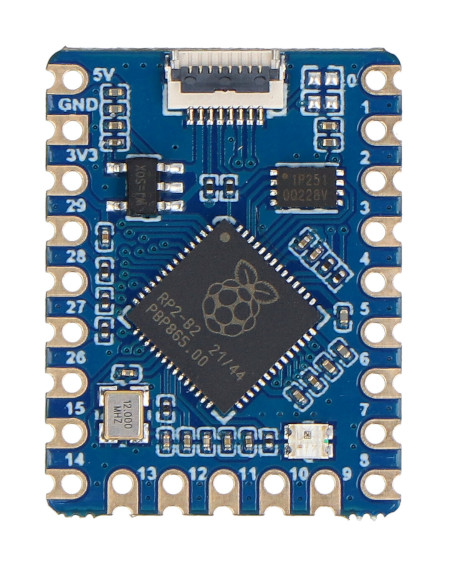

RP2040-Tiny - board with the RP2040 microcontroller.
Main features of the RP2040 microcontroller
- Dual-core processor - Cortex M0+ clocked at up to 133 MHz, provides high computing power.
- Large amount of operational memory - 264 kB of SRAM.
- External program memory - an additional 2 MB Flash memory chip expands the possible uses of the system.
- Many popular interfaces - including: I2C, SPI, ADC, PWM, UART, USB.
- 8 programmable inputs/outputs (PIO) - allow for easy integration of non-standard interfaces and acceleration of the processor.
- Bootloader - fast programming via USB using the drag-and-drop method.
- Built-in temperature sensor.
- Support for MicroPython and C/C++ languages.
The optional USB Type-C board is not included and must be purchased separately.
Arrangement of elements on the board
- 1 - FPC connector - 8-pin connector with a pitch of 0.5 mm for the optional USB module.
- 2 - RT9193-33 - voltage regulator with a capacity of up to 500 mA.
- 3 - W25Q16JVUXIQ - Flash memory chip with a capacity of 2 MB.
- 4 - RP2040 - main microcontroller with dual-core Cortex M0+ processor.
- 5 - WS2812 - RGB LED.
Elements on the board.

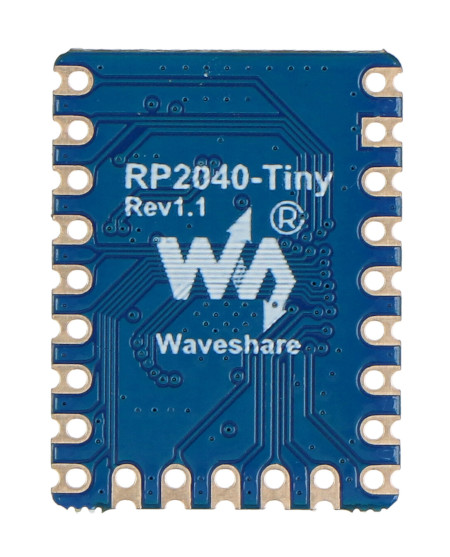

Equipped with the RP2040 system.
Technical specifications of the module
- Built-in chip: RP2040
- Processor: dual-core ARM Cortex-M0+ 133 MHz
- SRAM memory: 264 kB
- Flash memory: 2 MB
- 20 GPIO pins
- Available interfaces: I2C, SPI, UART, ADC, PWM, USB1.1
- Built-in voltage regulator: RT9193-33
- FPC connector: 8-pin, 0.5 mm pitch, intended for a module with a USB Type-C socket
- RGB LED: WS2812
- Pins made using Castellated Holes technology
- Dimensions: 23.5 x 18 mm
