Description

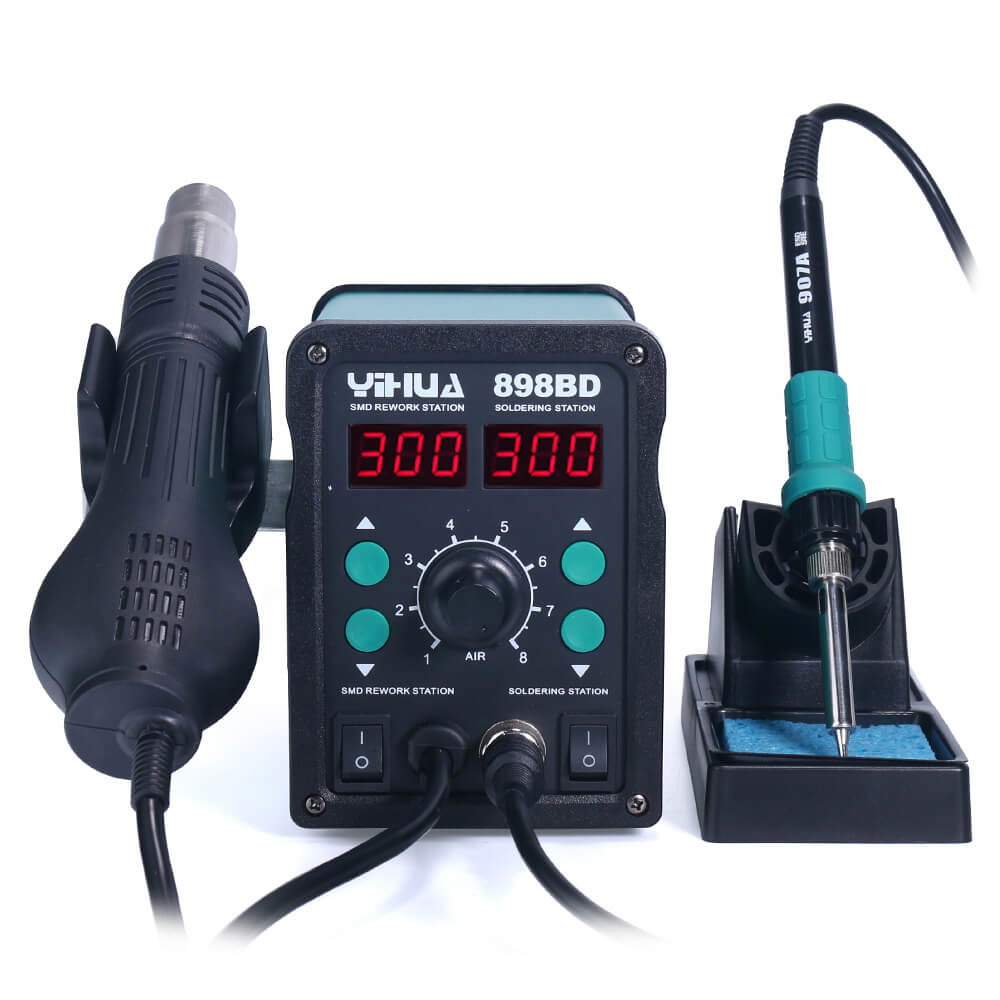

Station Yihua 898BD has two LED displays, which can read the temperature of hot air and flask soldering iron. Temperature adjustment is done using buttons, airflow with knob.
The device has sensor in the mount that, when putting off flask, the station cooles the heating element.
Stable and effective airflow is provided through a fan located in the flask. The fan is driven by a brushless motor, which provides a much higher durability and reliability of the device.
Specification
- Supply voltage: 230 V / 50 Hz (network)
- Power: 700 W
- The control is performed using PID controller
- Protection ESD Safe
- Automatic cooling of the heating elements after station's shutdown
- The station has an ergonomical body
Hotair Soldering Iron
- Adjustable temperature of hot air from 100 °C to 480 °C
- Temperature stability +/-1 °C
- LED display
- Temperature setting with buttons
- Smoothly adjustable airflow via knob
- Airflow up to 120 l/min
- The venting is provided through a fan located in the knob
Grotto Soldering Iron
- The flask 907A
- Regulation of the soldering tip temperature from 200 °C to 480 °C
- Capacity: 50 W
- Temperature stability: +/- 2 °C
- The potential between tip and ground: up to 2 mV
- The resistance between tip and ground: 2 Ohm
Includes:
- Station Yihua 898BD
- Stand for the flask hotair
- Set of nozzles:
- round with a diameter of 6 mm
- round with a diameter of 9 mm
- square 12x12 mm
- Stand for the grotto flask along with a cleaning sponge
- The grotto flask 907 A with a tip T-I
- A gripper for lifting chips
|
First run
Note Heating elements (heaters) and the tips are not subject to warranty either expressed or implied, and replacing them is chargeable. |
