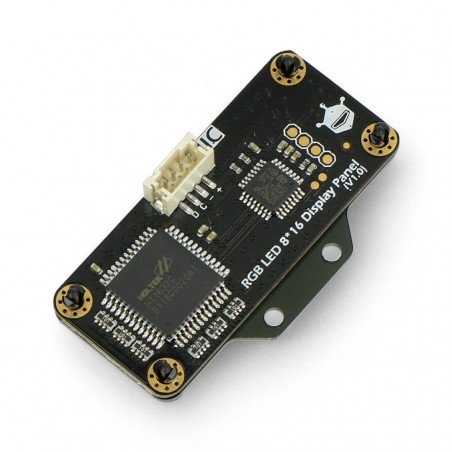

DFRobot Gravity - panel with matrix 8x16 128 LED I2C

Index: DFR-12048
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

Monochrome matrix 8 x 16 LED with RGB diodes, it can display 7 colors and 20 standard images, supports image identified by the user. It can display numbers, letters and symbols. It is controlled using the I2C interface.

€20.70 -25%
€15.53
€12.62 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Description

Monochrome matrix 8 x 16 LED with RGB diodes, it can display 7 colors and 20 standard images, supports image identified by the user. It can display numbers, letters and symbols. It is controlled using the I2C interface.

The product is compatible with Arduino

Sample code and detailed information can be found in the user guide.

Example of connecting the sensor with Arduino.

Specification

  • Supply voltage: 5 V
  • Working current: 150 mA
  • Communication: I2C interface Gravity
  • LED-backlight: adjustable (RGB 7 colors)
  • Display colors:
    • red
    • green
    • yellow
    • blue
    • purple
    • blue
    • white
  • Operating temperature: 0 °C to 70 °C
  • Dimensions: 62 x 27 mm

Screen - type Matryca LED
Screen - diagonal 2.6 ''
Screen - interface GPIO
Screen - touch no
Screen - resolution 8x16 px
