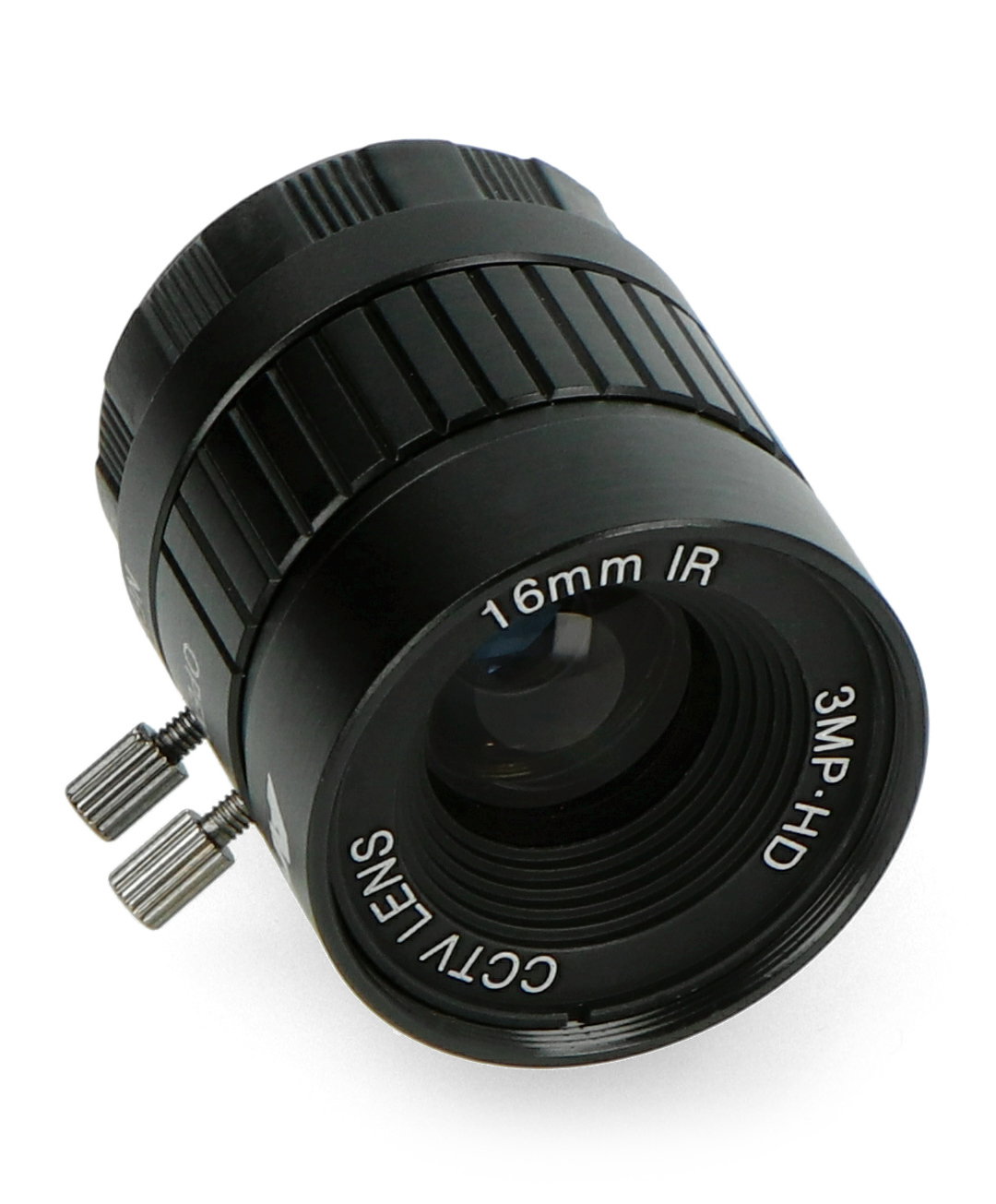

Description: CS Mount 16mm lens - manual focus adjustment - for Raspberry Pi camera - Arducam LN050.
The lens cooperates with officialRaspberry Pi HQ cameraand ArduCam cameras from Sony IMX477/577 series. It is equipped with16 mmfocal length, manual focus and adjustable aperture. The viewing angle is24°. The lens dimensions areΦ 30 x 29 mm.
Lens specifications
- Model: CS2316ZM02
- Optical format: 1/2.3"
- Focal length: 16 mm
- Aperture: max F1.2
- Angle of vision: 24° (H) for Raspberry Pi HQ, 13° for Raspberry Pi V1 / V2
- Focus type: manual
- Mounting: CS mount
- Rear focal length: 7.53 mm
- M.O.D. (minimum distance from object): 0,2 m
- Dimensions:Φ 30 x 29 mm
- Weight: 45 g
