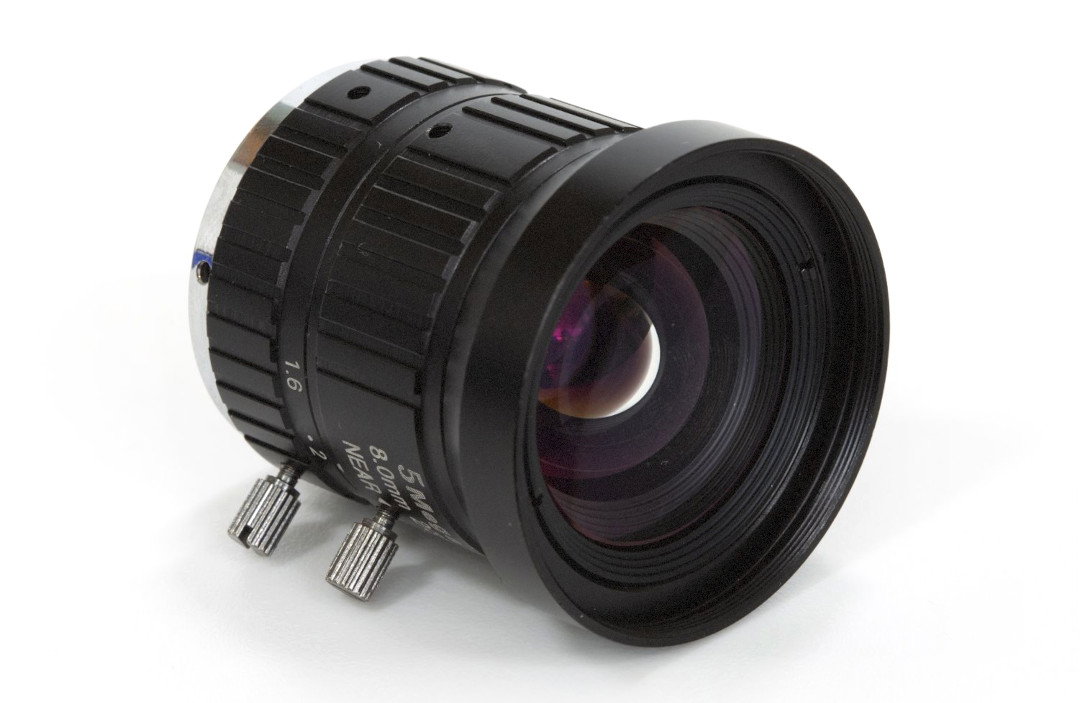

Product description: C-Mount 8 mm lens - ArduCam LN043

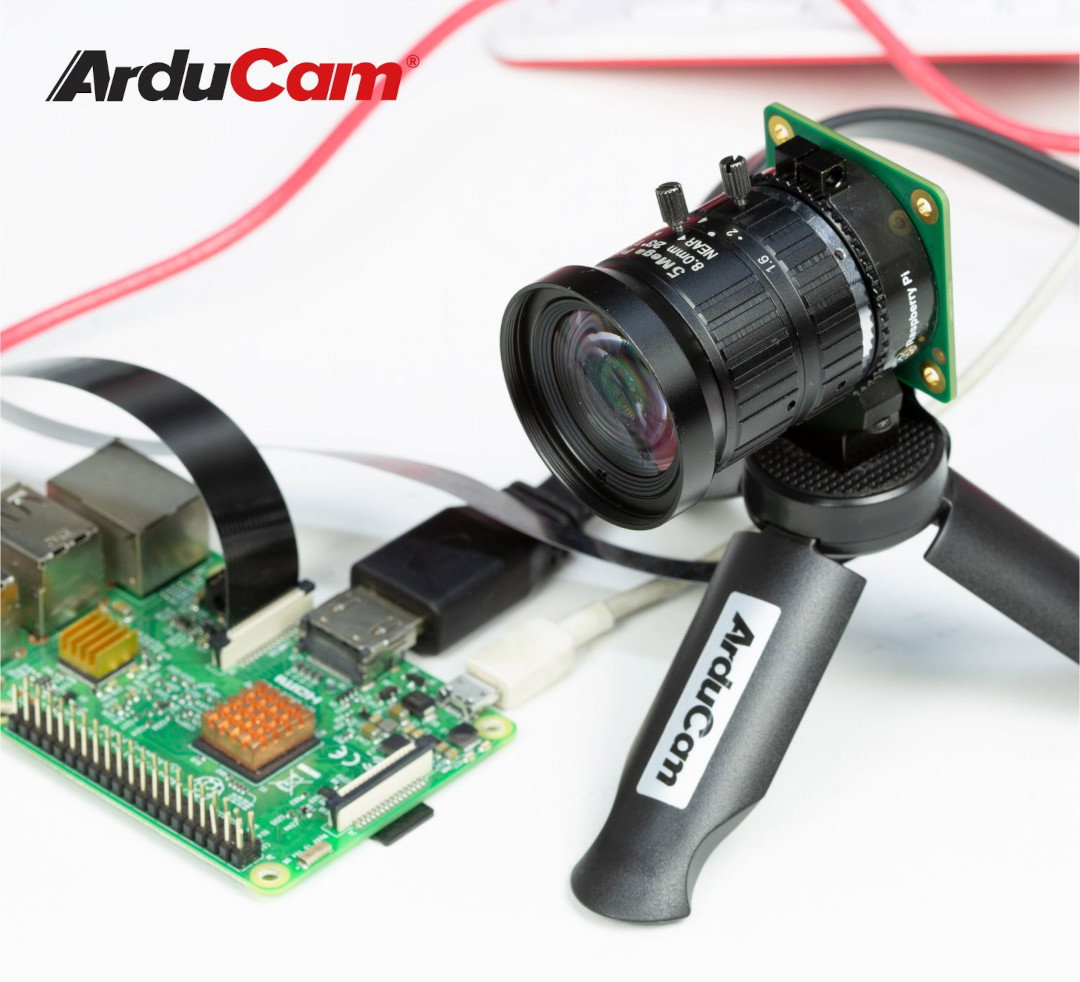

A lens made by ArduCam with a focal length of 8 mm and a C-Mount type mounting method, which allows it to be connected together with a high quality Raspberry Pi HQ camera. The focus of the image is adjusted manually. The subjects are equipped with an adjustable aperture from F1.6 to F16. The angle of view is 58.4° x 44.6°, 44° with the 1/2.3" format of the Raspberry Pi HQ camera.
C-Mount variable aperture lens for Raspberry Pi HQ camera.
C-Mount variable aperture lens from F1.6 to F16 for Raspberry Pi HQ camera. The official HQ camera and Raspberry Pi minicomputer can be purchased separately.ArduCam lens specification
- Model: C1508ZM04
- Optical format: 2/3"
- Focal length: 8 mm
- Aperture: adjustable from F1.6 to F16
- Viewing angle: 58.4° x 44.6°, 44° with 1/2.3" format of Raspberry Pi HQ camera
- Focus type: manual
- Rear focal length: 17.53 mm
- Mounting: C-Mount
- Minimum distance to the object: 0.15 m
- Dimensions: Φ39 x 41 mm
- Weight: 100.7 g
