Product description: Wide angle lens M12 1/2,3'' with adapter for Raspberry Pi HQ camera - Arducam LN064
Wide angle lens from Arducam, model M23325H12. The angle of view is 120°, the format is 1/2.3", and the focal length is 3.25 mm. The lens is designed for cameras with M12 mount. The kit also includes an adapter that allows the lens to be used with the official Raspberry Pi Foundation HQ camera and other C/CS mount cameras.
Other lenses for Raspberry Pi cameras are also available in our store's assortment - check them out.

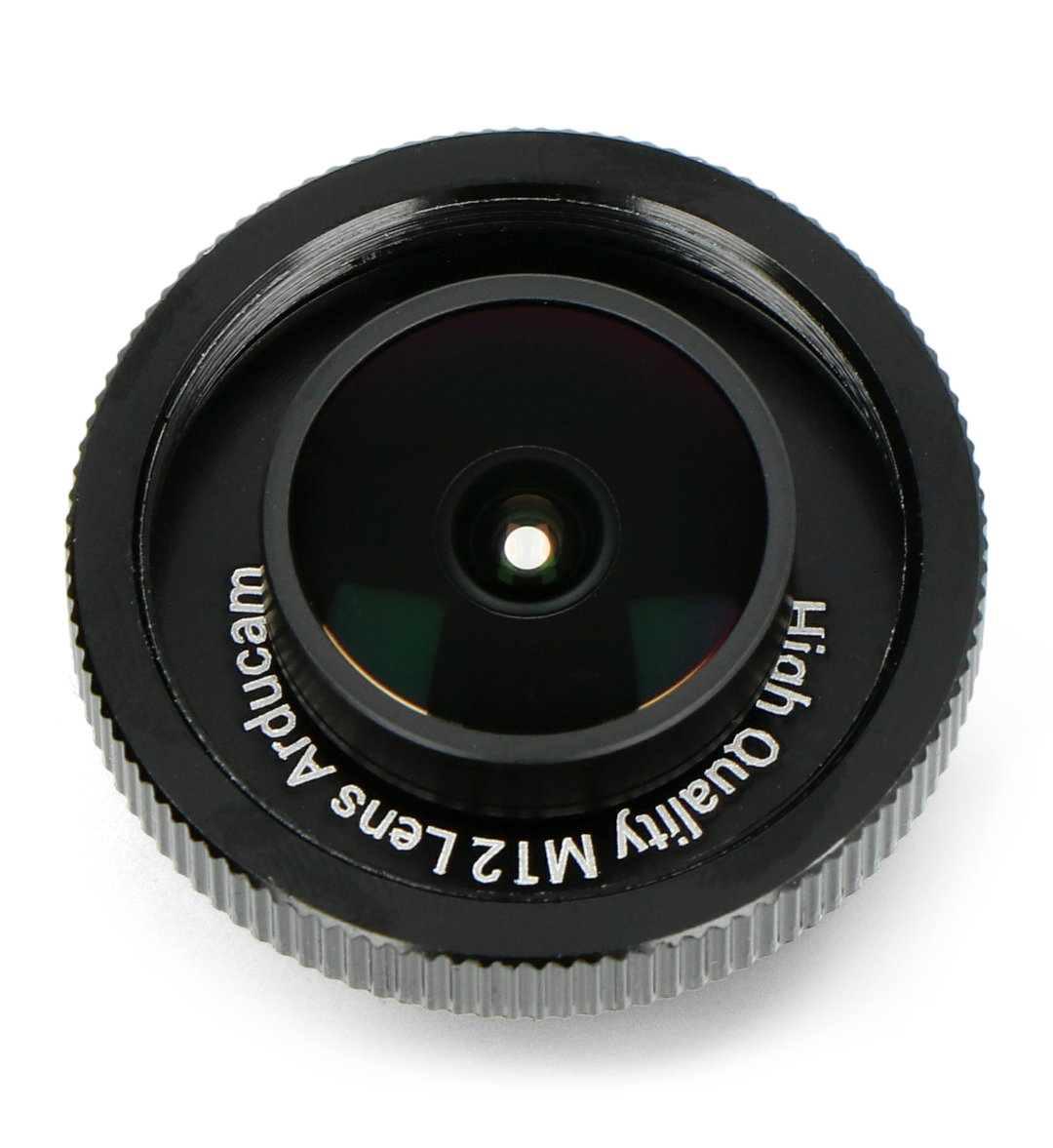

Wide angle lens M12 for Raspberry Pi cameras.

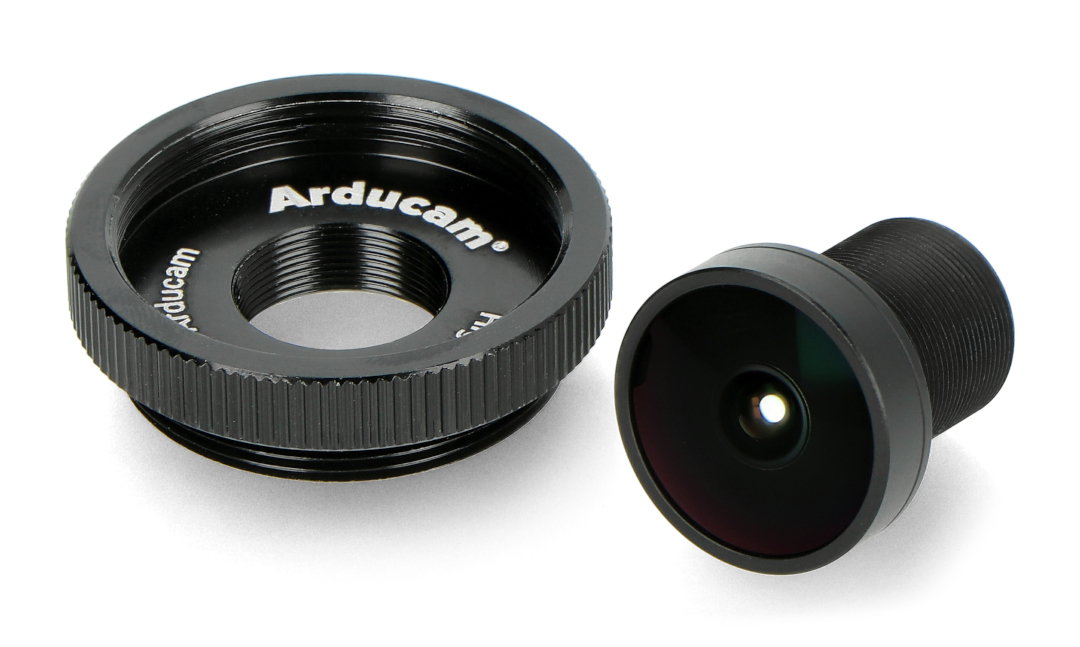

M12 lens with adapter.Specifications of the wide angle lens
- Model: M23325H12
- Format: 1/2.3"
- Focal length: 3.23 mm
- Aperture: F2.2
- FoV (D / H / V): 150° / 120° / 83°
- Mount: M12
- Rear focal length: 4.1 mm
- MOD: 0.3 m
- Weight: 5 g
- Compatible lens mounts:
- 12mm (have 2/3 space, the lens is relatively stable)
- 8.5mm (they have 1/3 of the space, the lens is relatively stable)
- 6mm (almost completely disassembled)
Contents of the kit
- Lens M12 1/2.3" 120°
- Adapter M12
