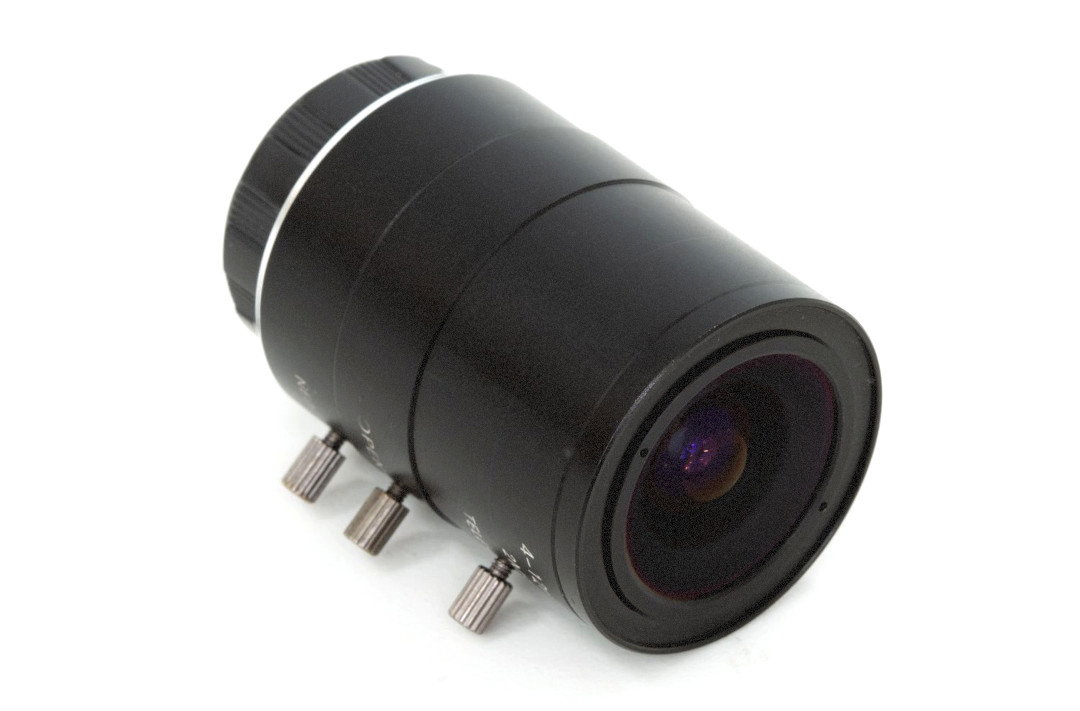

Product description: C-Mount 4 - 12 mm zoom lens - ArduCam LN048
ArduCam varifocal lens with adjustable range from 4 mm to 12 mm. Equipped with a C-Mount connector, with which it can be connected to the official Raspberry Pi HQ camera. The image focus is manually adjustable. The angle of view is 87.2° x 39° or 80° x 32° with the 1/2.3" format of the Raspberry Pi HQ camera.

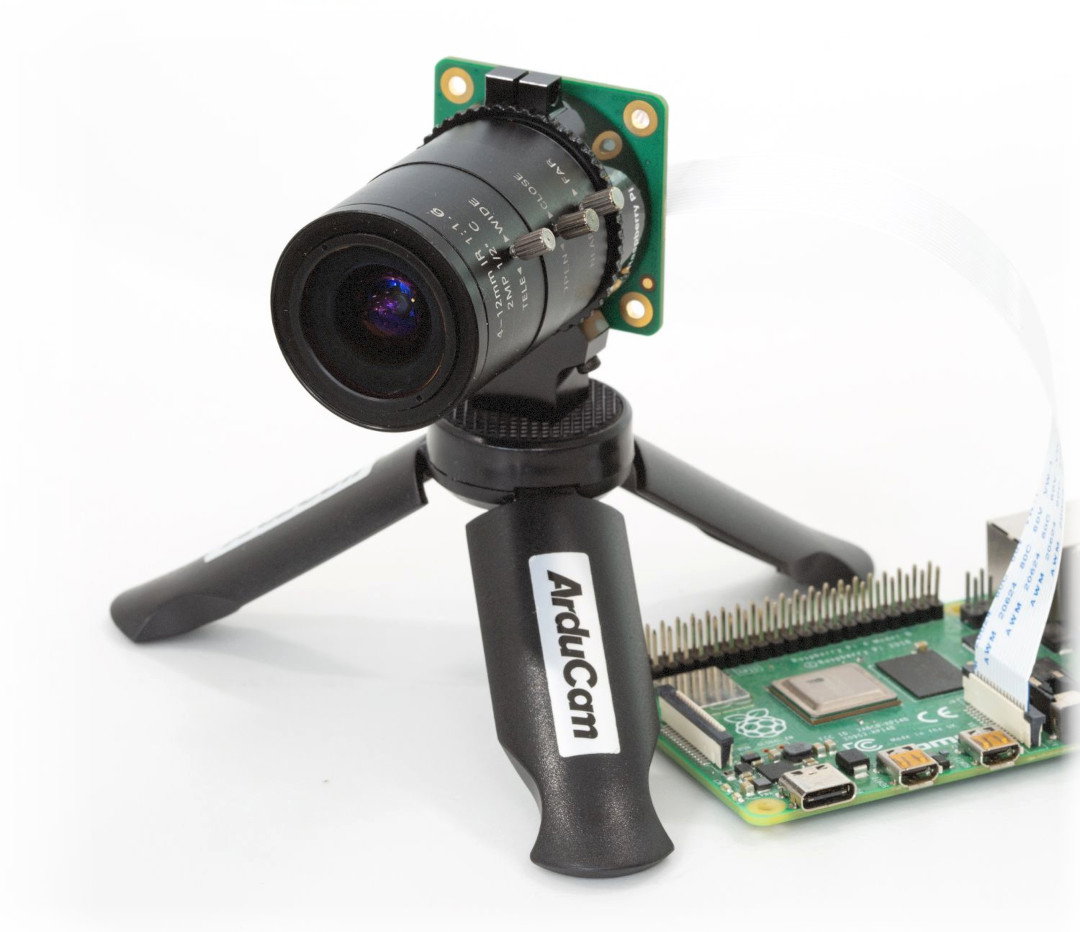

C-Mount zoom lens for Raspberry Pi HQ camera.
Adjustable focal length lens from 4mm to 12mm designed for the Raspberry Pi HQ camera. The official HQ camera and Raspberry Pi minicomputer can be purchased separately.
ArduCam lens specification
- Model: C2004ZM12
- Optical format: 1/2"
- Focal length: from 4 mm to 12 mm
- Aperture: F1:16
- Viewing angle: 87.2° x 39° or 80° x 32° with 1/2.3" format of Raspberry Pi HQ camera
- Focus type: manual
- Rear focal length: 17.53 mm
- Mounting: C-Mount
- Minimum distance from the object: 0.2 m
- Working temperature: from -20°C to 50°C
- Dimensions: Φ33 x 43 mm
- Weight: 67.5 g
