M40320M06S Lens Specifications
- Format: 1/4"
- Focal length: 3.2 mm
- Focal length converted to 35 mm format: 34.6 mm
- Viewing angle for sensor: 1/3.2" (D/H/V): 85° / 63° / 51°
- Viewing angle for Raspberry Pi 1/4" camera: 63°
- Focal ratio: 2.0
- Mounting: M12
- Minimum distance from the object: 0.3 m
- IR filter: 650
- Handle height: 7 mm
- Dimensions: 14 x 12 mm
- Weight: 3 g

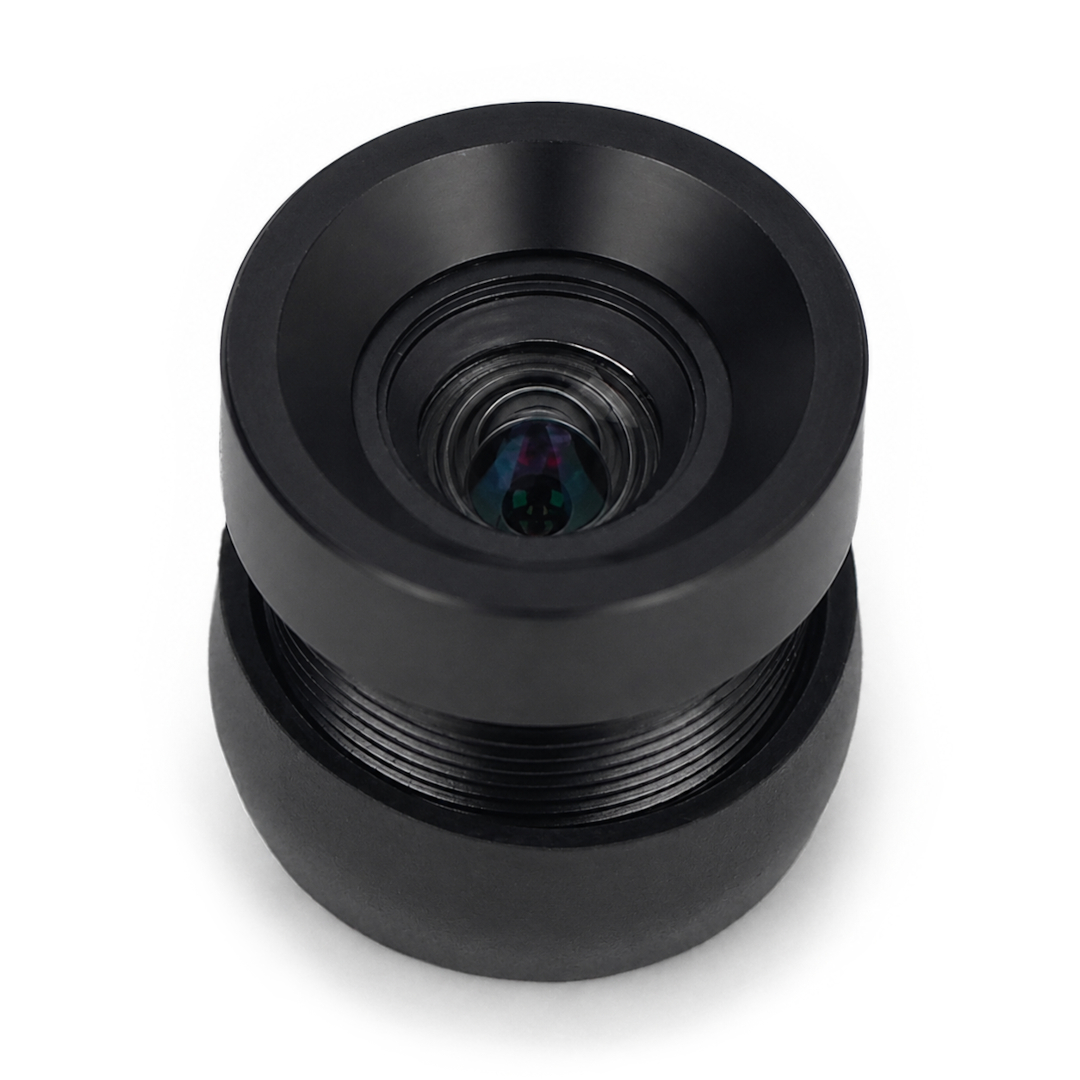

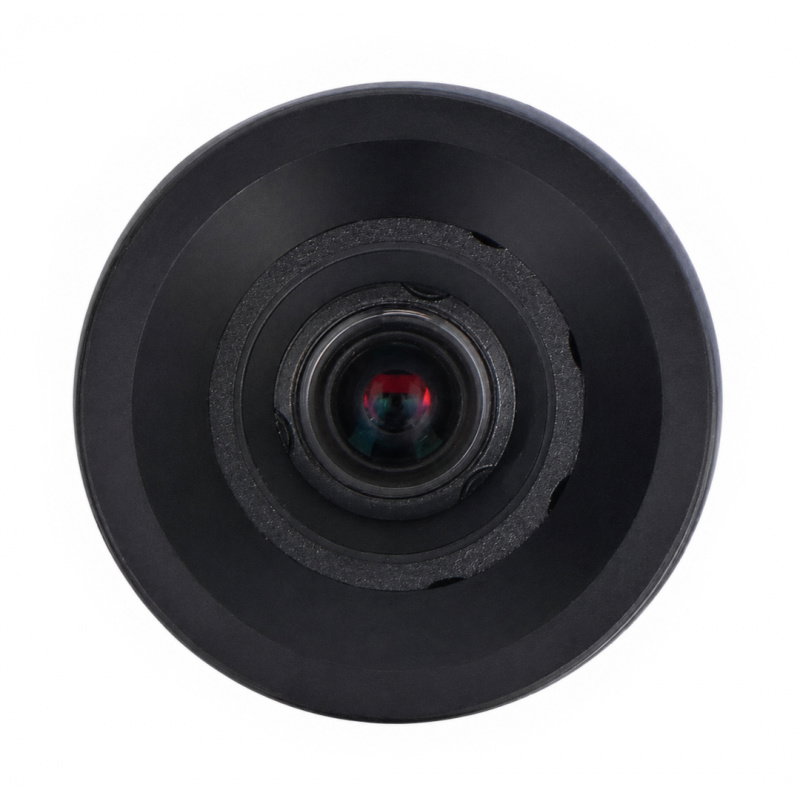

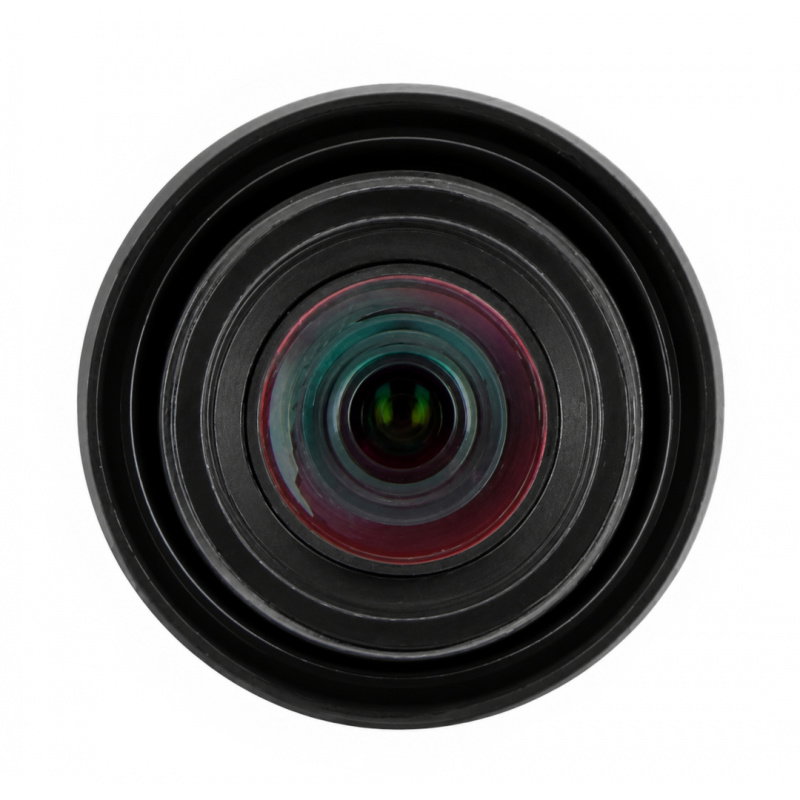

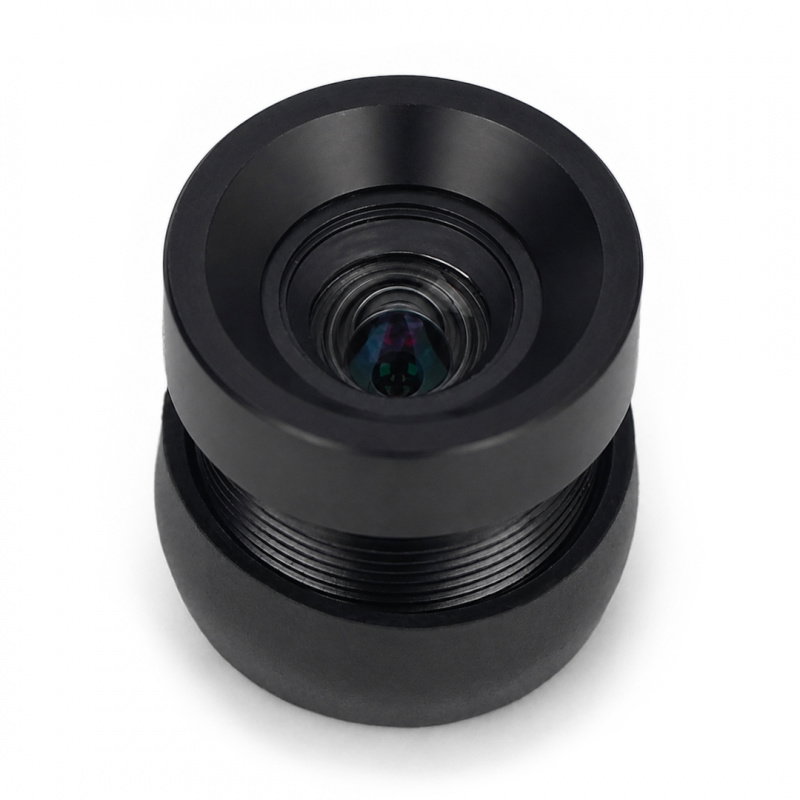

M40320M06S M12 Low Distortion Lens - for ArduCam Cameras - ArduCam LN015
The ArduCam M40320M06S is a 3.2mm focal length lens with a 1/2-inch optical format. It's fully compatible with Raspberry Pi and Arduino camera modules that use M12 threads. This makes lens changes easy and requires no specialized tools.
The focal length of the ArduCam M40320M06S module is 3.2 mm, and the viewing angle of the lens paired with the Raspberry camera is 63°.
ArduCam lens for Raspberry Pi cameras
Thanks to the use of high-quality lenses, the M40320M06S lens's optics do not compromise the quality of recorded video. This allows it to be used in projects requiring accurate color and shape reproduction of the captured image.
The Raspberry camera paired with the ArduCam M40320M06S lens is perfect for building industrial monitoring networks, industrial automation, and nature observation.
