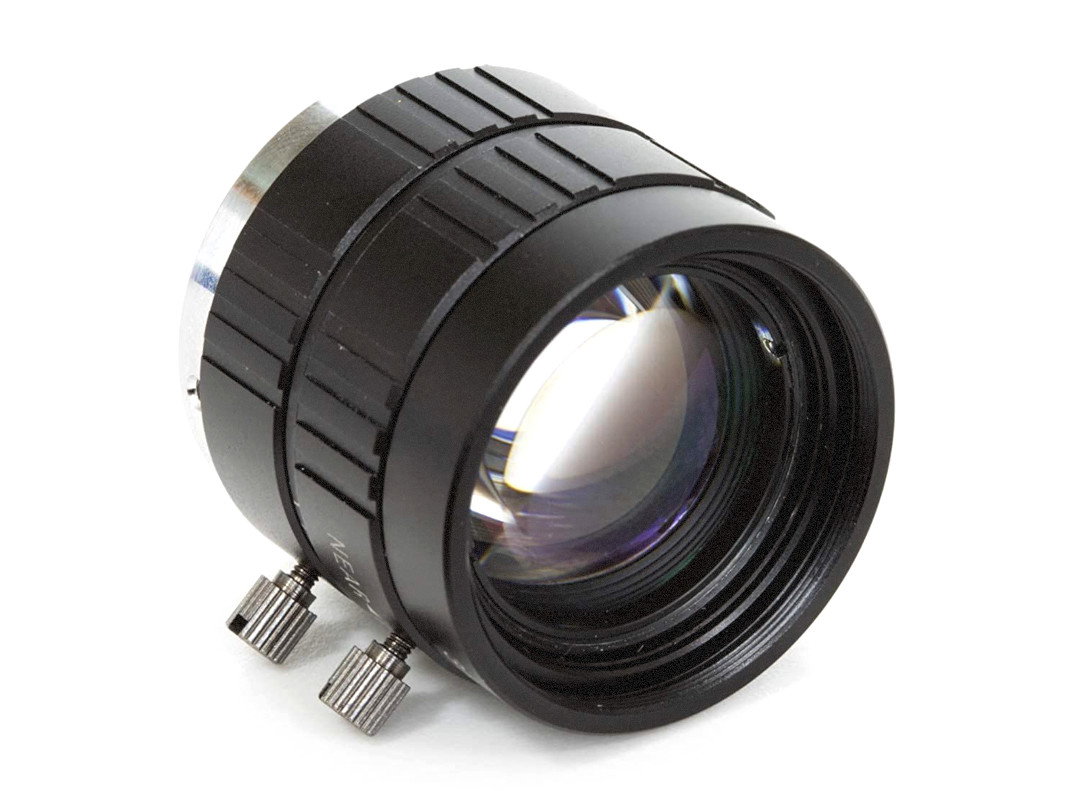

Product description: C-Mount 35mm lens - ArduCam LN047

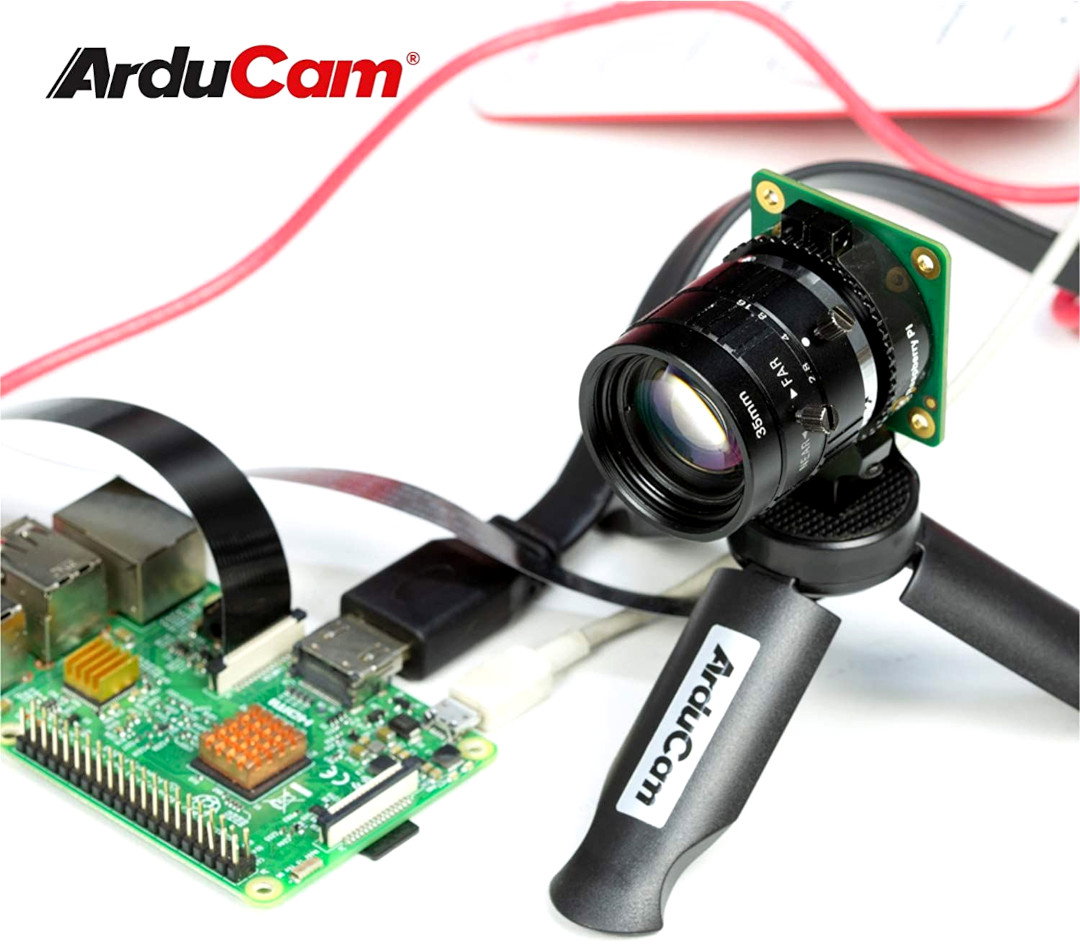

ArduCam lens designed to work with high quality Raspberry Pi HQ camera. It is equipped with 16mm focal length and C-Mount type mounting method, by which it is connected to the camera. Image sharpness is adjusted manually. The lens is equipped with adjustable iris from F1.7 to F16. The viewing angle of the lens is 14.3° x 10.8°, 10° with the 1/2.3" format of the Raspberry Pi HQ camera.
C-Mount variable iris lens for Raspberry Pi HQ camera.
Lens with adjustable aperture from F1.7 to F16 for Raspberry Pi HQ camera. The official HQ camera and Raspberry Pi minicomputer can be purchased separately.ArduCam lens specification
- Model: C1535ZM01
- Optical format: 2/3"
- Focal length: 35mm
- Aperture: adjustable from F1.7 to F16
- Viewing angle: 14.3° x 10.8°, 10° with 1/2.3" format of Raspberry Pi HQ camera
- Focus type: manual
- Rear focal length: 17.53 mm
- Mounting: C-Mount
- Minimum distance to the object: 0.2 m
- Dimensions: Φ35 x 30 mm
- Weight: 75.5 g
