M12 16MP 105° 3,56mm lens for the Raspberry Pi HQ Camera - Waveshare 23966

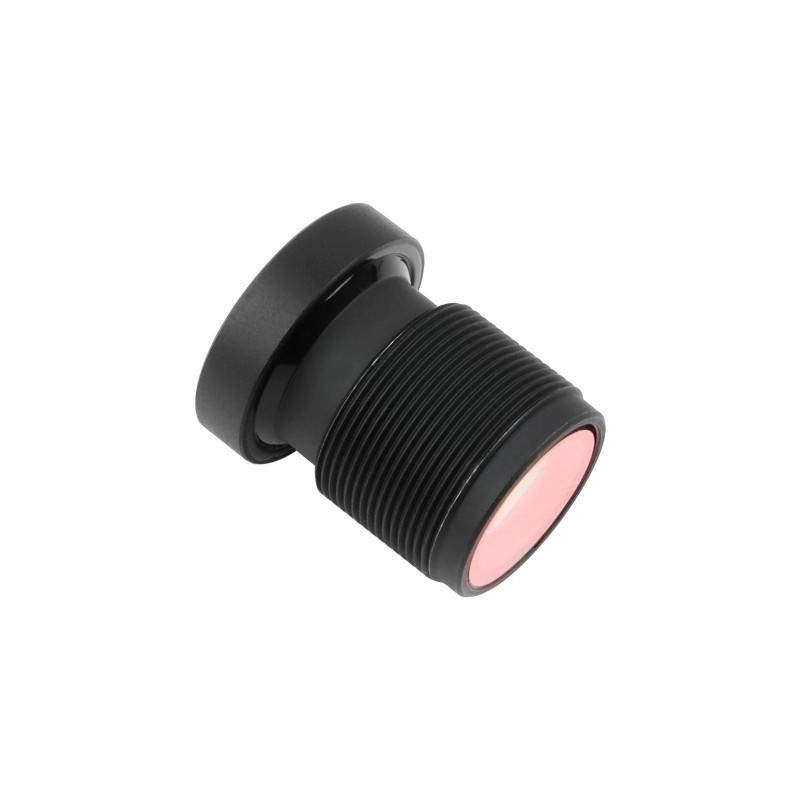

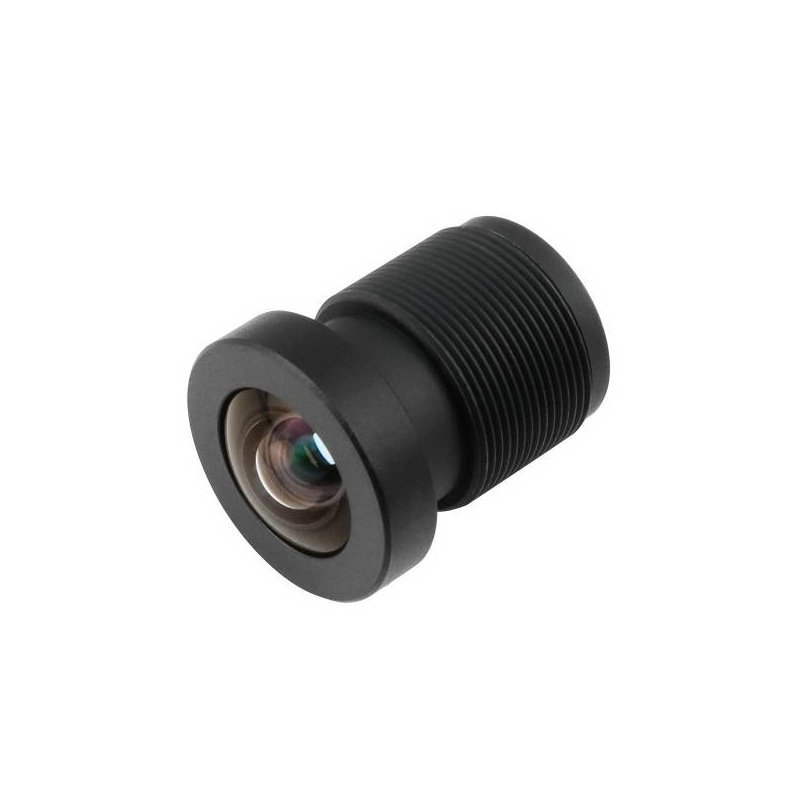

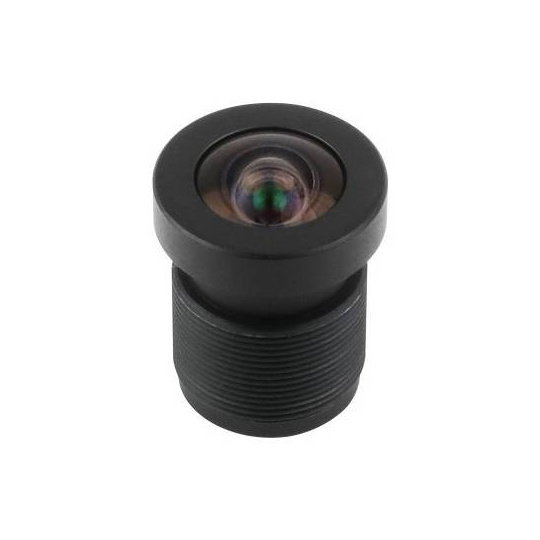

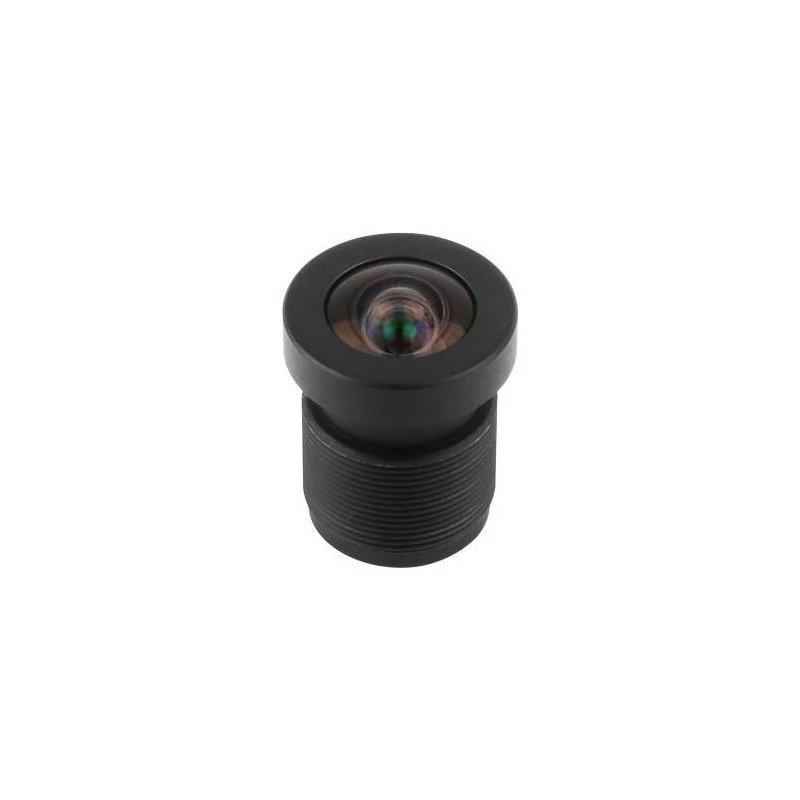

A high-quality M12 lens with a 16MP resolution and a wide 105° viewing angle , designed to work with camera modules like the Raspberry Pi HQ Camera M12 . The 3.56mm focal length provides a wide image while maintaining good detail.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: M12 16 MPx 105° 3.56 mm lens for Raspberry Pi HQ Camera - Waveshare 23966
With its 16MP resolution and wide 105° field of view, the Waveshare WS1053516 lens is ideal for surveillance systems, robotics , and IoT projects. The standard M12 mount ensures compatibility with many camera modules , including the Raspberry Pi High Quality Camera M12 . The 4G3P + IR optical design minimizes distortion ( <-17.6% ) and improves image quality even in challenging lighting conditions. Its low weight and compact size make the lens ideal for mobile projects.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
Technical specifications of the lens
- Model: WS1053516
- Resolution: 16 MPx
- Focal length: 3.56 mm
- Aperture: F/2.5
- Field of View (FOV): diagonal: 105°; horizontal: 88°; vertical: 70°
- Distortion: < -17.6%
- Back focal distance: 5.92 mm
- Optical design: 4G3P + IR
- Mounting: M12 x P0.5
- Compatibility: Raspberry Pi HQ Camera M12 and other M12 modules
- Operating temperature: -30°C to 70°C
- Image format: 1/2.3"
- Weight: 7 g
Kit contents
| Name | Value |
|---|---|
| Resolution | 16 MPx |
| Camera - IR filter | Yes |
| Camera - lens | M12x0.5 |
| Camera - format | 1/2,3 '' |
| Width | 7 cm |
| Height | 11 cm |
| Depth | 2 cm |
| Weight | 0.007 kg |
