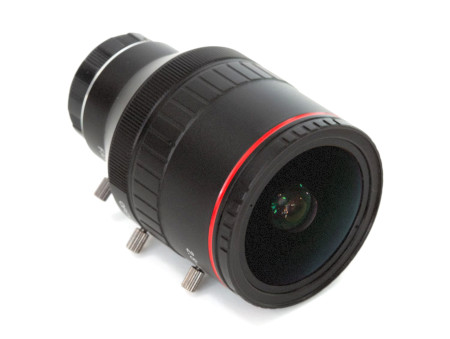

Product description: C-Mount zoom lens 2.8 - 12 mm - ArduCam LN049
Lens with variable focal length from 2.8 mm to 12 mm, equipped with C-Mount connector designed mainly for use with HQ camera for Raspberry Pi. The image focus is manually adjustable. The viewing angle is 125° x 43° or 120° x 38° with the 1/2.3" format of the Raspberry Pi HQ camera.

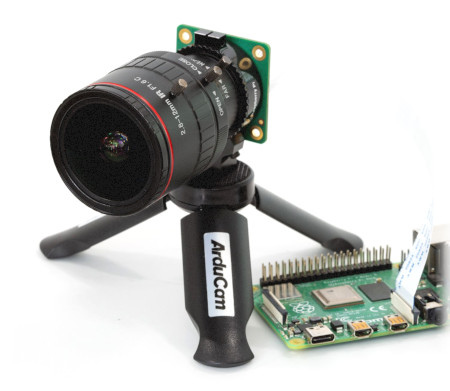

C-Mount zoom lens for Raspberry Pi HQ camera.
Adjustable focal length lens from 2.8mm to 12mm for Raspberry Pi HQ camera. The official HQ camera and Raspberry Pi minicomputer can be purchased separately.ArduCam lens specification
- Model: C20280M12
- Optical format: 1/2"
- Focal length: from 2.8 mm to 12 mm
- Aperture: F1:16
- Viewing angle: 25° x 43° or 120° x 38° with 1/2.3" format of Raspberry Pi HQ camera
- Focus type: manual
- Rear focal length: 17.53 mm
- Mounting: C-Mount
- Minimum distance from the object: 0.3 m
- Working temperature: from -20°C to 50°C
- Dimensions: Φ44.5 x 58.5 mm
- Weight: 140 g
